MAIN MENU

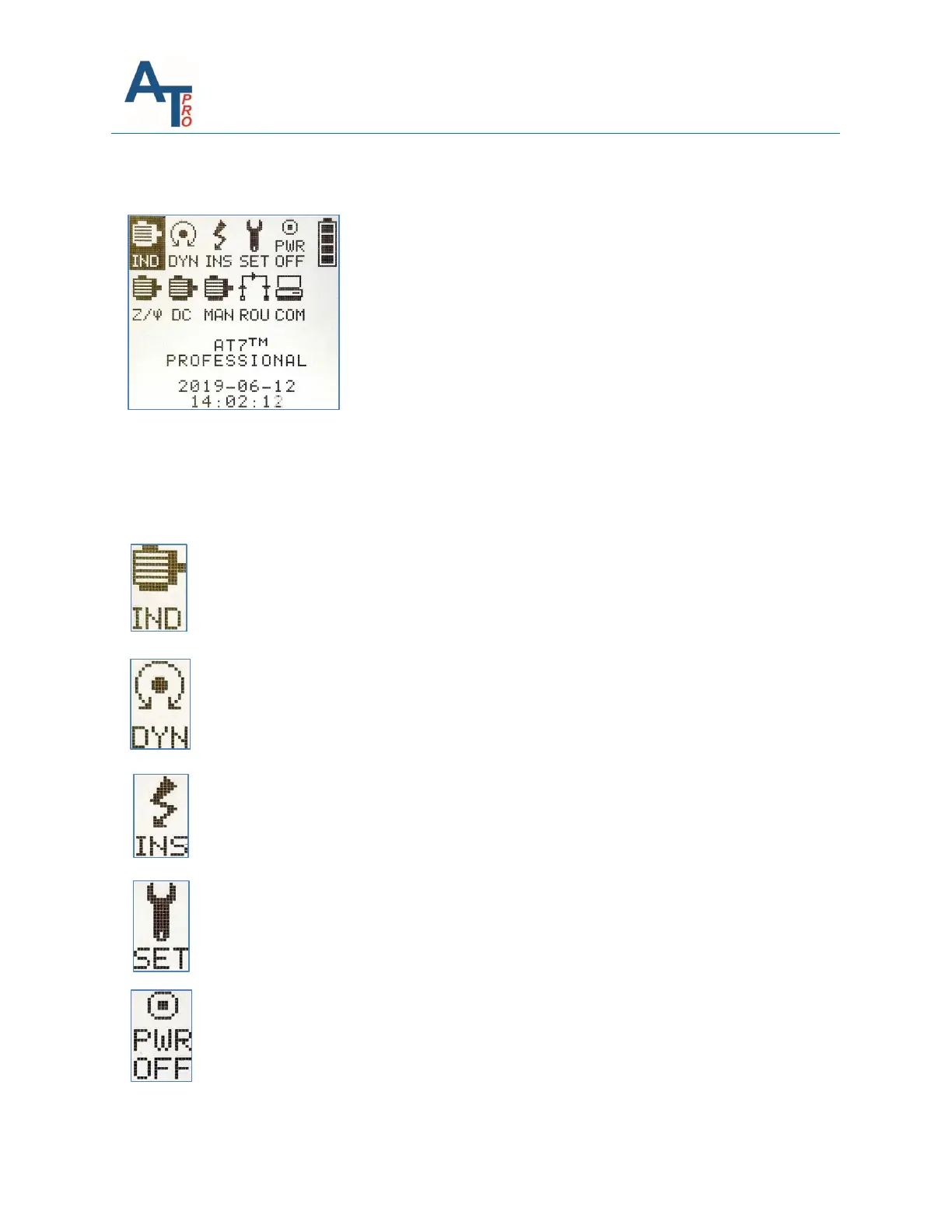

The main menu provides the icons to access the various tests and
other functions of the ALL-TEST PRO 7™ instruments.
The LCD display provides the screens, instructions and displays
necessary to perform deenergized tests on:
*ALL-TEST PRO 7 PROFESSIONAL REQUIRED
IND – Performs tests on AC three phase squirrel cage induction motors with rated voltage
less than 1000 V. It performs the Static, Dynamic, Insulation resistance to ground, DF &
capacitance of winding tests.
DYN – Directly accesses the dynamic tests on AC three phase squirrel cage induction
motors with supply voltage less than 1000 V. This test requires manually rotating the shaft.
This test should only be performed directly on the motor.
INS – Directly accesses the Insulation resistance to ground test.
SET- provides direct access to view or delete previously stored test data, set the date and
time of the instrument or make manual measurement of R, L, & .
PWR OFF – Provides the selection to turn the AT7 off. If the instrument idles for 5 minutes
or longer, it will power off automatically.
To Next Page
