MAN MENU – 1 PHASE AC TEST AND ROTOR TEST

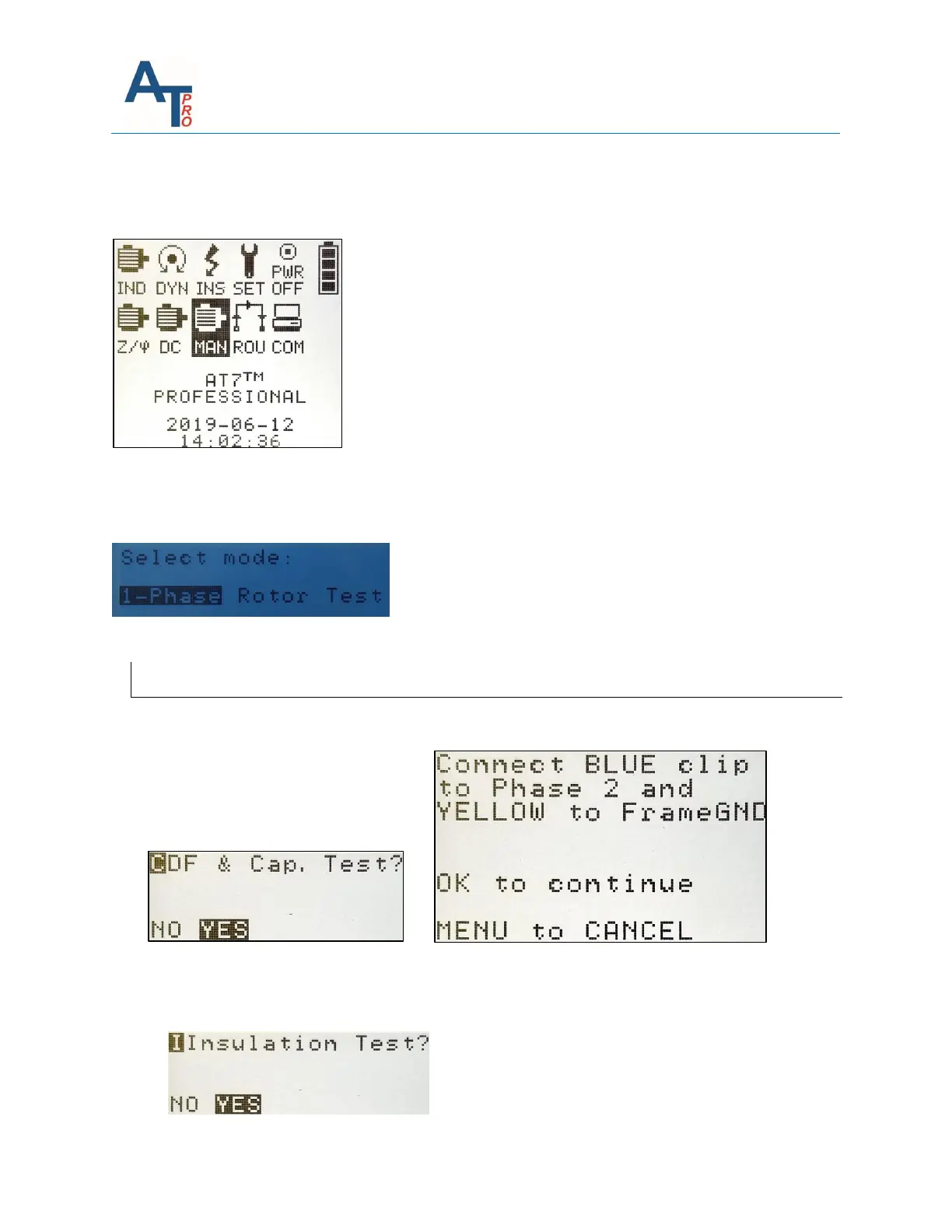

The “MAN” menu is located in the middle of the 2
nd
line of icons on the main screen as shown below.
Press on “MAN” menu, the following screen pops up. The 1
st
option “1-Phase” is used for test on 1
Phase AC motor. The 2
nd
option “Rotor Test” is used for diagnosing problems with rotor after the stator
is determined to be good.
1 - Phase AC Test
1. 1-Phase AC test starts with DF/C test as shown below.
2. Choose to perform insulation test.
To Next Page
