Allen-Bradley 160-DN2 User Manual

Publication 0160-5.18 - June 2003
6-10 Using 160-DN2 with DeviceNet Scanner
Configuring the Scanner The scanner must be configured to communicate with the 160-DN2
module and connected Bulletin 160-SSC drive.
Example Network
After the module is configured, the connected drive and module
become a single node on the network. This section provides a step-by-
step procedure to configure the scanner in a network, such as the
simple network example shown in Figure 6.8
. In our example, we will
configure the drive for using the example Output Assembly 103 and
Input Assembly 104.

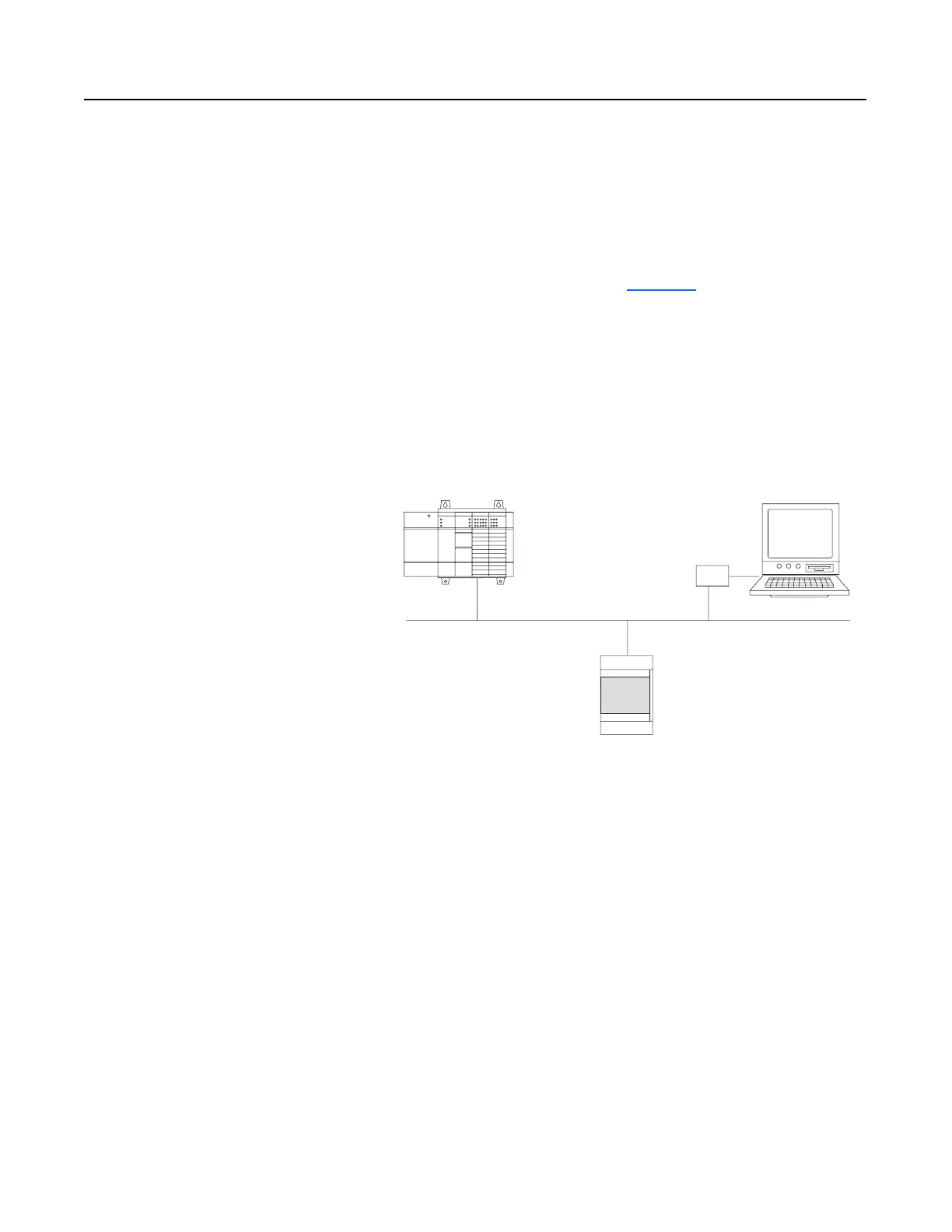

Figure 6.8
Example DeviceNet Network
MAC ID 0
(Node 0)
SLC 500 Controller with
1747-SDN Scanner
MAC ID 62
(Node 62)
Computer with 1770-KFD and
RSNetWorx for DeviceNet
MAC ID 1
(Node 1)
Bulletin 160-SSC
and 160-DN2
