Allen-Bradley 160-DN2 User Manual

Publication 0160-5.18 - June 2003

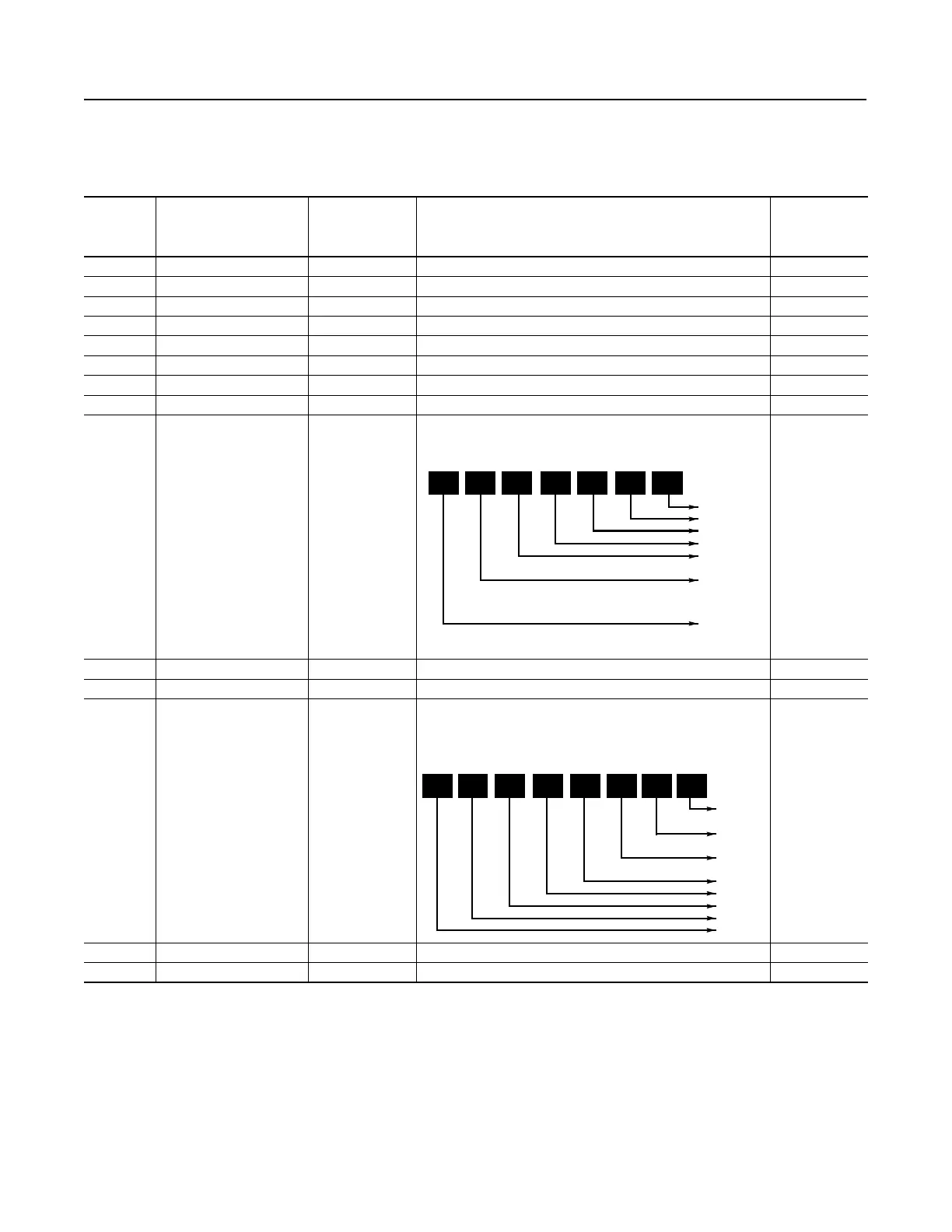

5-6 DeviceNet Parameter Descriptions
Drive Display Parameters
(Read Only)
Below is a brief description of the Bulletin 160 SSC Interface Display
Group parameters. Refer to the Bulletin 160 SSC User Manual for
more detailed information on these parameters
.
Parameter
Number
Parameter Name
Object Mapping
(Class-Instance-
Attribute)
Description Units
01 [Output Frequency] 0xB3-1-1 Frequency at TB2 terminals T1, T2, T3. 0.1 Hz
02 [Output Voltage] 0xB3-1-2 Voltage at TB2 terminals T1, T2, T3. 1 Volt
03 [Output Current] 0xB3-1-3 Current at TB2 terminals T1, T2, T3. 0.01 Amperes
04 [Output Power] 0xB3-1-4 Power at TB2 terminals T1, T2, T3. 0.01 kW
05 [Bus Voltage] 0xB3-1-5 DC Bus voltage level. 1 Volt
06 [Cmd Frequency] 0xB3-1-6 Commanded Frequency. 0.1 Hz
07 [Present Fault] 0xB3-1-7 Coded last fault number. Numeric Value
08 [Heatsink Temp] 0xB3-1-8 Temperature of the drive heatsink. 1 degree C
09 [Drive Status] 0xB3-1-9 Status of drive in binary coded format. Important: Parameter 9
shown below does not match what is published in the Bulletin 160
SSC User Manual. The DeviceNet binary code for Parameter 9 is:
Binary Number
10 [Drive Type] 0xB3-1-10 Used by Allen-Bradley field service personnel. Numeric Value
11 [Firmware Version] 0xB3-1-11 Version of drive firmware used. Numeric Value
12 [Input Status]
➀ 0xB3-1-12 Open (0) Closed (1) state of Drive’s discrete inputs.
Important: Parameter 12 shown below does not match what is
published in the Bulletin 160 SSC User Manual. The DeviceNet
binary code for Parameter 12 is:
Binary Number
13 [Power Factor Ang] 0xB3-1-13 Angle (electrical degrees) between V and I. 0.1 degree C
14 [Memory Probe] 0xB3-1-14 Used by Allen-Bradley service personnel. Numeric Value
➀ For preset speed model, this parameter contains the data from parameter 15 in the SSC drive due to conflicting parameter numbers with DeviceNet
specific parameters.
Bit 3 Bit 2 Bit 1 Bit 0
Running
Accel
Forward
Decel
Bit 6 Bit 5 Bit 4
Drive
Faulted
Reverse
Latched
A-B Internal
Use Only
At
Frequency
Reference
Bit 3 Bit 2 Bit 1 Bit 0
Not Used
Preset 1
Bit 6 Bit 5 Bit 4Bit 7
Input
Preset 2
Input
Preset 3
Input
Unused
Reverse
Stop
Start
