Allen-Bradley 160-DN2 - State Transition Diagram

Publication 0160-5.18 - June 2003
B-14 DeviceNet Information
Class Code 0x29 —
Control Supervisor Object
(Continued)
Common Services
State Transition Diagram

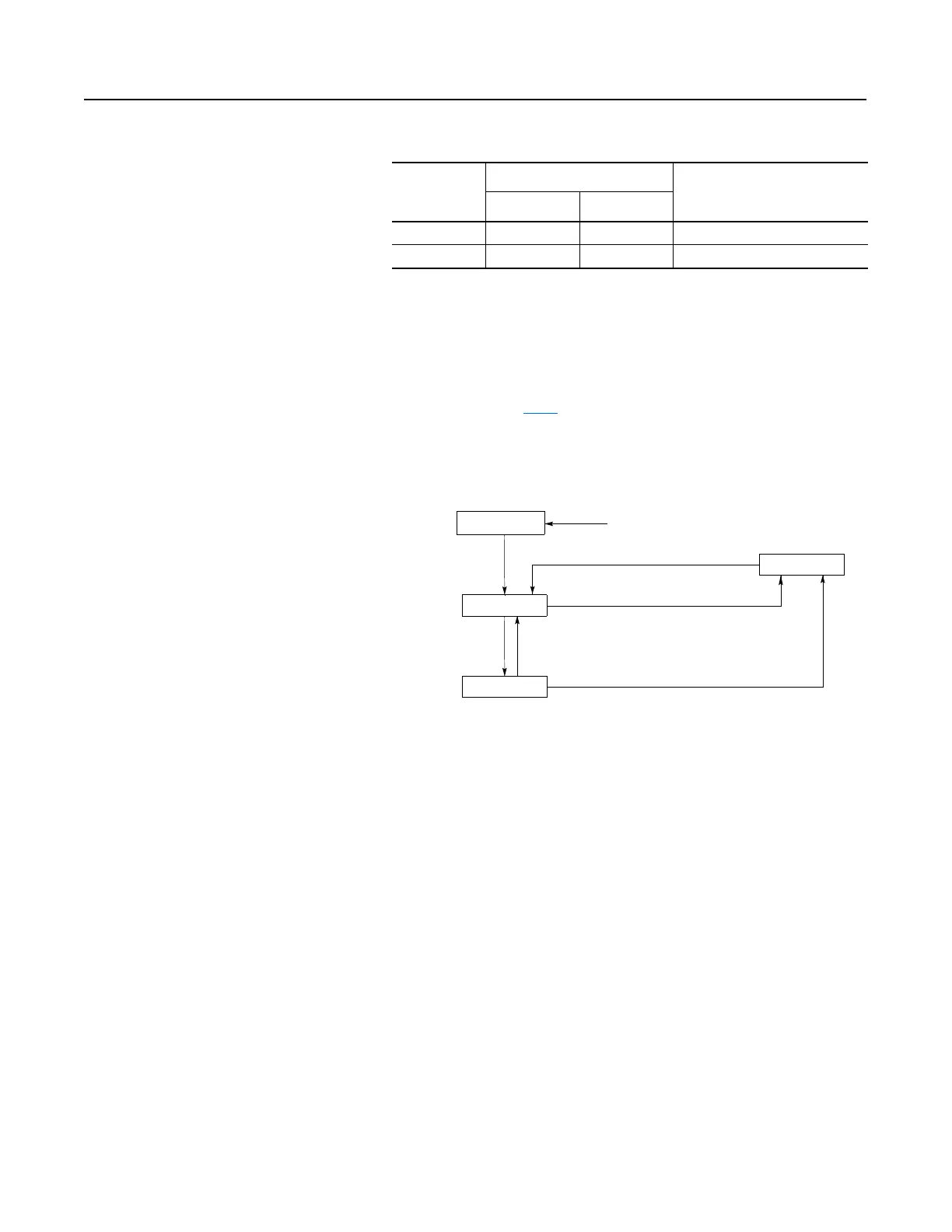

The following State Transition Diagram provides a graphical
description of the states and state transitions that are described for
attribute 6 on page B-13
.
Figure B.1
State Transition Diagram
Service
Code
Implemented for:
Service
Name
Class Instance
0x0E No Yes Get_Attribute_Single
0x10 No Yes Set_Attribute_Single
Switch Power On
Ready
Enabled
Faulted
Switch Power Off
Fault Reset
Fault Detected
Fault Detected
Stop Complete
Run
Non-Existent
