Allen-Bradley 160-DN2 User Manual

Publication 0160-5.18 - June 2003
Using 160-DN2 with DeviceNet Scanner 6-31
Using Explicit Messaging
(Continued)

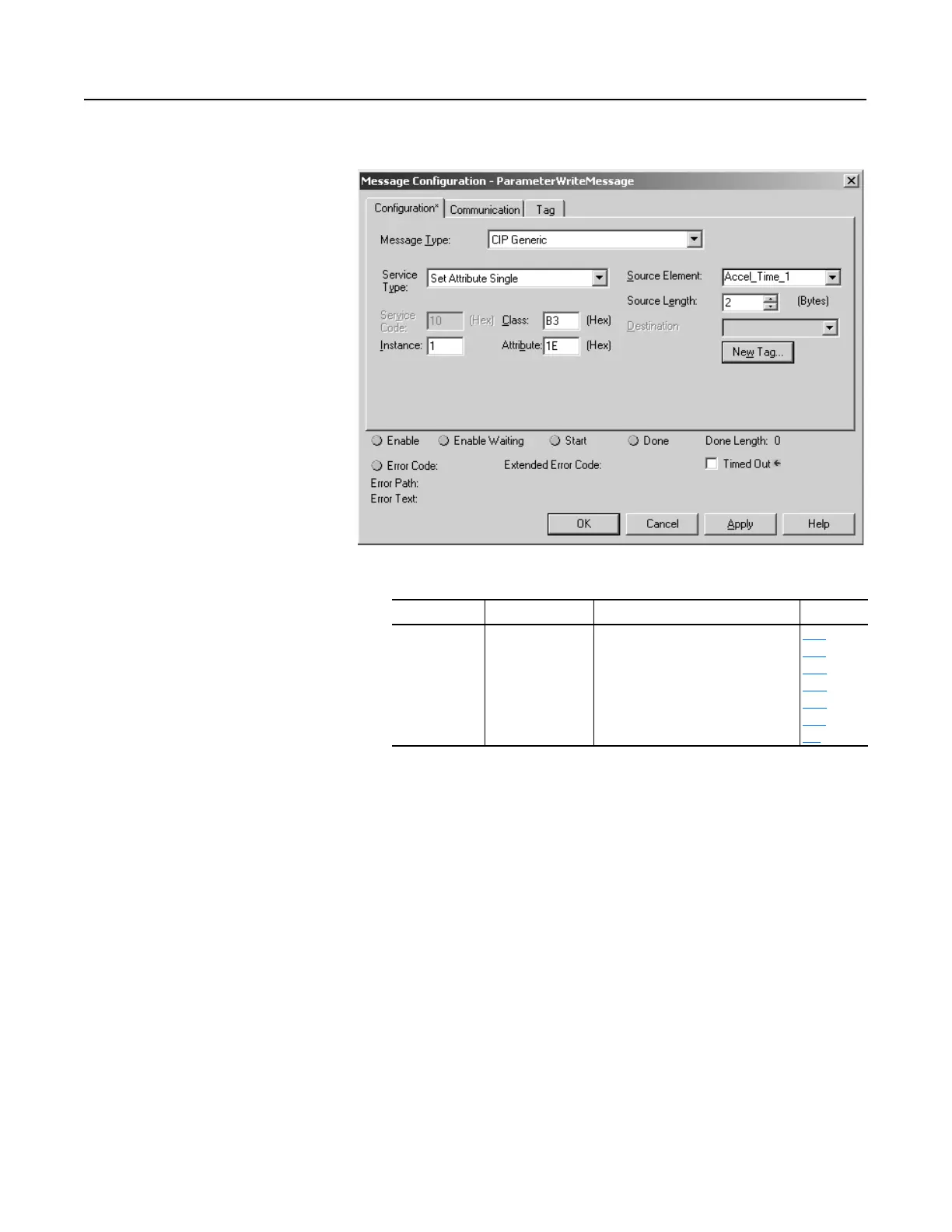

Figure 6.22
ParameterWriteMessage Screen
Box Setting Description Refer to . . .
Message Type
Service Type
Class
Instance
Attribute
Source Element
Source Length
CIP Generic
Set Attribute Single
B3 (hex)
1 (dec)
1E (hex)
➁
2 (bytes)
Must be CIP Generic
Defines Service Code as text message
160 Parameter Table Object
Number of Instances
Parameter Number
➀
User-created tag for parameter data
Data Type
6-25
6-25
B-18
B-18
B-18
6-25
B-2
➀ For this example screen, Parameter 30 - [Accel Time 1] was selected.
➁ For this example screen, the tag Accel_Time_1 was created and assigned. To create a
tag, click New Tag, enter tag name, select Data Type, and click OK. To assign this tag,
click on the Source Element dropdown arrow, select the defined tag, and click outside
the dropdown list.
