1734-ADNX Quick Start B-21
You should still be looking at the subnet 1734-ADNX Input tab.

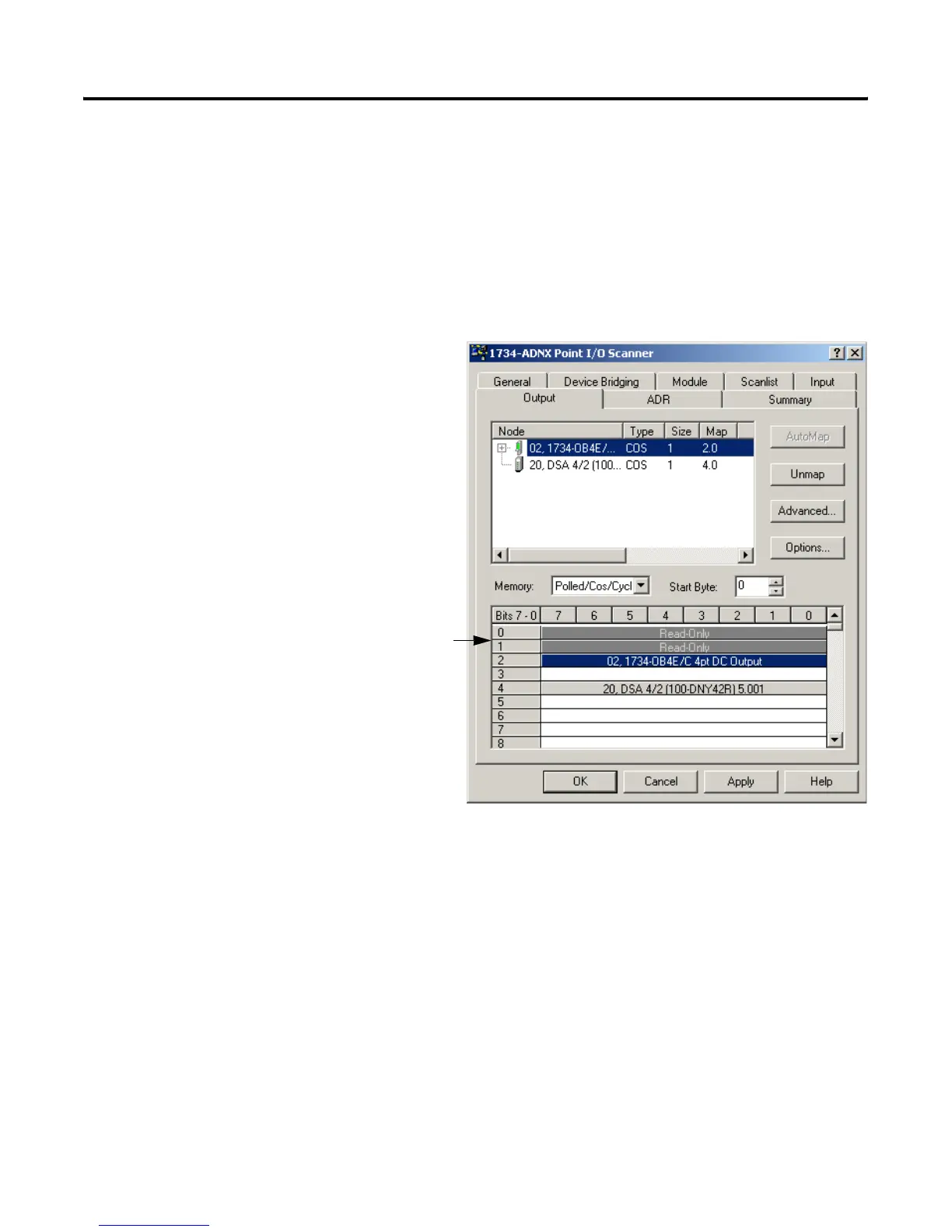

Now select the Output tab and verify you have the following:
• Notice the RightSight does not appear.
• It is an input to the scanner - reporting if an object is
detected.
• It does not have any outputs.
• The DSA has both inputs and outputs.
5. Expand the plus next to node 2.
• Several revs ago (RSNetWorx for DeviceNet V3.21) the ability to
view I/O Details from the Input and Output property pages was
added into the software.
• From the Input and Output property pages, you can view
detailed I/O information for each device in the scanlist of a
DeviceNet scanner.
• To view the I/O details for a particular device, click the plus sign
(+) located to the left of the device. If a plus sign (+) is not
displayed, there are not any I/O details for that device.
• This feature is driven by each device’s EDS file.
These two say read
only, but since it is
an output tab, a
better description is
“reserved for future
use”.
