Publication 1734-UM002C-EN-P - July 2003
1734-ADNX Quick Start B-27

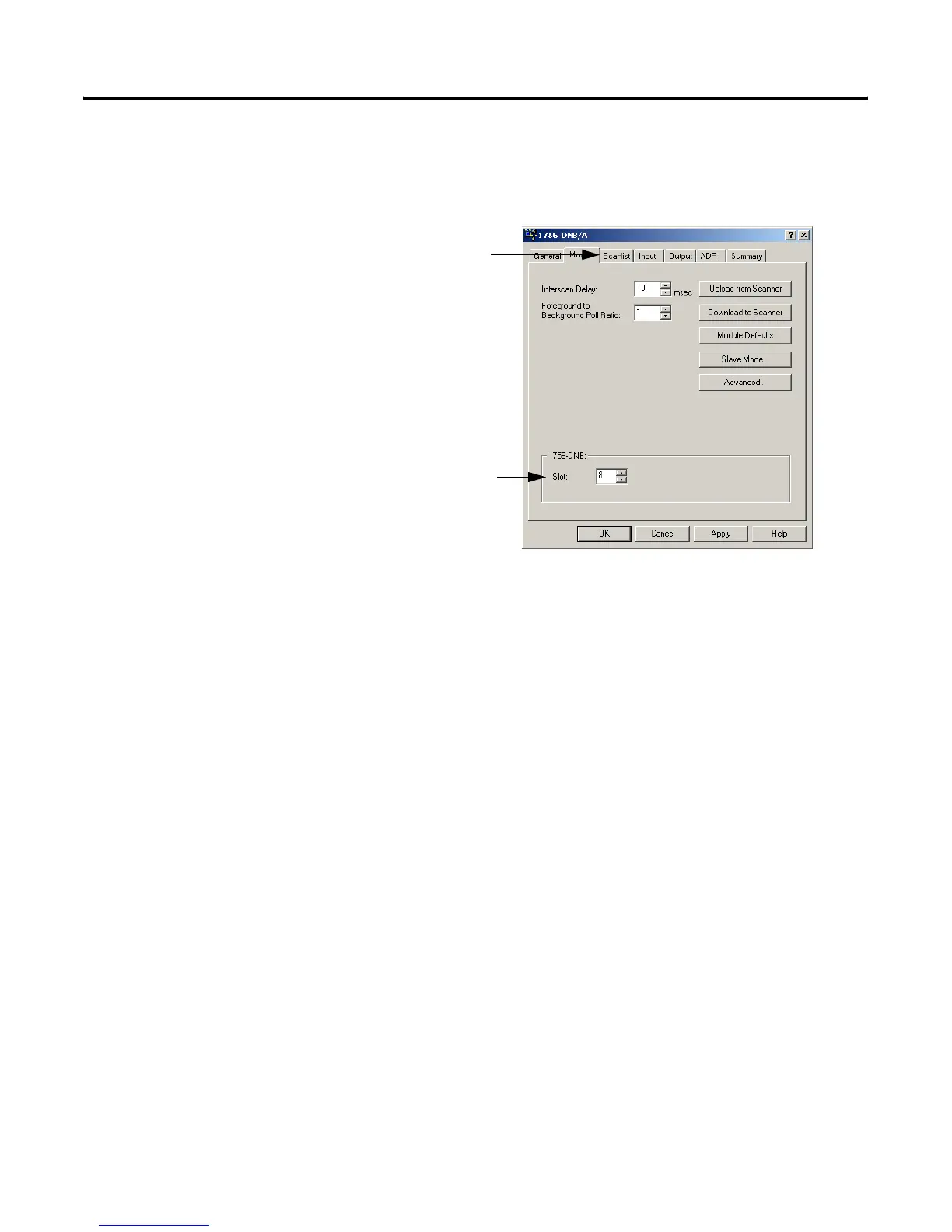

13. Change the slot number to 8 (see illustration below) so it
matches the 1756-DNBs location in the 1756-Rack. Then click
the Scanlist tab.
14. Select nodes 1, 15, 16 and 20, then use the single right arrow to
add them to your scanlist.
• Notice that you did not get the error message that you
received earlier, when you were told that the 1734-ADNX
POINT I/O DeviceNet Adapter does not contain any I/O data.
• When you selected the Edit I/O parameters, you found that
no values were filled in the Input and Output fields.
• Now that you have looked at the Subnet, saved the
information, and associated the main network with the
Subnet, most of the information is now available from the
main network.
Slot Number
Scanlist tab
