Adding the 1734-ADN(X) to the DeviceNet Scanner’s Scanlist 5-3
Setting the Adapter’s Parameters
After adding it to the network, you must configure the adapter for use
with master DeviceNet devices.
1. Configure the adapter as shown below.
You see a pop-up screen with a series of tabs. Each tab provides
options to write configuration for your adapter. The tabs are shown
below and on the following pages.
IMPORTANT
This chapter shows configuration in the offline
mode. Changes set in this mode do not take effect
immediately. For configuration changes to take
place, you must:
• go online with your adapter
• download the new configuration to your adapter
For more information on how to go online, see
page 5-6.

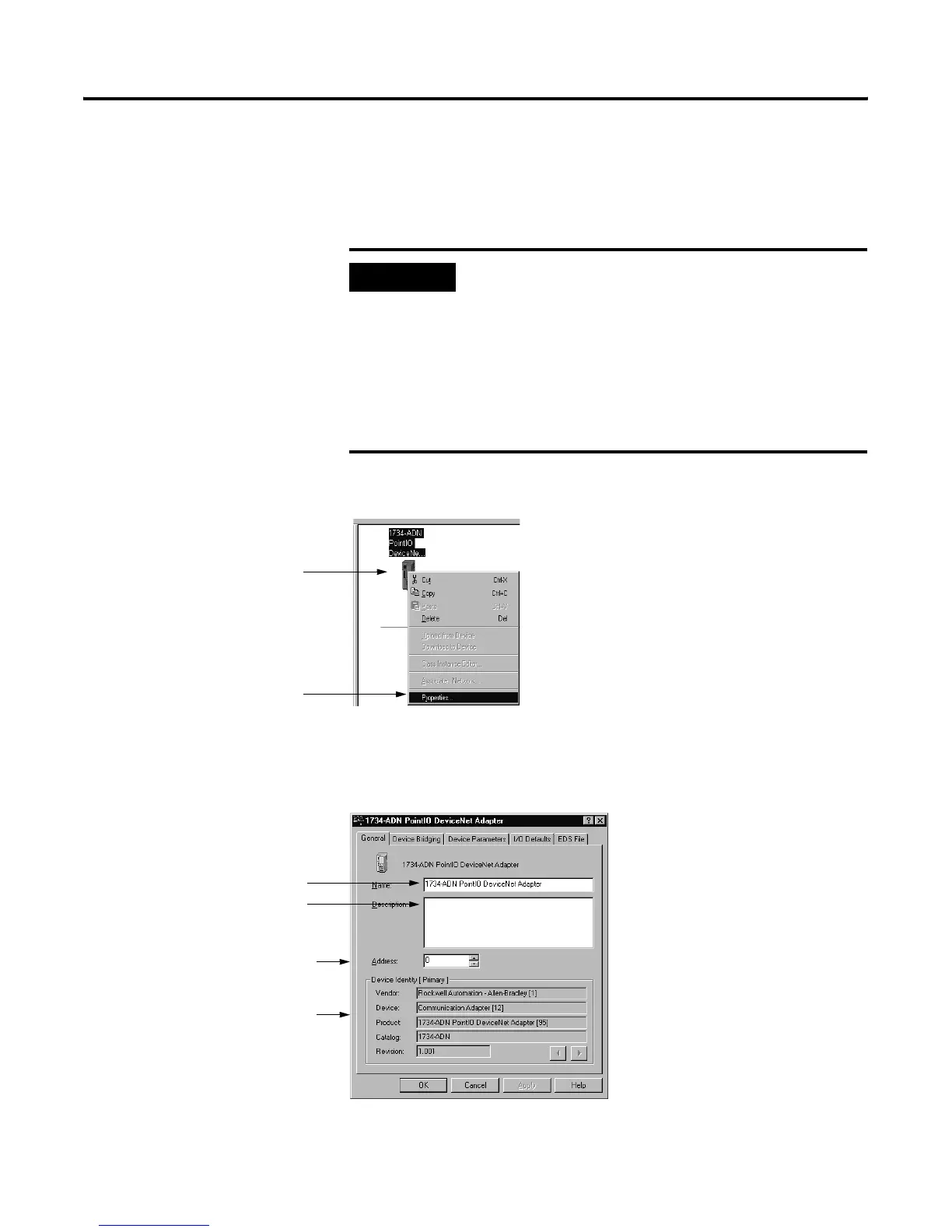

1. Right-click on the adapter.
2. Click on Properties to
configure your adapter.
TIP: You can also double-click on the adapter
to view the Properties menus.
Type the adapter’s name here.
Type a description here.
This screen also shows the
adapter’s device identity.
These fields are read-only.
Select the desired address.
This address corresponds to
the address switch on the
adapter.
