Publication 1734-UM002C-EN-P - July 2003
5-4 Adding the 1734-ADN(X) to the DeviceNet Scanner’s Scanlist
IMPORTANT: The following
configuration parameters:
• Auto Start Mode
• Set Subnet Baudrate
• Set Backplane Autobaud
• AutoAddress Backplane
Modules
should only be used when online and
should be set to Do Nothing when
Download All Parameters is selected or
when saving to a scanner’s ADR data.
Restore all parameter
default values.
For a description of a
specific parameter, highlight
the parameter below and
click here.
Any parameter with a lock shown before it cannot
be changed.
The values correspond to the I/O connection sizes
from the I/O Defaults tab. They can be uploaded
from an adapter with a downloaded scanlist.

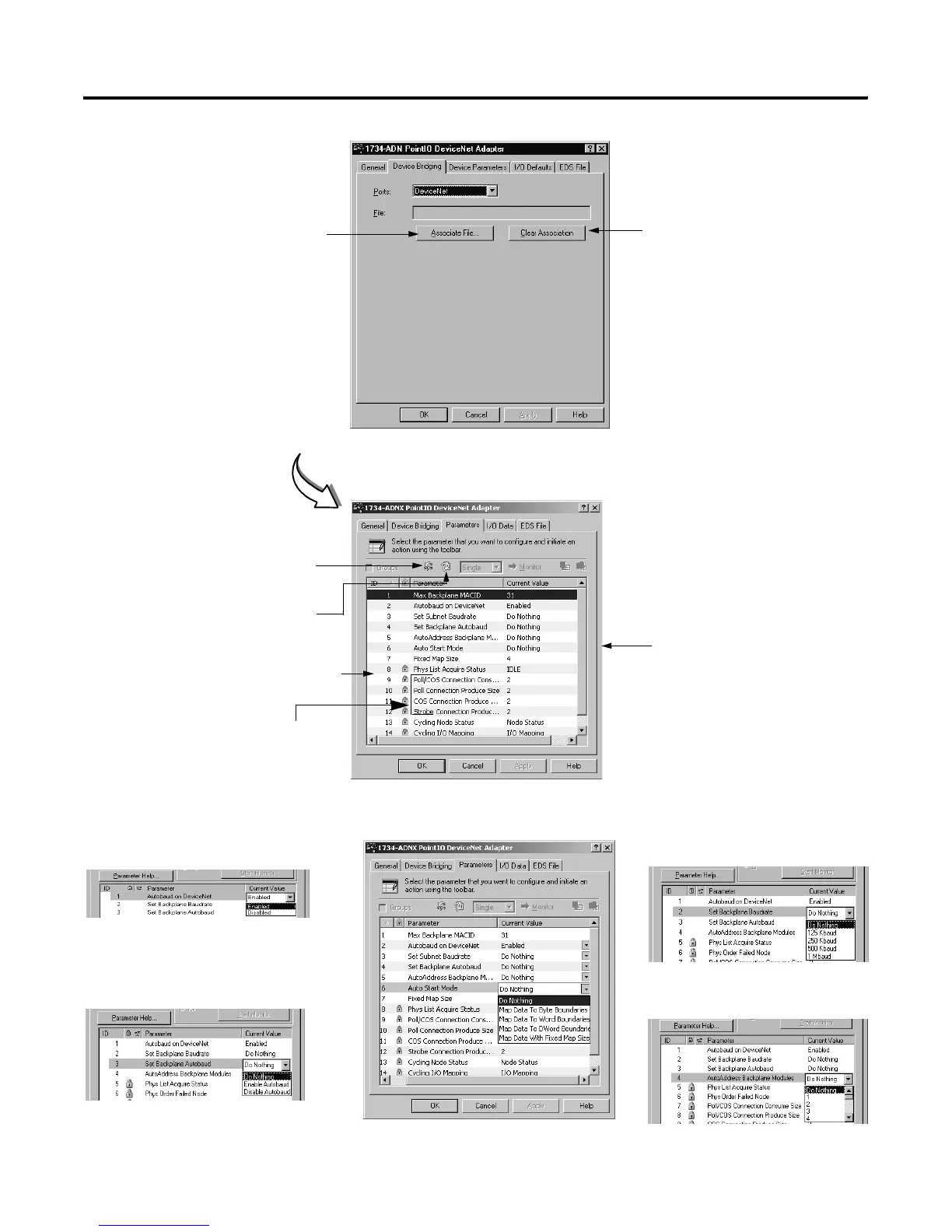

The screens below show how to change the other
parameters.
AutoAddress
Enable or disable autoaddress.
Backplane Baudrate
Backplane Autobaud
Set the backplane baudrate.
Configure backplane modules to autobaud.
Use Associate File to
associate this configuration
file (i.e., configuring the
1734-ADN for communication
with DeviceNet) with the
configuration file that
configures the same
1734-ADN for communication
with POINT I/O modules.
For more information on the
need to maintain two
configuration files in the same
adapter, and the simultaneous
presence of the adapter on
two networks (i.e., DeviceNet
as a slave and Subnet as a
master), see page 5-1.
Use Clear Association to remove
previously established configuration
file associations that no longer apply
to your adapter.
AutoAddress Backplane Modules
Choose the autoaddress.
Auto Start Mode
Note:
Max Backplane MAC ID and Fixed Map
Size are only 1734-ADNX configuration
parameters.
To Next Page
