9-6 Using RSLogix 5000 in Remote I/O and Block Transfer Applications
Configuring the Remote I/O Adapter

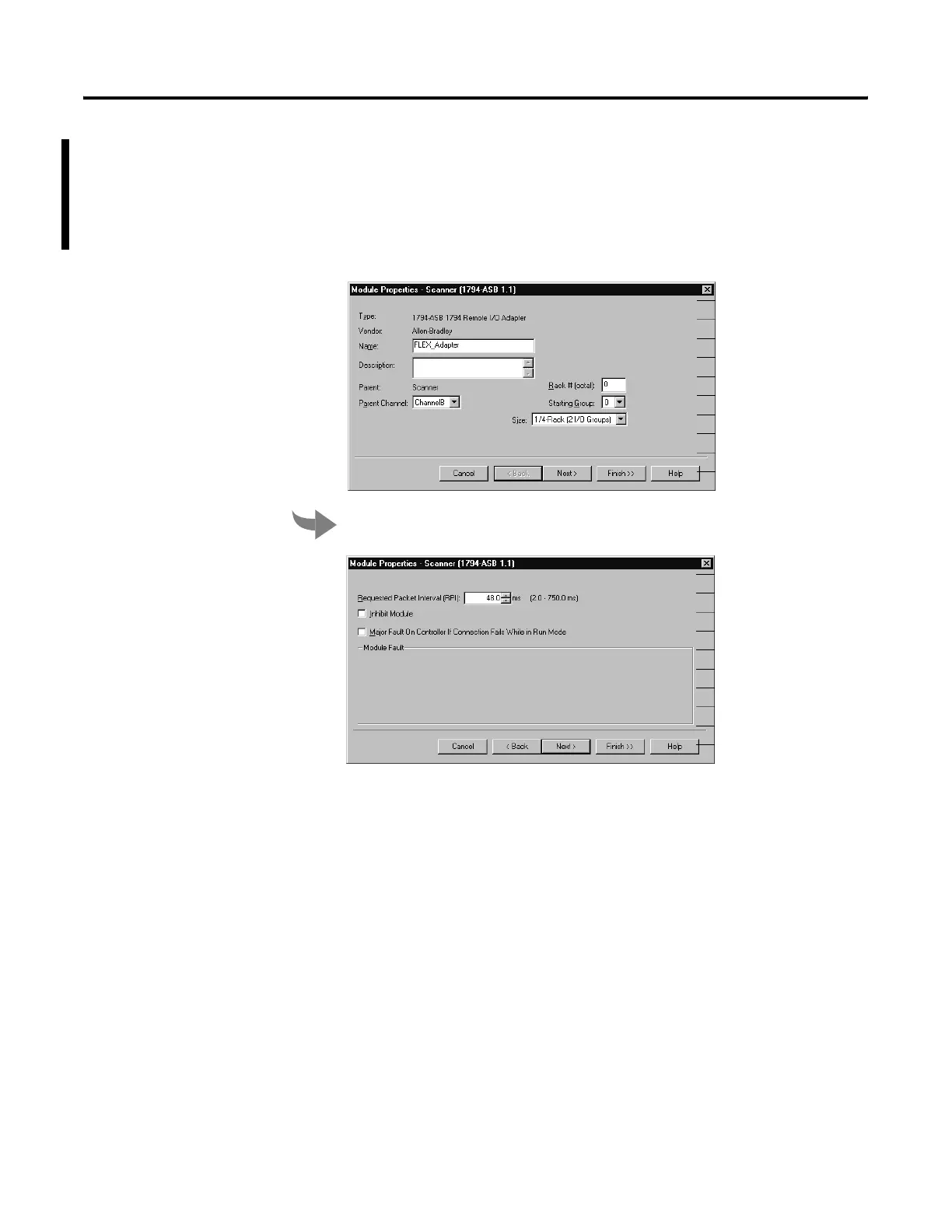

Configure the newly added remote I/O adapter in the wizard screens
that appear.
Table 9.2 on page 9-7 describes the configurable
parameters that appear on the wizard screens.

Allen-Bradley 1756-DHRIO Specifications

General

Model	1756-DHRIO
Category	Control Unit
Catalog Number	1756-DHRIO
Number of Ports	2
Shock	30 g
Vibration	5 g
Product Type	Communication Module
Communication Protocols	Data Highway Plus, Remote I/O
Port Type	DH+ and RIO
Data Highway Plus Baud Rates	57.6 kbps, 115.2 kbps
Baud Rate	57.6 kbps, 115.2 kbps, 230.4 kbps
Operating Temperature	0 to 60 °C (32 to 140 °F)
Storage Temperature	-40 to 85 °C (-40 to 185 °F)
Relative Humidity	5 to 95% (non-condensing)
Module Location	Any slot in a 1756 chassis
Isolation Voltage	50 V continuous
Certifications	CE, C-Tick, UL
