DNI Configuration Parameters and Programming Notes

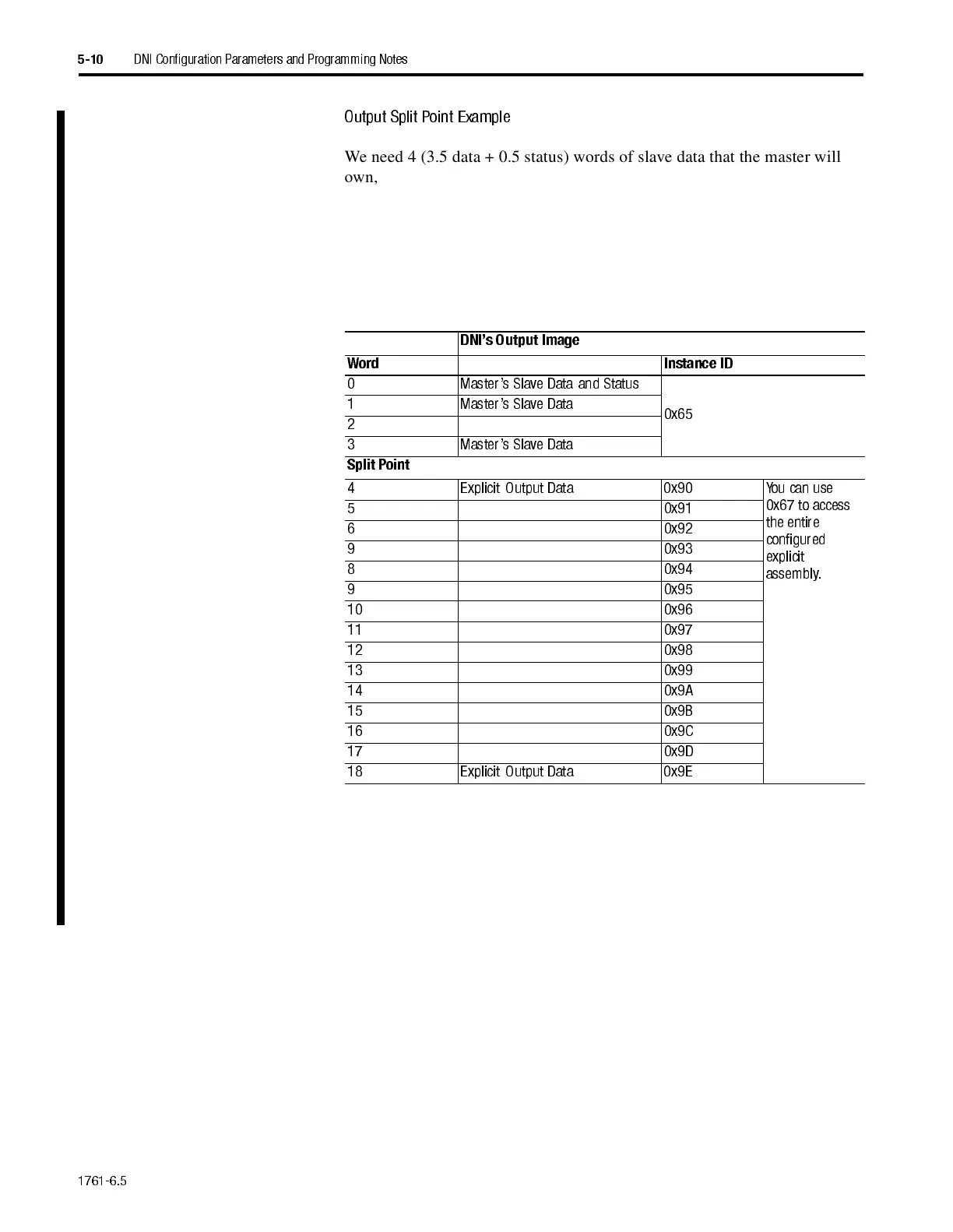

Output Split Point Example
We need 4 (3.5 data + 0.5 status) words of slave data that the master will
own, and we need to configure an additional 15 words so that other
DeviceNet products can write data.
•
Output Size = 19
•
Output Split Point = 4
The DNI’s output image will consist of:
The minimum value allowed for the Split Point is 1. If the Output Size is 32
(maximum), the resulting range of explicit output words would be 0x90 to
0xAE.
See "Output Assembly Data (Explicit, Split Point, and Slave)" on page 6-15
for more information.
DNIs Output I mage
Word Instance ID
0 Masters Slave Data and Status
0x65
1 Masters Slave Data
2
↓
3 Masters Slave Data
Split Point
4 Explicit Output Data 0x90 You can use
0x67 to access
the entire
configured
explicit
assembly.
5
↓
0x91
6
↓
0x92
9
↓
0x93
8
↓
0x94
9
↓
0x95
10
↓
0x96
11
↓
0x97
12
↓
0x98
13
↓
0x99
14
↓
0x9A
15
↓
0x9B
16
↓
0x9C
17
↓
0x9D
18 Explicit Output Data 0x9E
