1761-6.5

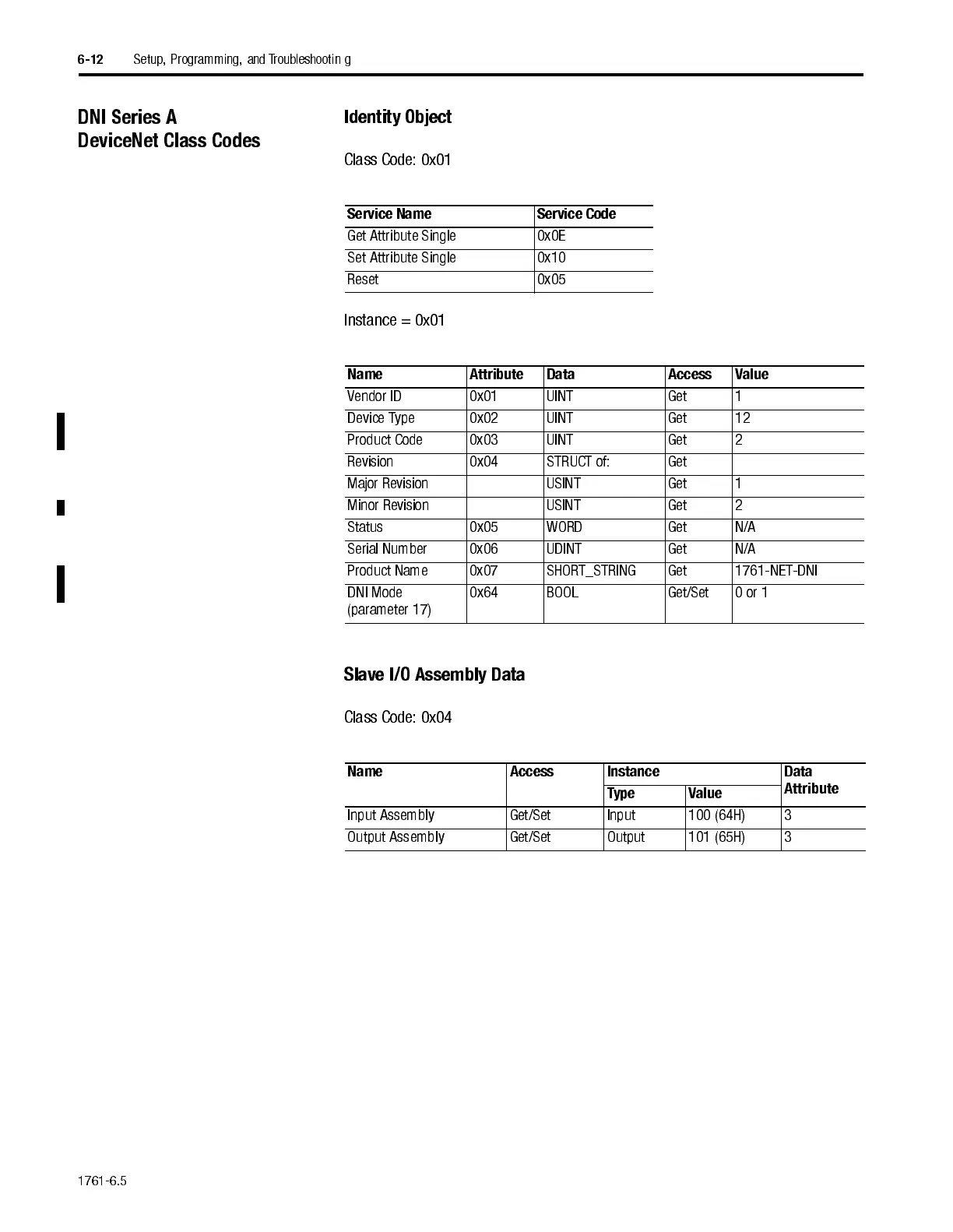

6-12
Setup, Programming, and Troubleshootin g
DNI Series A
DeviceNet Class Codes
Identity Object
Class Code: 0x01
Instance = 0x01
Slave I/O Assembly Data
Class Code: 0x04
Service Name Service Code
Get Attribute Single 0x0E
Set Attribute Single 0x10
Reset 0x05
Name Attribute Data Access Value
Vendor ID 0x01 UINT Get 1
Device Type 0x02 UINT Get 12
Product Code 0x03 UINT Get 2
Revision 0x04 STRUCT of: Get
Major Revision USINT Get 1
Minor Revision USINT Get 2
Status 0x05 WORD Get N/A
Serial Number 0x06 UDINT Get N/A
Product Name 0x07 SHORT_STRING Get 1761-NET-DNI
DNI Mode
(parameter 17)
0x64 BOOL Get/Set 0 or 1
Name Access Instance Data
Attribute
Type Value
Input Assembly Get/Set Input 100 (64H) 3
Output Assembly Get/Set Output 101 (65H) 3
