Allen-Bradley DeviceNet 1761-NET-DNI User Manual

1769-6.5

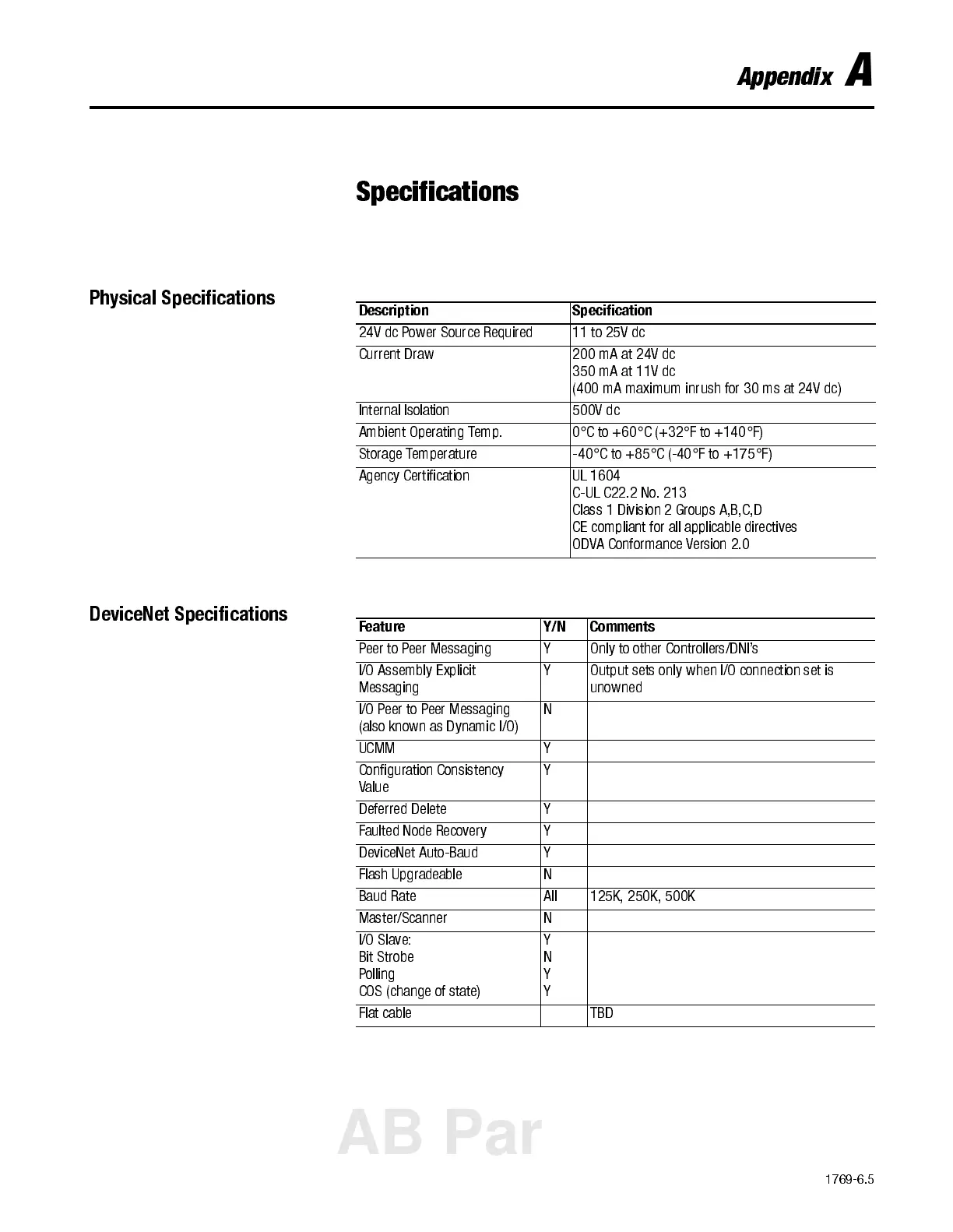

Appendix
A
Specifications
Physical Specifications
DeviceNet Specifications
Description Specification
24V dc Power Source Required 11 to 25V dc
Current Draw 200 mA at 24V dc
350 mA at 11V dc
(400 mA maximum inrush for 30 ms at 24V dc)
Internal Isolation 500V dc
Ambient Operating Temp. 0
°
C to +60
°
C (+32
°
F to +140
°
F)
Storage Temperature -40
°
C to +85
°
C(-40
°
F to +175
°
F)
Agency Certification UL 1604
C-UL C22.2 No. 213
Class 1 Division 2 Groups A,B,C,D
CE compliant for all applicable directives
ODVA Conformance Version 2.0
Feature Y/N Comments
Peer to Peer Messaging Y Only to other Controllers/DNIs
I/O Assembly Explicit
Messaging
Y Output sets only when I/O connection set is
unowned
I/O Peer to Peer Messaging
(also known as Dynamic I/O)
N
UCMM Y
Configuration Consistency
Value
Y
Deferred Delete Y
Faulted Node Recovery Y
DeviceNet Auto-Baud Y
Flash Upgradeable N
Baud Rate All 125K, 250K, 500K
Master/Scanner N
I/O Slave:
Bit Strobe
Polling
COS (change of state)
Y
N
Y
Y
