1761-6.5

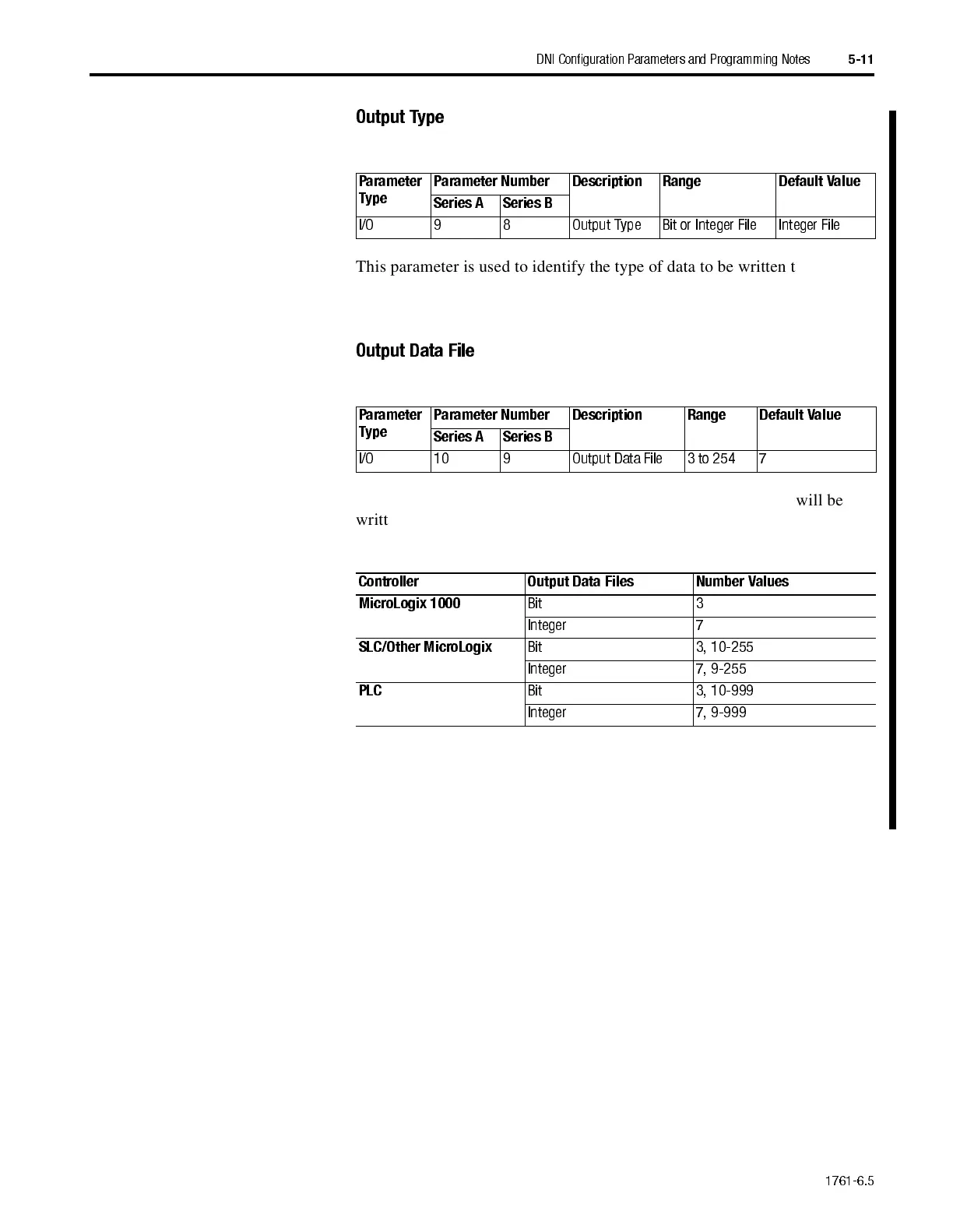

DNI Configuration Parameters and Programming Notes
5-11
Output Type
This parameter is used to identify the type of data to be written to the
controller. The DNI supports data exchange with either bit or integer files.
Output Data File
This parameter is used to identify the target data file where data will be
written within the controller. Files within Allen-Bradley controllers are:
Parameter
Type
Parameter Number Description Range Default Value
Series A Series B
I/O 9 8 Outpu t Typ e Bit or Integer File Integer File
Parameter
Type
Parameter Number Description Range Default Value
Series A Series B
I/O 10 9 Output Data File 3 to 254 7
Controller Output Data Files Number Value s
MicroLogix 1000
Bit 3
Integer 7
SLC/Other MicroLogix
Bit 3, 10-255
Integer 7, 9-255
PLC
Bit 3, 10-999
Integer 7, 9-999
Note:
The DNI can only access files 3 through 254.
