Allen-Bradley DeviceNet 1761-NET-DNI - DF1 Substitute Address Configuration; DF1 Autobaud Setting

1761-6.5
DNI Configuration Parameters and Programming Notes
5-19

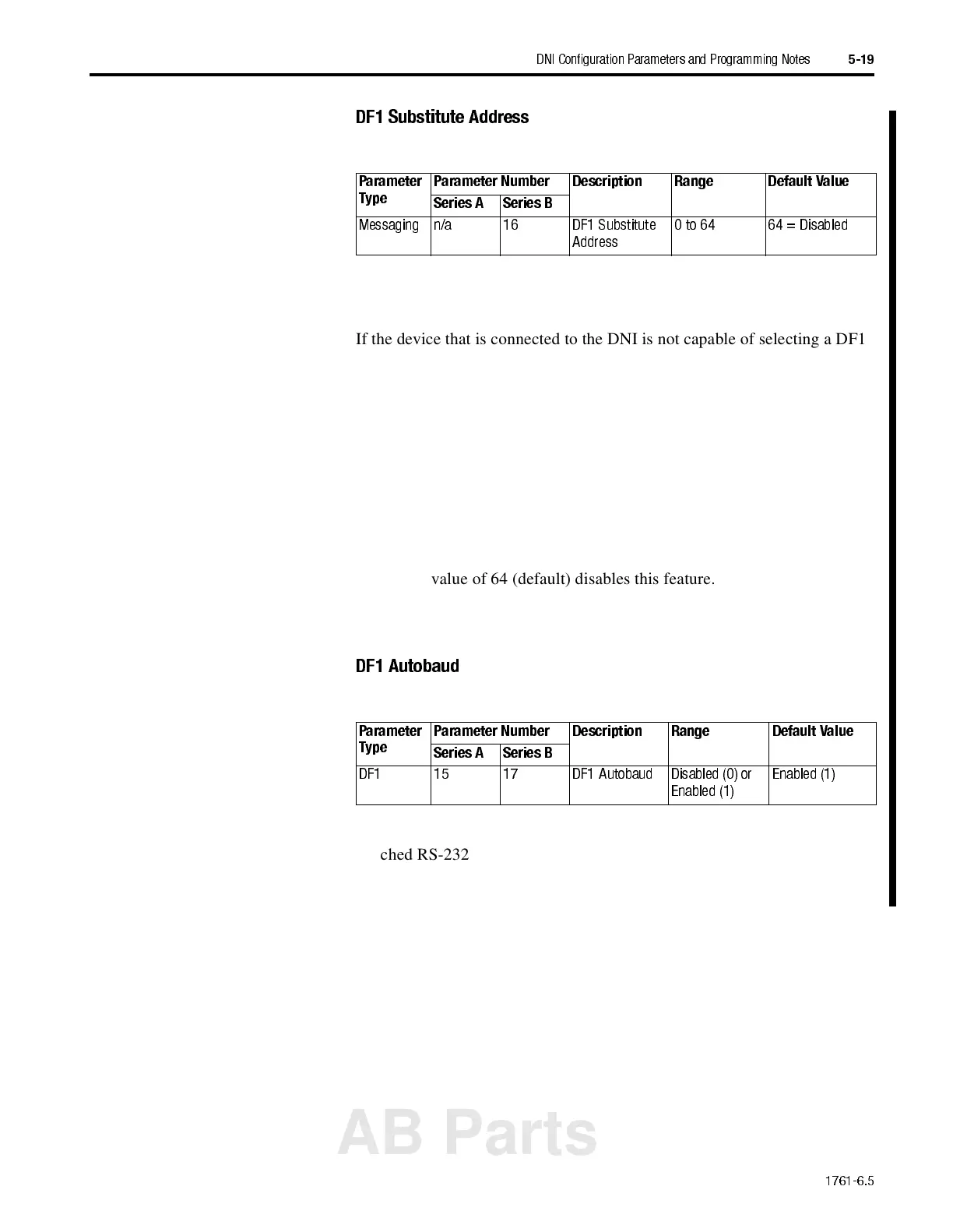

DF1 Substitute Address
If the device that is connected to the DNI is not capable of selecting a DF1
destination address of 0 to 63, by entering a value in this parameter, the DNI
automatically routes all DF1 communications to this address with the
following exceptions:
•
Responses to poll requests are sent to the configured address.
•
COS/Cyclic I/O data messages are sent to the configured device.
For example, when using a MicroView operator interface over DeviceNet,
DF1 Substitute Address defines the device (node number) that the
MicroView exchanges data with.
DF1 Autobaud
The DNI’s RS-232 baud rate is set up to automatically synchronize to the
attached RS-232 device. If you want to lock the RS-232 baud rate, disable
this parameter. If this parameter is disabled (0), the DNI’s RS-232 port baud
rate is set to the value specified by the DF1 Baud Rate parameter.
Parameter
Type
Parameter Number Description Range Default Valu e
Series A Series B
Messaging n/a 16 DF1 Substitute
Address
0 to 64 64 = Disabled
Important:
The DF1 Substitute Address parameter cannot be used with
DNI Series A.
Note:
A value of 64 (default) disables this feature.
Parameter
Type
Parameter Number Description Range Default V alue
Series A Series B
DF1 15 17 DF 1 Autobaud Disable d (0) or
Enabled (1)
Enabled (1)
