1761-6.5
Installation and Wiring
4-3

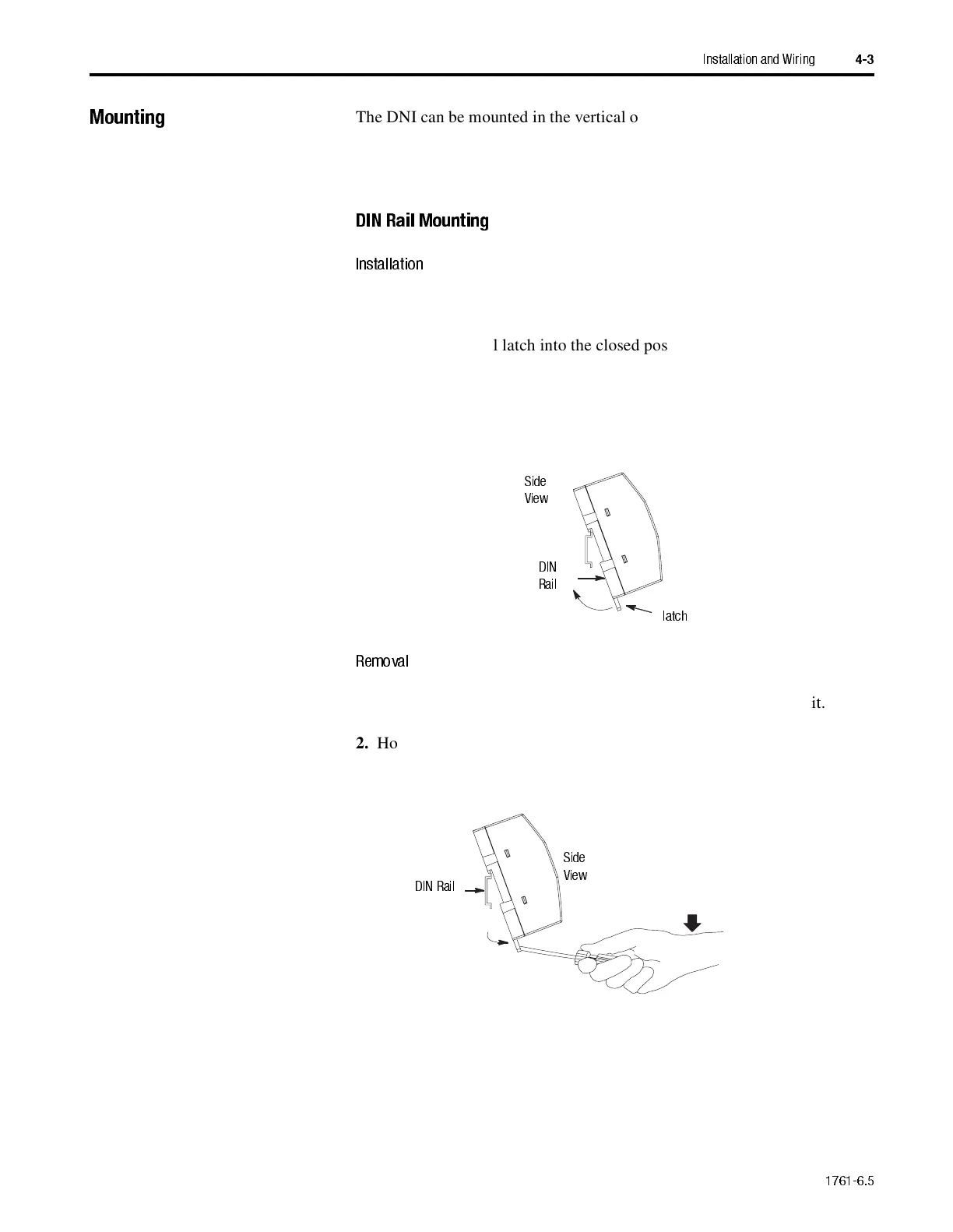

Mounting
The DNI can be mounted in the vertical or horizontal position. There are no
spacing requirements except as necessary for DIN rail latch movement. See
Appendix A for operating temperature specifications.
DIN Rail Mounting
Installation
1.
Mount your DIN rail.
2.
Snap the DIN rail latch into the closed position.
3.
Hook the top slot over the DIN rail.
4.
While pressing the unit against the rail, snap the unit into position.
Removal
1.
Place a screwdriver in the DIN rail latch at the bottom of the unit.
2.
Holding the unit, pry downward on the latch until the unit is released
from the DIN rail.
Side
View
DIN Ra il
