Allen-Bradley DeviceNet 1761-NET-DNI User Manual

1761-6.5
Installation and Wiring
4-5

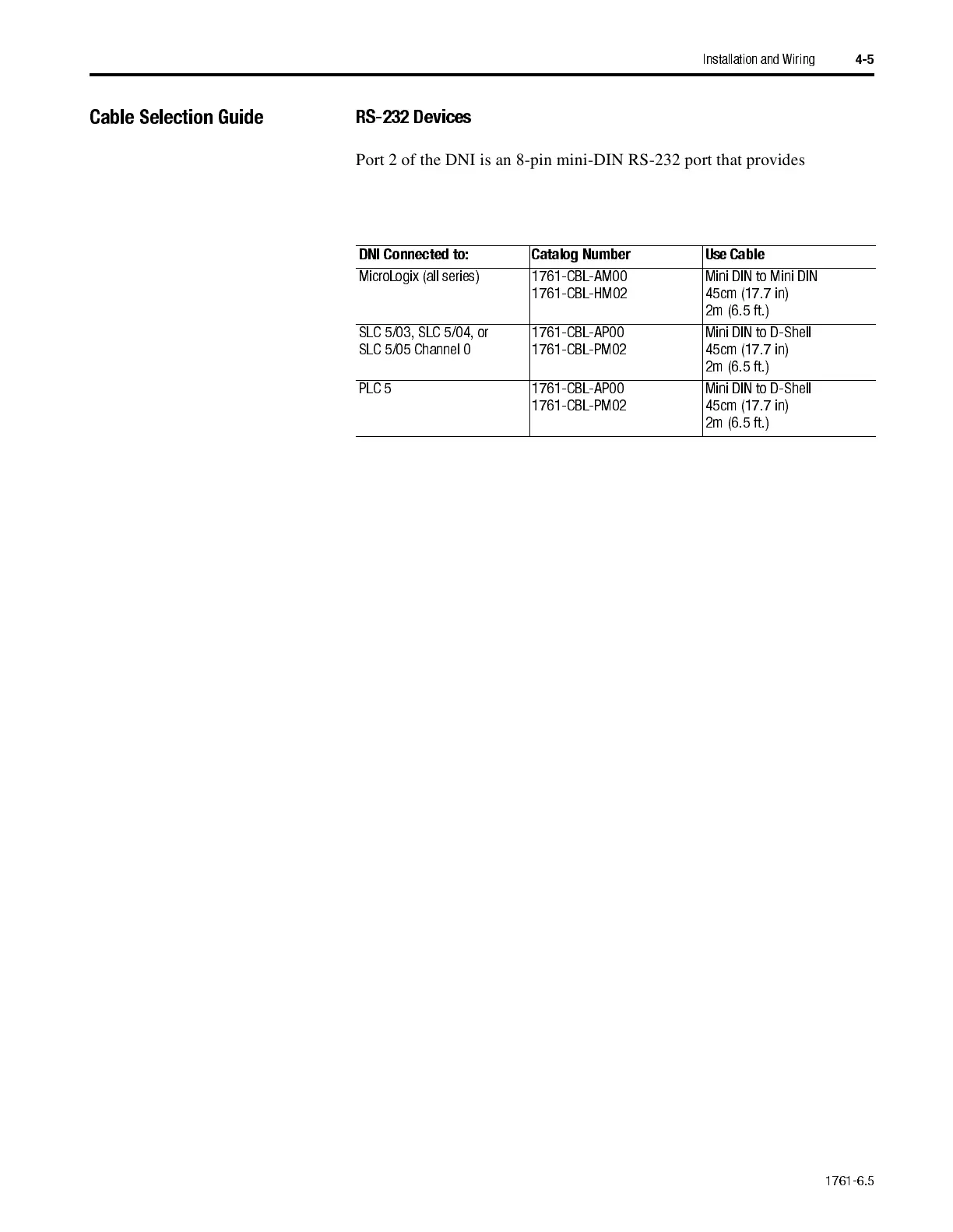

Cable Selection Guide
RS-232 Devices
Port 2 of the DNI is an 8-pin mini-DIN RS-232 port that provides
connection to DF1 compatible RS-232 devices. The table below describes
the RS-232 compatible cables.
DNI Connected to: Catalog Number Use Cable
MicroLogix (all series) 1761-CBL-AM00
1761-CBL-HM02
Mini DIN to Mini DIN
45cm (17.7 in)
2m (6.5 ft.)
SLC 5/03, SLC 5/04, or
SLC 5/05 Channel 0
1761-CBL-AP00
1761-CBL-PM02
Mini DIN to D-Shell
45cm (17.7 in)
2m (6.5 ft.)
PLC 5 1761-CBL-AP00
1761-CBL-PM02
Mini DIN to D-Shell
45cm (17.7 in)
2m (6.5 ft.)
