1761-6.5
6-14
Setup, Programming, and Troubleshootin g

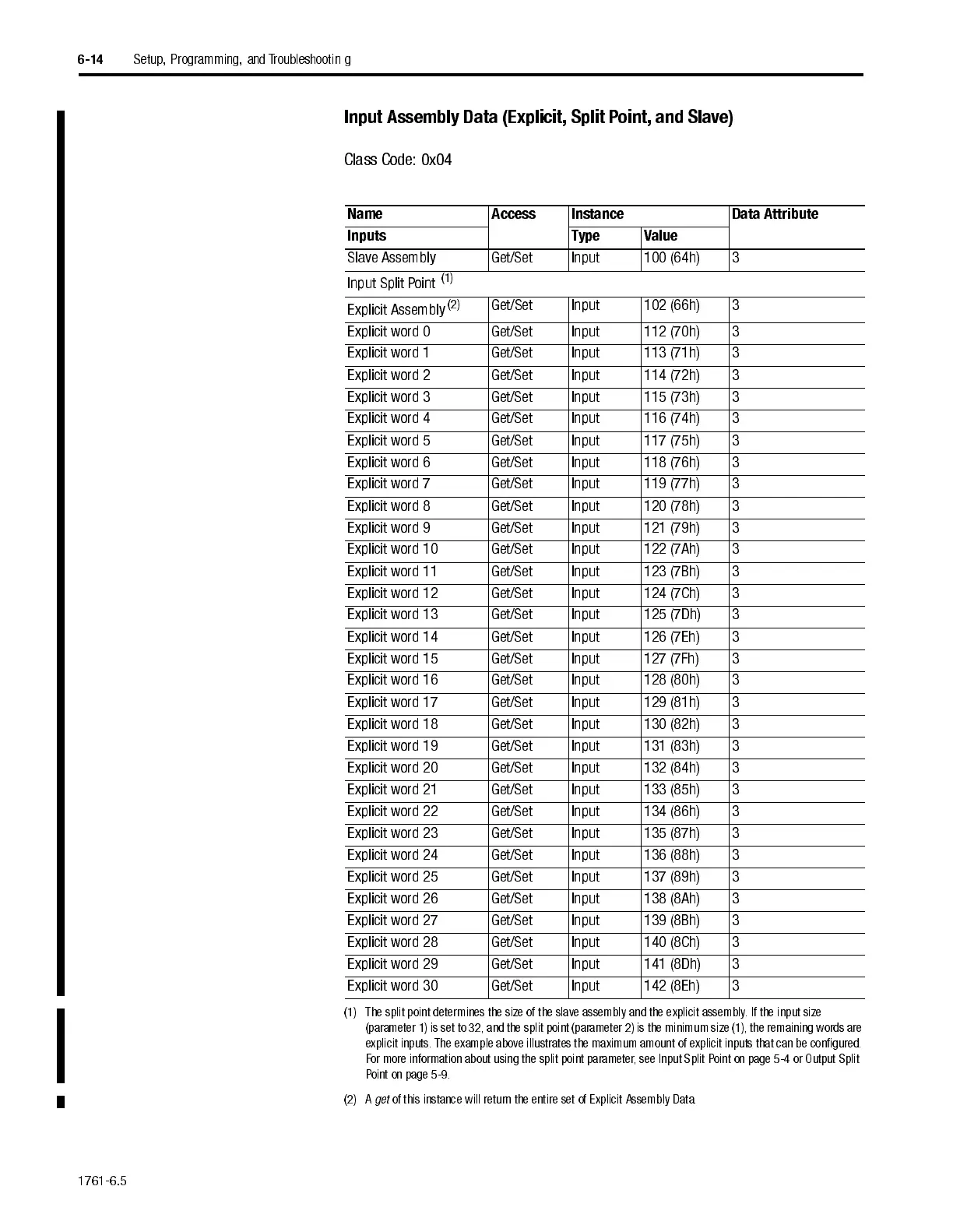

Input Assembly Data (Explicit, Split Point, and Slave)
Class Code: 0x04
Name Access Instance Data Attribute
Inputs Type Value
Slave Assembly Get/Set Input 100 (64h) 3
Input Split Point
(1)
(1) The split point determines the size of the slave assembly and the explicit assembly. If the input size
(parameter 1) is set to 32, and the split point (parameter 2) is the minimum size (1), the remaining words are
explicit inputs. The example above illustrates the maximum amount of explicit inputs that can be configured.
For more information about using the split point parameter, see Input Split Point on page 5-4 or Output Split
Point on page 5-9.
Explicit Assembly
(2)
(2) A
get
of this instance will return the entire set of Explicit Assembly Data.
Get/Set Input 102 (66h) 3
Explicit word 0 Get/Set Input 112 (70h) 3
Explicit word 1 Get/Set Input 113 (71h) 3
Explicit word 2 Get/Set Input 114 (72h) 3
Explicit word 3 Get/Set Input 115 (73h) 3
Explicit word 4 Get/Set Input 116 (74h) 3
Explicit word 5 Get/Set Input 117 (75h) 3
Explicit word 6 Get/Set Input 118 (76h) 3
Explicit word 7 Get/Set Input 119 (77h) 3
Explicit word 8 Get/Set Input 120 (78h) 3
Explicit word 9 Get/Set Input 121 (79h) 3
Explicit word 10 Get/Set Input 122 (7Ah) 3
Explicit word 11 Get/Set Input 123 (7Bh) 3
Explicit word 12 Get/Set Input 124 (7Ch) 3
Explicit word 13 Get/Set Input 125 (7Dh) 3
Explicit word 14 Get/Set Input 126 (7Eh) 3
Explicit word 15 Get/Set Input 127 (7Fh) 3
Explicit word 16 Get/Set Input 128 (80h) 3
Explicit word 17 Get/Set Input 129 (81h) 3
Explicit word 18 Get/Set Input 130 (82h) 3
Explicit word 19 Get/Set Input 131 (83h) 3
Explicit word 20 Get/Set Input 132 (84h) 3
Explicit word 21 Get/Set Input 133 (85h) 3
Explicit word 22 Get/Set Input 134 (86h) 3
Explicit word 23 Get/Set Input 135 (87h) 3
Explicit word 24 Get/Set Input 136 (88h) 3
Explicit word 25 Get/Set Input 137 (89h) 3
Explicit word 26 Get/Set Input 138 (8Ah) 3
Explicit word 27 Get/Set Input 139 (8Bh) 3
Explicit word 28 Get/Set Input 140 (8Ch) 3
Explicit word 29 Get/Set Input 141 (8Dh) 3
Explicit word 30 Get/Set Input 142 (8Eh) 3
