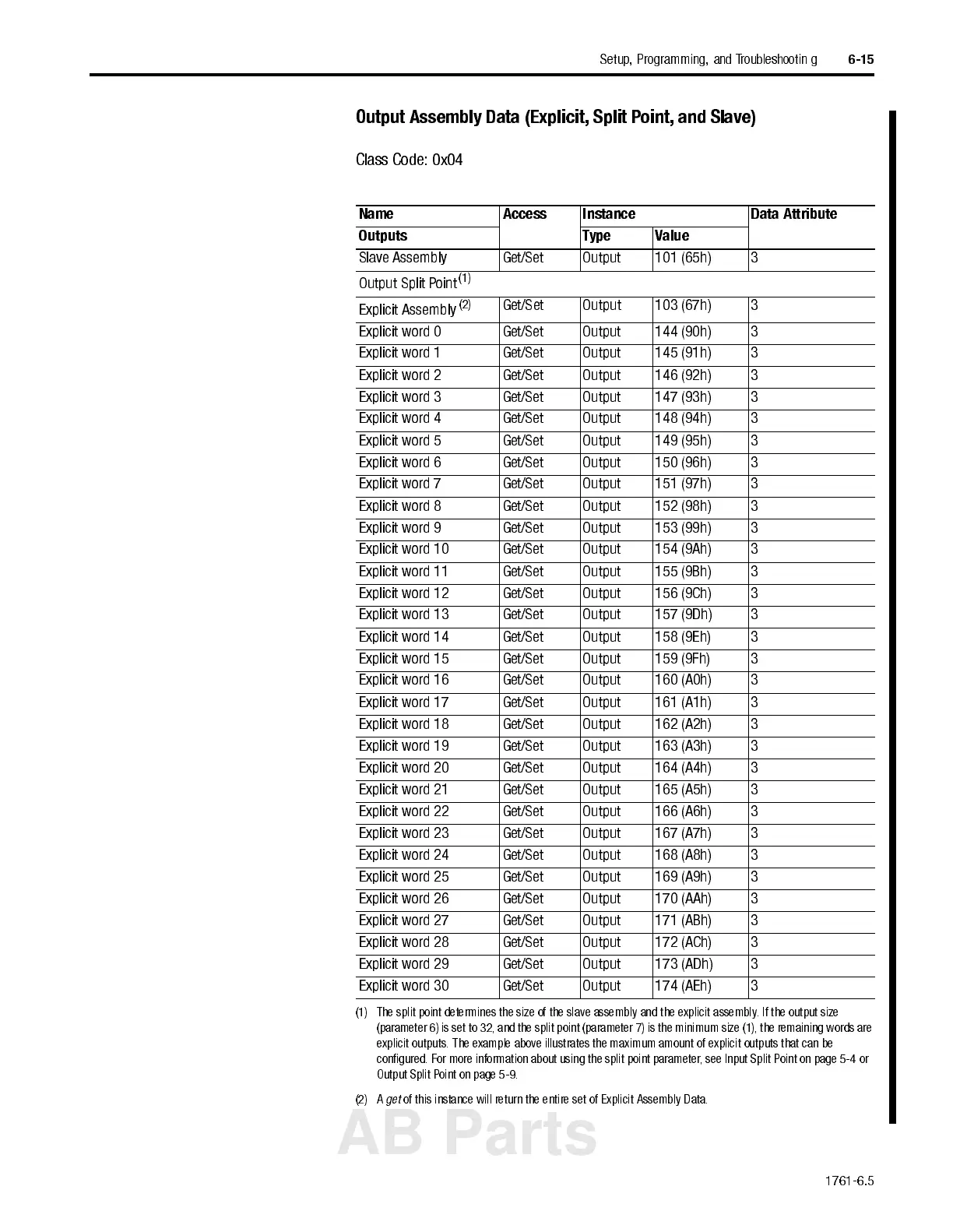

Output Assembly Data (Explicit, Split Point, and Slave)
Class Code: 0x04
Name Access Instance Data Attribute
Outputs Type Value
Slave Assembly Get/Set Output 101 (65h) 3
Output Split Point
(1)
(1) The split point determines the size of the slave assembly and the explicit assembly. If the output size
(parameter 6) is set to 32, and the split point (parameter 7) is the minimum size (1), the remaining words are
explicit outputs. The example above illustrates the maximum amount of explicit outputs that can be
configured. For more information about using the split point parameter, see Input Split Point on page 5-4 or
Output Split Point on page 5-9.
Explicit Assembly
(2)
(2) A
get
of this instance will return the entire set of Explicit Assembly Data.
Get/Set Output 103 (67h) 3
Explicit word 0 Get/Set Output 144 (90h) 3
Explicit word 1 Get/Set Output 145 (91h) 3
Explicit word 2 Get/Set Output 146 (92h) 3
Explicit word 3 Get/Set Output 147 (93h) 3
Explicit word 4 Get/Set Output 148 (94h) 3
Explicit word 5 Get/Set Output 149 (95h) 3
Explicit word 6 Get/Set Output 150 (96h) 3
Explicit word 7 Get/Set Output 151 (97h) 3
Explicit word 8 Get/Set Output 152 (98h) 3
Explicit word 9 Get/Set Output 153 (99h) 3
Explicit word 10 Get/Set Output 154 (9Ah) 3
Explicit word 11 Get/Set Output 155 (9Bh) 3
Explicit word 12 Get/Set Output 156 (9Ch) 3
Explicit word 13 Get/Set Output 157 (9Dh) 3
Explicit word 14 Get/Set Output 158 (9Eh) 3
Explicit word 15 Get/Set Output 159 (9Fh) 3
Explicit word 16 Get/Set Output 160 (A0h) 3
Explicit word 17 Get/Set Output 161 (A1h) 3
Explicit word 18 Get/Set Output 162 (A2h) 3
Explicit word 19 Get/Set Output 163 (A3h) 3
Explicit word 20 Get/Set Output 164 (A4h) 3
Explicit word 21 Get/Set Output 165 (A5h) 3
Explicit word 22 Get/Set Output 166 (A6h) 3
Explicit word 23 Get/Set Output 167 (A7h) 3
Explicit word 24 Get/Set Output 168 (A8h) 3
Explicit word 25 Get/Set Output 169 (A9h) 3
Explicit word 26 Get/Set Output 170 (AAh) 3
Explicit word 27 Get/Set Output 171 (ABh) 3
Explicit word 28 Get/Set Output 172 (ACh) 3
Explicit word 29 Get/Set Output 173 (ADh) 3
Explicit word 30 Get/Set Output 174 (AEh) 3
