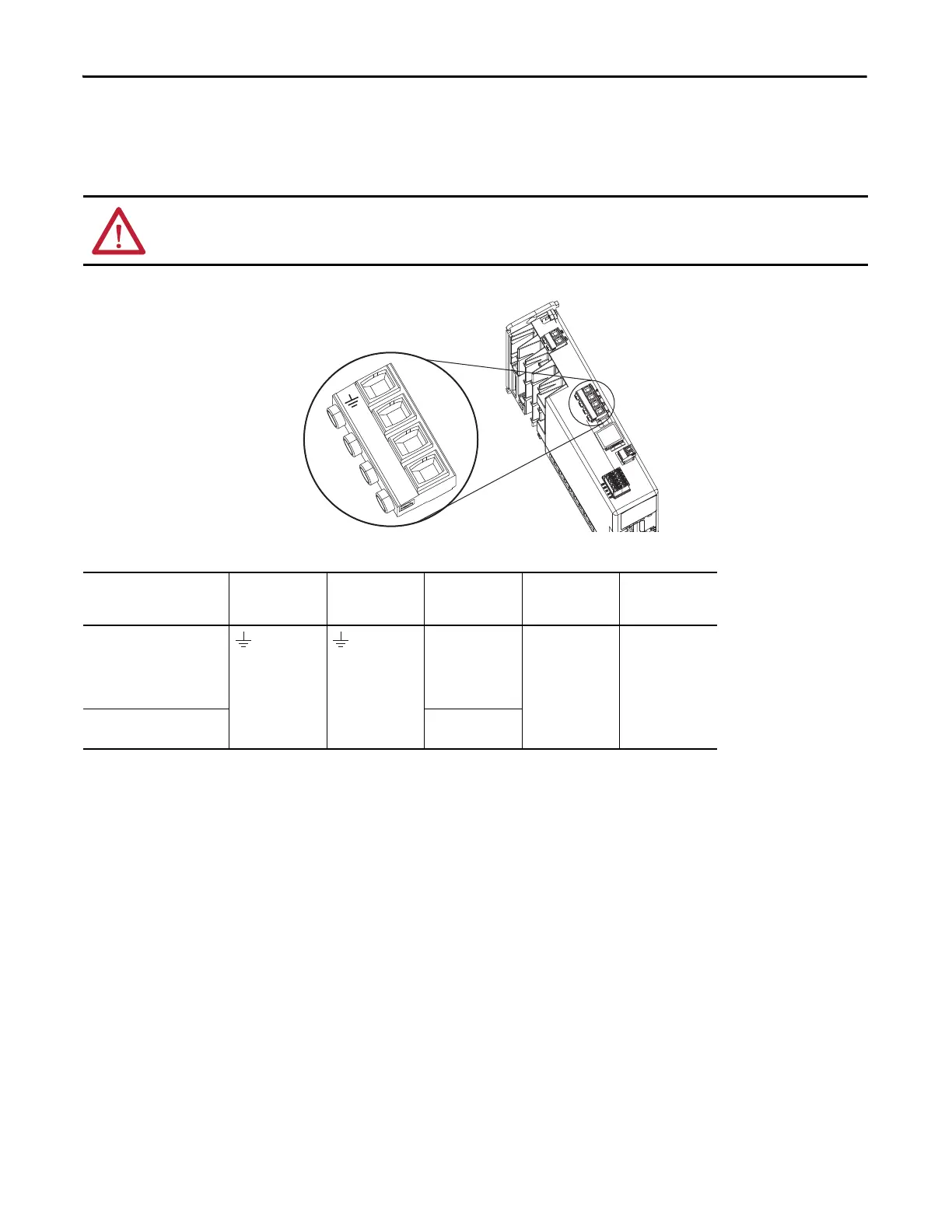

22 Rockwell Automation Publication IASIMP-QS035B-EN-P - April 2015
Chapter 1 Prepare the Kinetix 5500 Drive Hardware
Wire the Input Power Connector
The input power (IPD) connector requires 195…528V AC (single-phase or three-phase) for mains input power.
Table 4 - Input Power (IPD) Connector Specifications
ATTENTION: Make sure that the input power connections are correct when wiring the IPD connector plug and that the plug is fully
engaged in the drive connector. Incorrect wiring/polarity or loose wiring can cause explosion or damage to equipment.
L3
L2
L1
Remove
For DC
Bus Only
Kinetix 5500 Drive
Top View
Input Power (IPD) Connector Plug
Kinetix 5500 Drive
Cat. No.
Pin Signal Recommended
Wire Size
mm
2
(AWG)
Strip Length
mm (in.)
Torque Value
N•m (lb•in)
2198-H003-ERS
2198-H008-ERS
2198-H015-ERS
2198-H025-ERS
2198-H040-ERS
1.5…4
(16…12)
8.0 (0.31) 0.5…0.6
(4.4…5.3)
2198-H070-ERS 1.5…6
(16…10)
L3
L2
L1
L3
L2
L1
