Rockwell Automation Publication IASIMP-QS035B-EN-P - April 2015 39
Add a Kinetix 5500 Drive to a Logix Designer Application Chapter 1

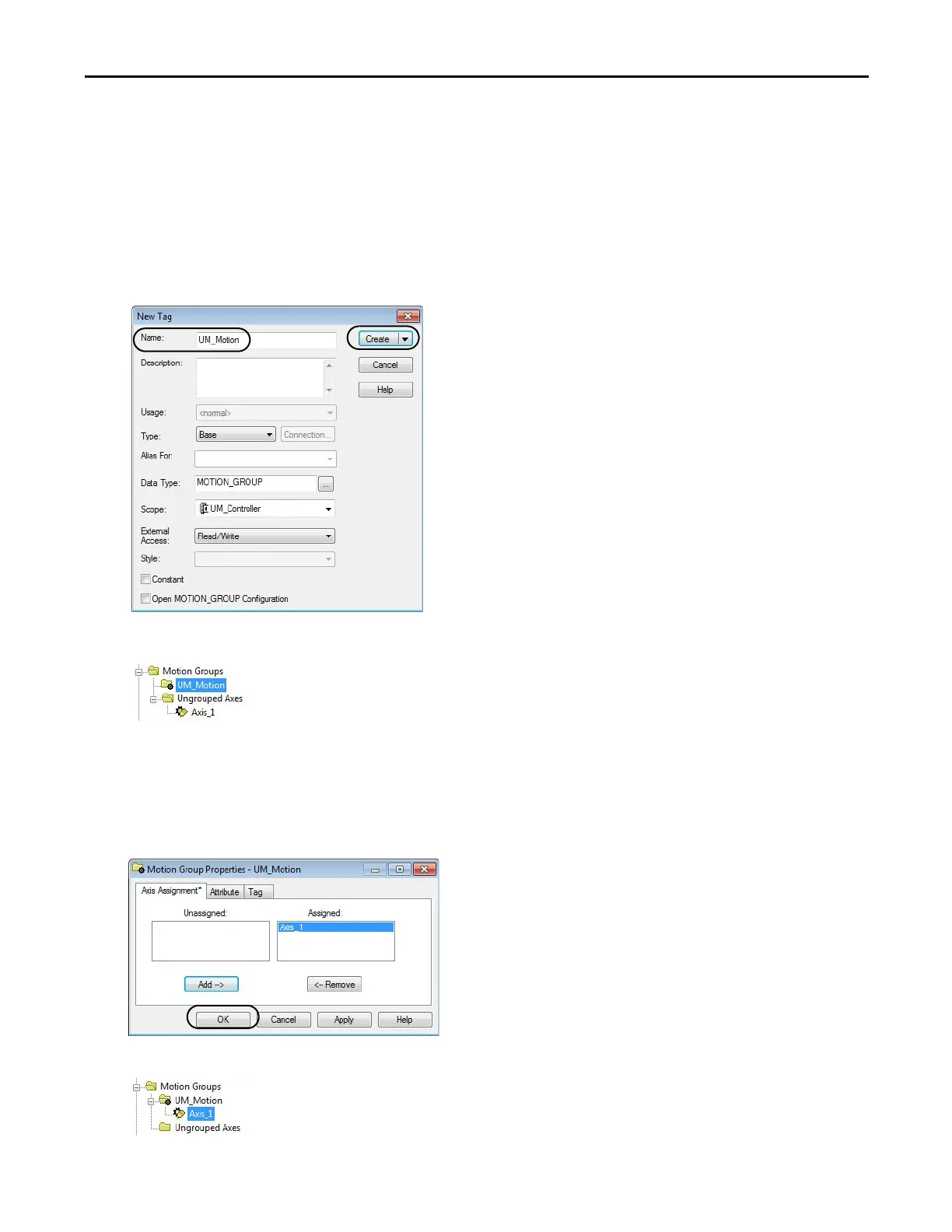

Configure the Motion Group
Follow these steps to configure the motion group.
1. In the Controller Organizer, right-click Motion Groups and choose New Motion Group.
The New Tag dialog box opens.
2. Type the new motion group Name.
3. Click Create.
Your new motion group appears in the Controller Organizer under the Motion Groups folder.
4. Right-click the new motion group and choose Properties.
The Motion Group Properties dialog box opens.
5. Click the Axis Assignment tab and move your axes (created earlier) from Unassigned to Assigned.
6. Click OK.
Your axis moves to the new motion group.
