16 Rockwell Automation Publication IASIMP-QS035B-EN-P - April 2015
Chapter 1 Prepare the Kinetix 5500 Drive Hardware
Mount the Kinetix 5500 Drive
1. Verify that you have met the minimum clearance requirements that are required for mounting your
2198-Hxx
x-ERS servo drive.
• Additional clearance is required for cables and wires or the shared-bus connection system that is connected to the
t
op of the drive.
• Additional clearance is required if other devices are ins
talled above and/or below the drive and have clearance
requirements of their own.
• Additional clearance left and right of the drive is required when mounted next to noise sensitive equipment or
clean w
ireways.
• The recommended minimum cabinet depth is 300 mm (11.81 in.).
Mount the drive in an upright position as shown. Do not mount the drive on its side.
Clearance right of the
drive is not required.
Clearance left of the
drive is not required.
Kinetix 5500
Servo Drive
40 mm (1.57 in.) clearance below
drive for airflow and installation
40 mm (1.57 in.) clearance above
drive for airflow and installation

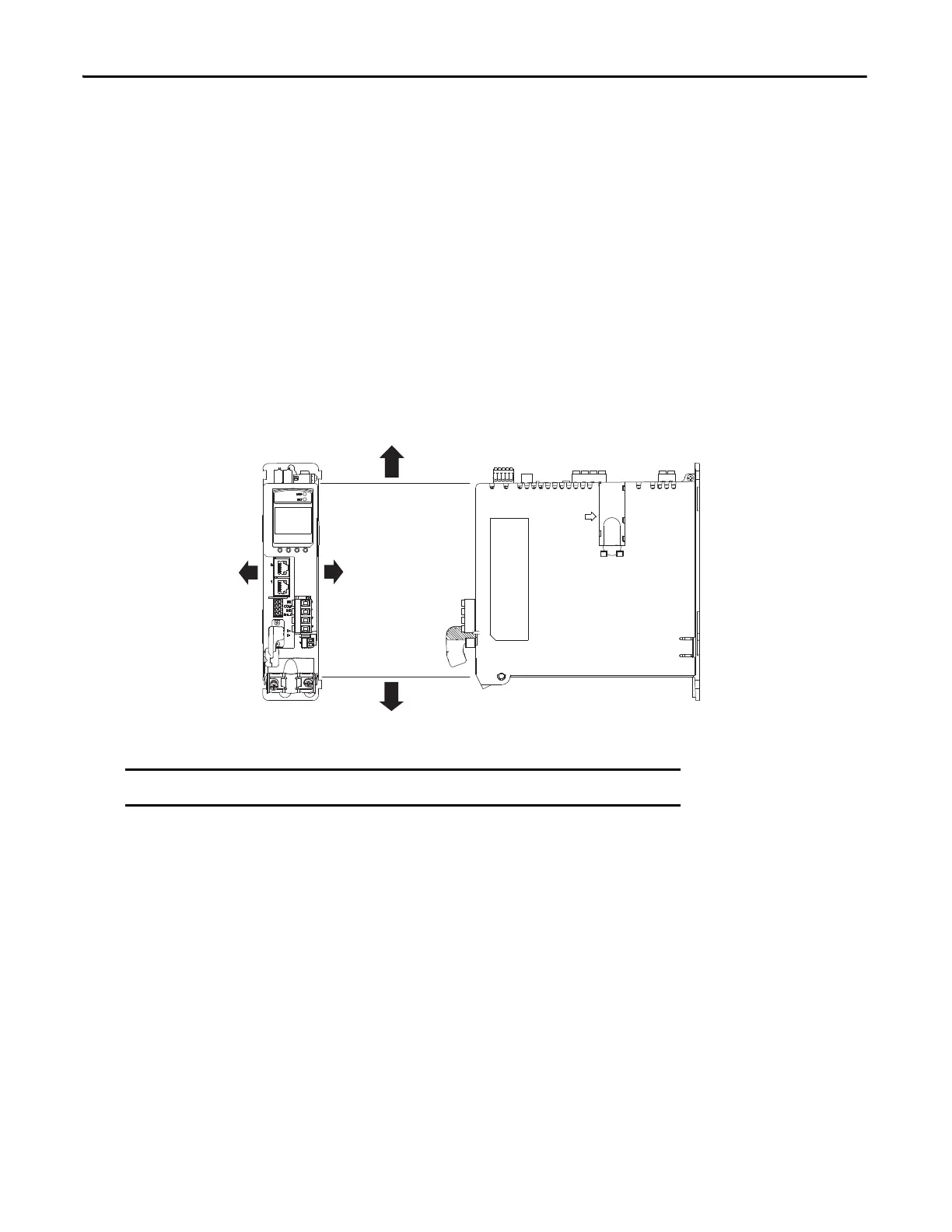

Figure 2 - Minimum Clearance
Requirements
