Allen-Bradley Kinetix 5500 series User Manual

Rockwell Automation Publication IASIMP-QS035B-EN-P - April 2015 17
Prepare the Kinetix 5500 Drive Hardware Chapter 1
Kinetix 5500 Drive 
Cat. No.
A
mm (in.)
B
mm (in.)
C
mm (in.)
D
mm (in.)
E
mm (in.)
2198-H003-ERS 50 (1.97) 170 (6.69) 200 (7.87) 226 (8.90) 215 (8.46)
2198-H008-ERS
2198-H015-ERS 55 (2.16) 225 (8.86) 265 (10.43)
2198-H025-ERS
2198-H040-ERS
2198-H070-ERS 85.2 (3.35) 250 (9.84) 294 (11.57)
E
D
C
A
3.0
(0.12)
B
Dimensions are in mm (in.)
2198-H003-ERS
servo drive is shown.

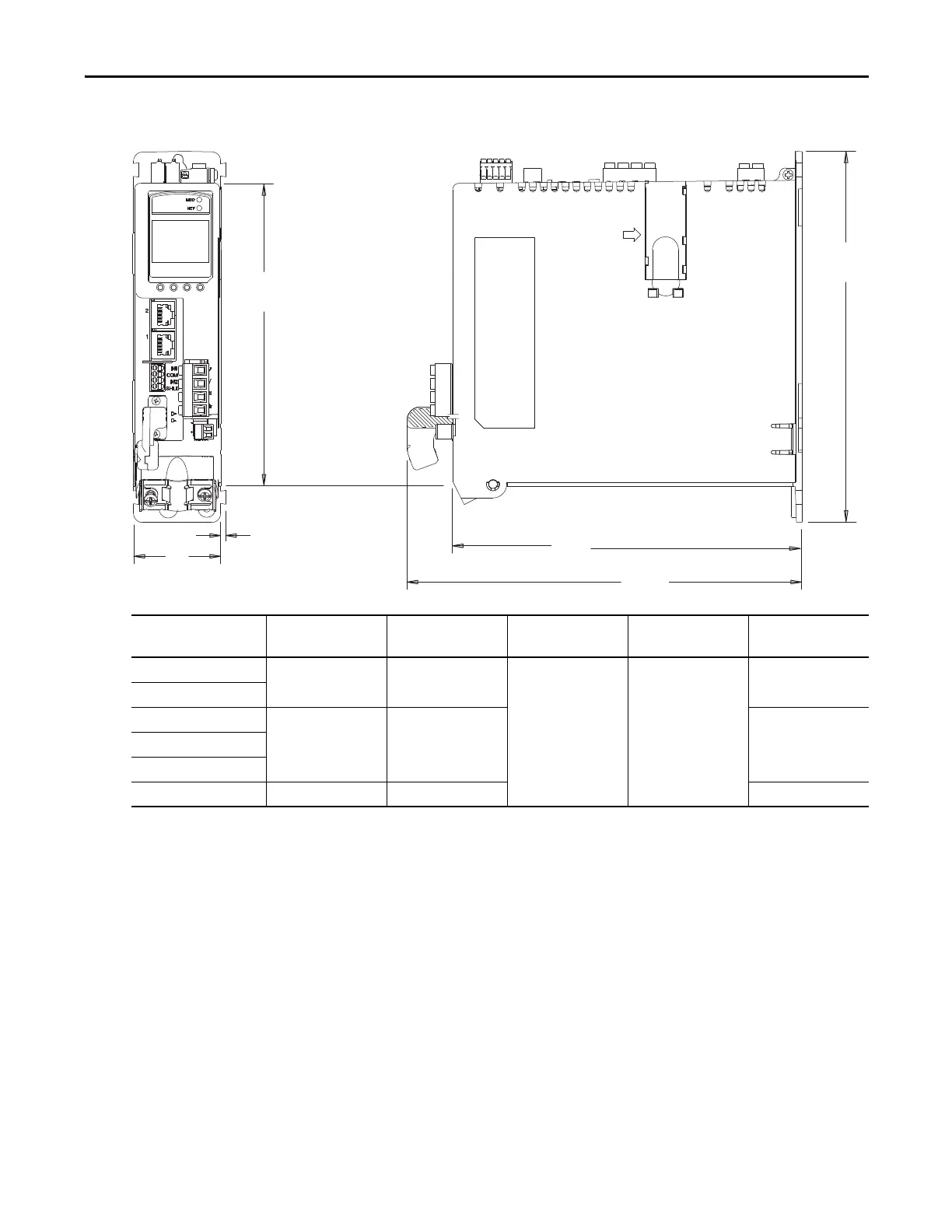

Figure 3 - Dimensions - Kinetix 5500 Servo Drives
