Publication 1734-UM011D-EN-P - May 2011
132 Quick Start
Configure the Adapter
In the 1734-AENT Module Properties dialog, perform the following steps.
1. Complete the Name field.
2. Enter the following address into the IP Address field: 192.168.1.42
You are setting the last digit, because the first three digits are set for you
as set by the push wheel switches on the adapter. The push wheel
switches should be set to 042.
3. From the Comm Format menu, choose None if you do not want a
rack-optimized connection, or choose Rack Optimization if you want a
rack-optimized connection.
4. For the Electronic Keying field, select Compatible Module.
5. Enter the Chassis Size.
Regarding chassis size, the POINT I/O adapter itself takes up a count
in the chassis. The default chassis size for the POINT I/O is 1, which
covers the adapter only and allows for no I/O. To configure your
POINTBus modules, set the chassis size to the physical amount of your
I/O modules plus one for the adapter; otherwise, you get an error. For
example, if you have six modules in the chassis, you must set chassis to
6+1=7.
6. Enter the Slot.
For the adapter itself, the slot number is always 0 and cannot be
modified.
7. Click Finish.

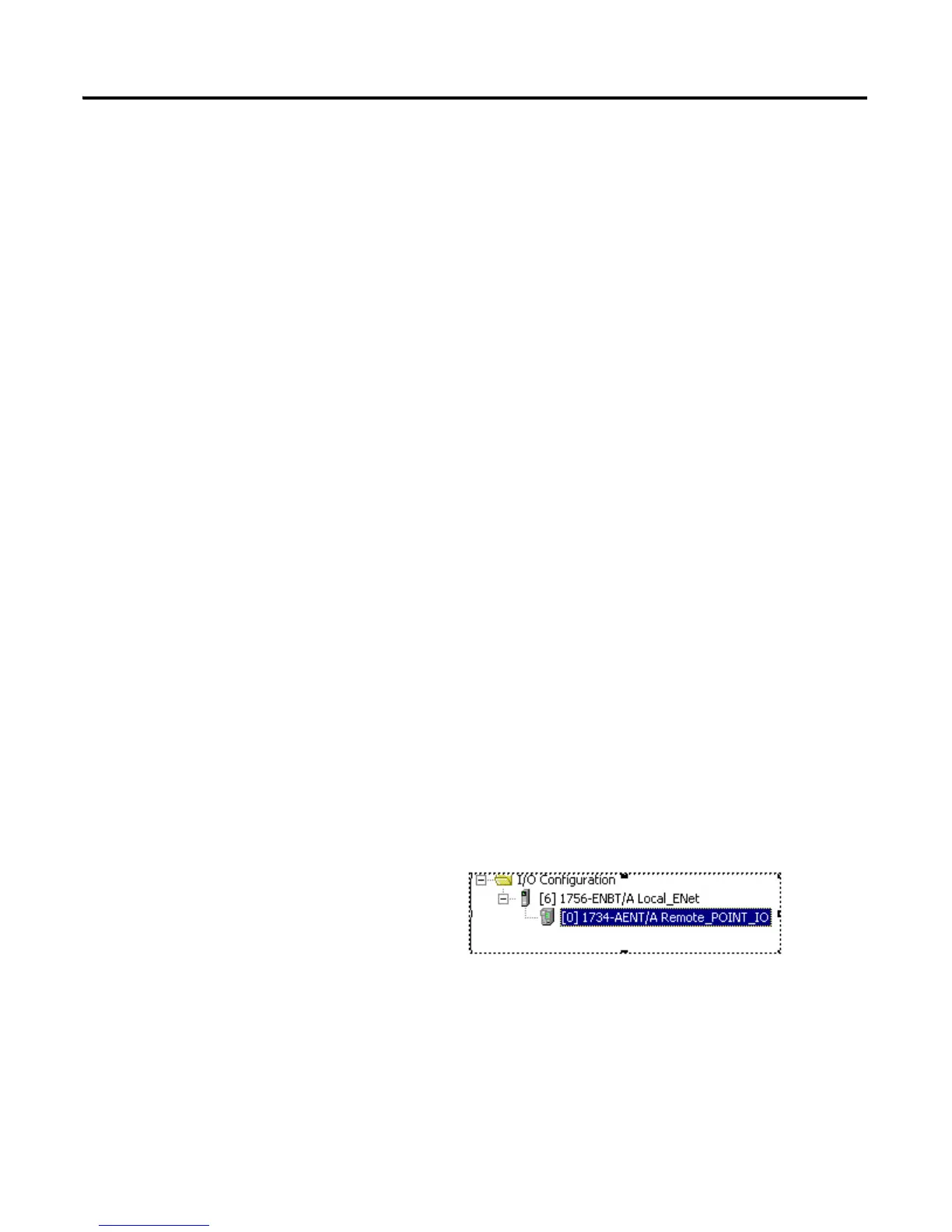

Your I/O Configuration tree now looks similar to the following:
