Allen-Bradley Rockwell Automation 1734-AENT User Manual

Publication 1734-UM011D-EN-P - May 2011
Quick Start 133
Enter Adapter Properties
Use this procedure to enter adapter properties.

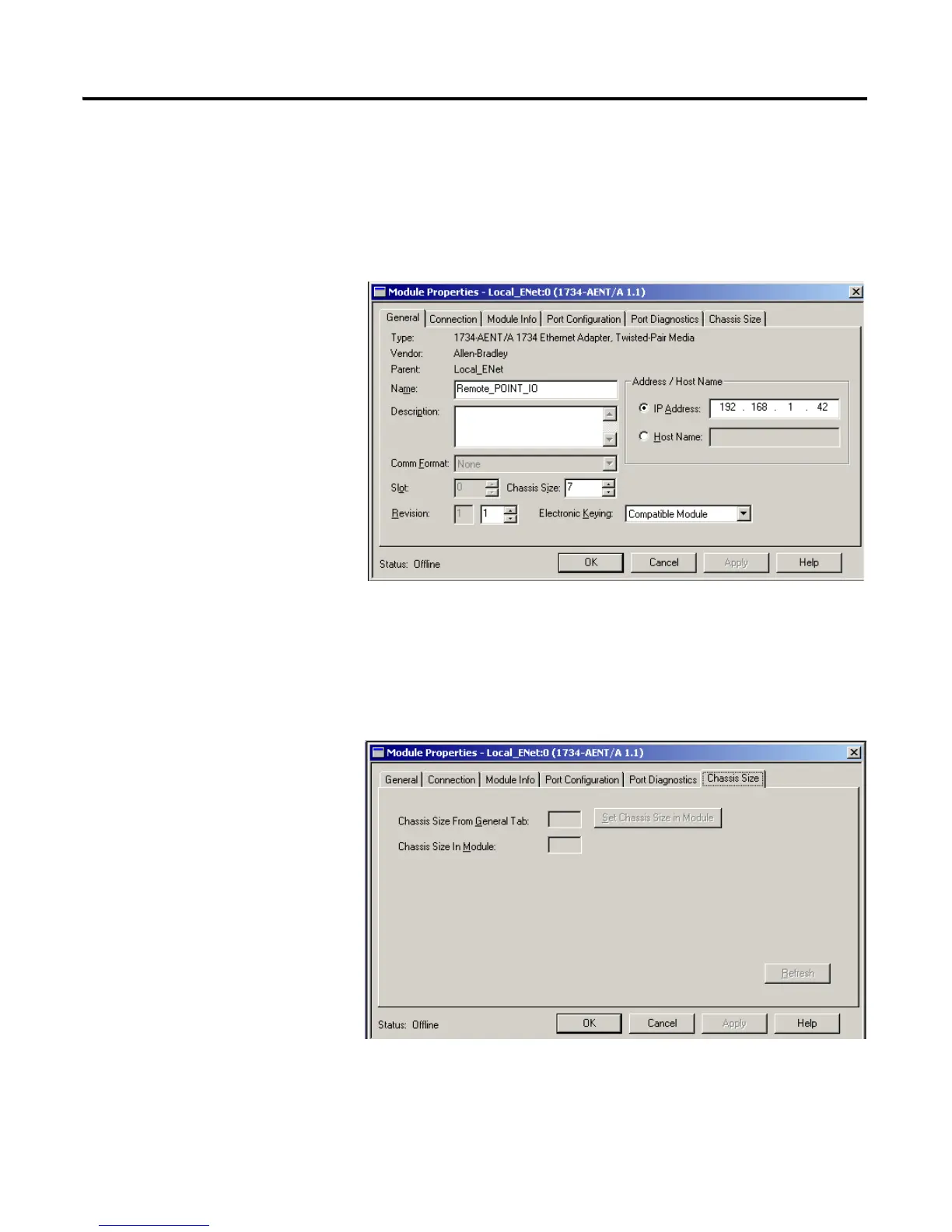

1. Right-click the 1734-AENT adapter and select Properties.
The Module Properties dialog appears.
2. Click the Chassis Size tab.
Notice that the data under this tab is dimmed while offline. Use the
Chassis Size tab to send the module size from the General tab to the
module itself once you are online. Otherwise, you get an error. We
explore this later. For now, click OK to close this dialog:
3. Right-click the POINT I/O adapter under I/O Configuration to add a
new module.
4. Select the module from the list and click OK.

Allen-Bradley Rockwell Automation 1734-AENT Specifications

General

Model	1734-AENT
Category	Network Hardware
Type	EtherNet/IP Adapter
Ethernet Ports	2
IP Addressing	Static or DHCP
Network Address	Configurable via software
Mounting	DIN rail
Number of Ports	2
Port Type	RJ45
Communication Protocol	EtherNet/IP
Manufacturer	Rockwell Automation
Power Supply	24V DC
Enclosure	Open-style
