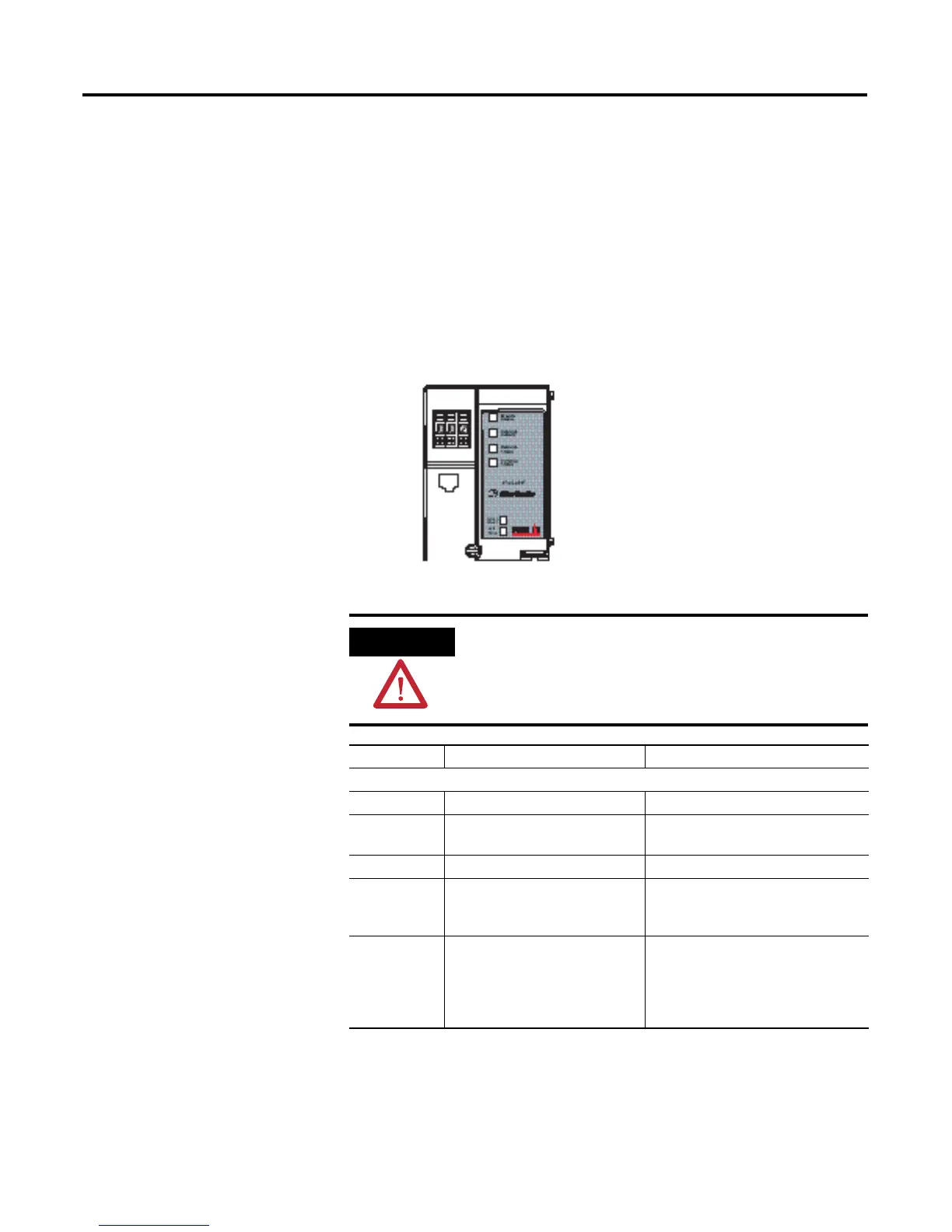

Chapter 6
LED Status Indicators
What This Chapter Contains
Read this chapter for information about LED status indicators.
Interpret the Status Indicators
ATTENTION
You must use series C POINT I/O modules with the
1734-AENT adapter. Series A or B POINT I/O modules will
not work with this adapter.
Indication Probable Cause Recommended Action
Module Status
Off No power applied to device Apply power to the device.
Flashing
red/green
LED cycle power test (module
self-test) present.
None
Solid green Device is operating normally. None
Flashing red Recoverable fault has occurred:
Firmware (NVS) update present.
Address switches changed.
Complete firmware update.
Verify address switches.
Solid red Unrecoverable fault has occurred:
Self-test failure present
(checksum failure, or RAMtest
failure at cycle power).
Firmware fatal error present.
Replace adapter.
System Power
Field Power
43248aent
Module Status
Network Activity
Network Status
POINTBus Status

Allen-Bradley Rockwell Automation 1734-AENT Specifications

General

Model	1734-AENT
Category	Network Hardware
Type	EtherNet/IP Adapter
Ethernet Ports	2
IP Addressing	Static or DHCP
Network Address	Configurable via software
Mounting	DIN rail
Number of Ports	2
Port Type	RJ45
Communication Protocol	EtherNet/IP
Manufacturer	Rockwell Automation
Power Supply	24V DC
Enclosure	Open-style
