Publication 1734-UM011D-EN-P - May 2011
Adapter Web Pages 75
Use the Diagnostic Messaging Page
To use the Diagnostic Messaging page to execute explicit, unconnected
message services, use this procedure.
1. From the Web page, click the Diagnostic Messaging tab at the top of the
page or panel on the left.

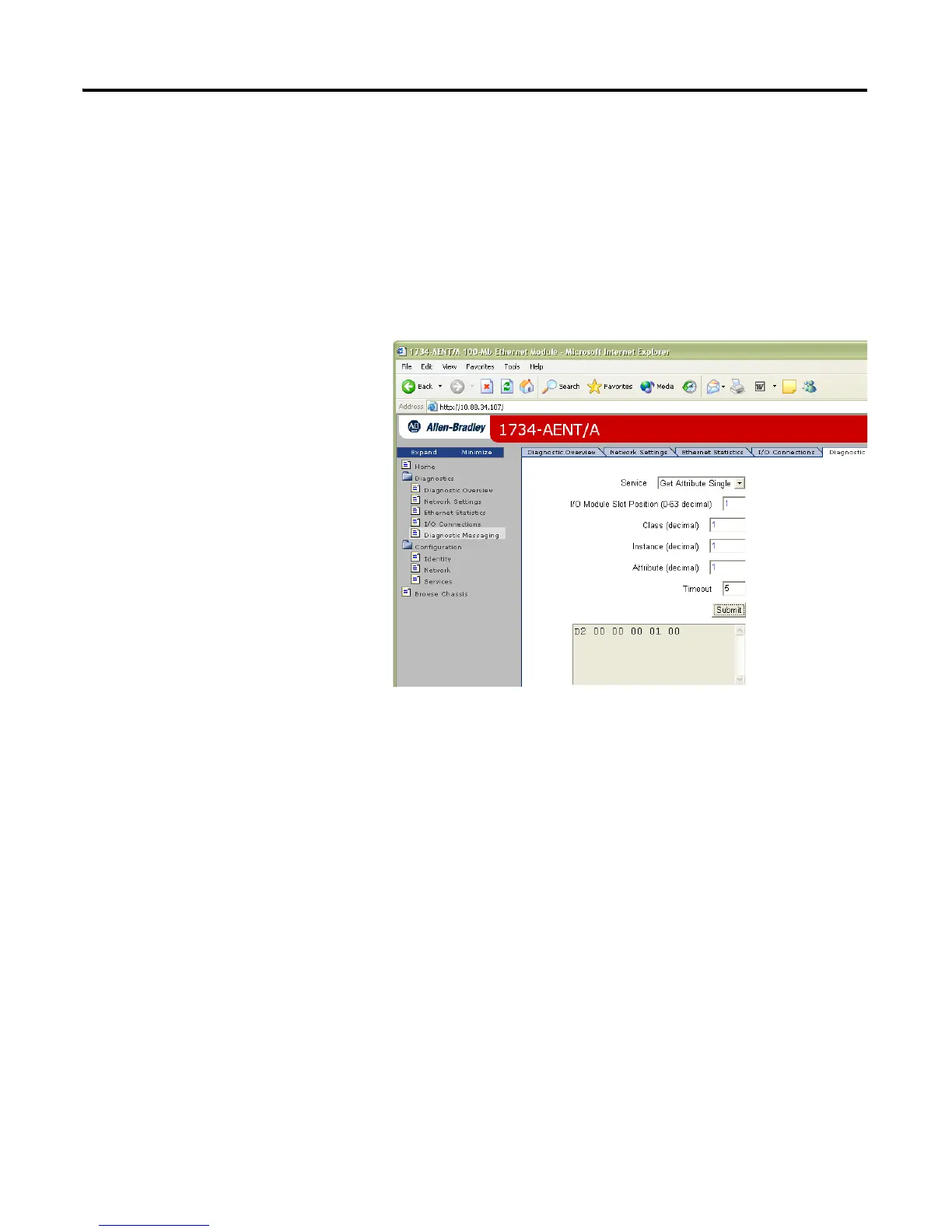

The Diagnostic Messaging tab opens.
2. From the Diagnostic Messaging tab, enter the following:
Service – choose either Get Attribute Single or Get Attributes All
I/O Module Slot Position (0…63 decimal)
Class (decimal)
Instance (decimal)
Attribute (decimal)
•Timeout
