Publication 1734-UM011D-EN-P - May 2011
10 Install the Adapter

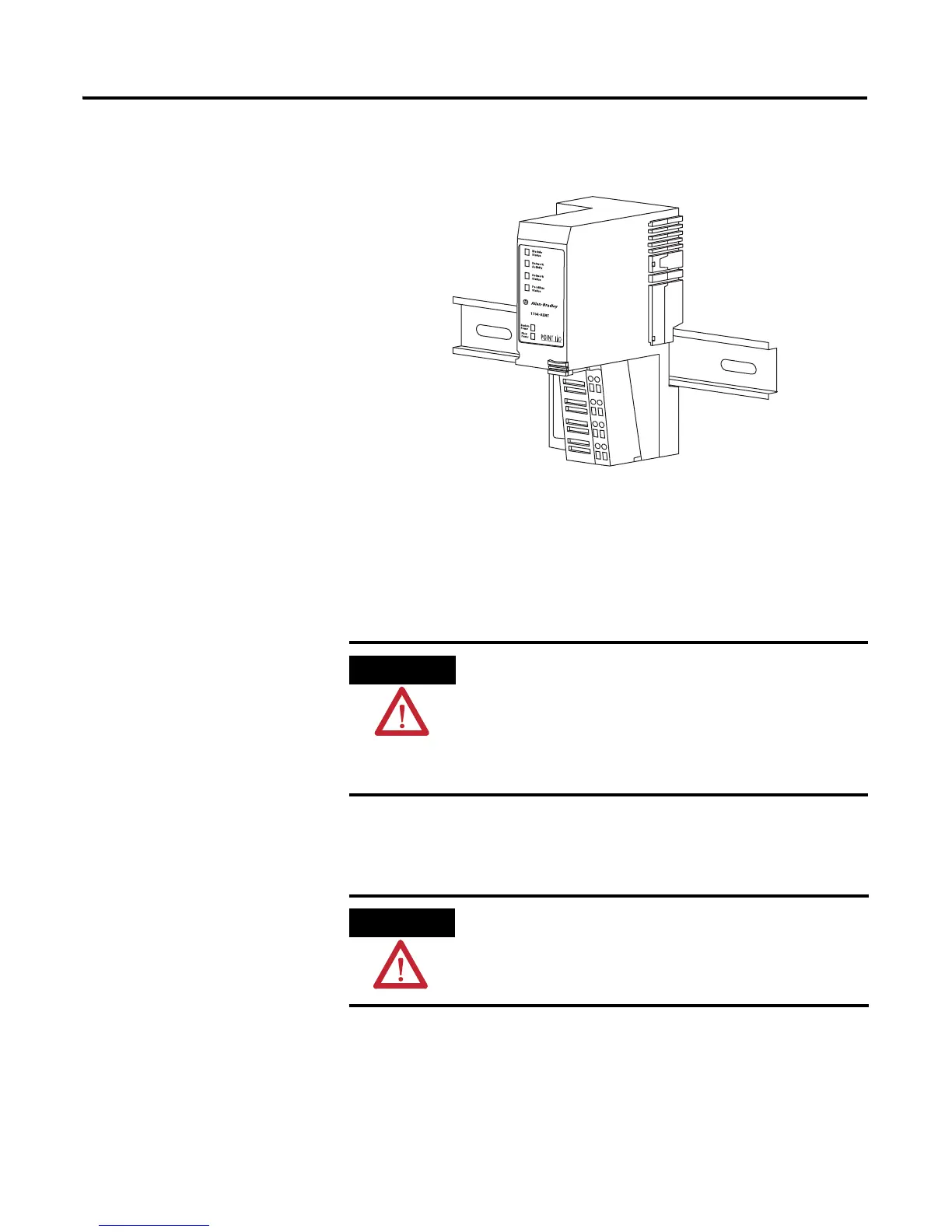

Mount the Adapter on a DIN
Rail Before Installing
Modules
Use the following procedure to mount the adapter on a new system before you
install any I/O modules.
1. Position the adapter vertically above the DIN rail.
2. Press down firmly to install the adapter on the DIN rail, noting that the
locking mechanism locks the adapter to the DIN rail.
3. Set the network address thumbwheel switches to the desired value. For
more information, see Set the Network Address on page19.
4. Slide the safety end cap up to remove it.
This exposes the backplane and power interconnections.
WARNING
If you connect or disconnect the Ethernet cable with power
applied to this module or any device on the network, an
electrical arc can occur. This could cause an explosion in
hazardous location installations.
Be sure that power is removed or the area is nonhazardous
before proceeding.
ATTENTION
Do not discard the adapter’s end cap. Use this end cap to cover
the exposed interconnections on the last mounting base on the
DIN rail. Failure to do so could result in equipment damage or
injury from electric shock.
43520
