Publication 1734-UM011D-EN-P - May 2011
Adapter Web Pages 69
3. From the Home page, complete one of these, as desired.
• Click one of these to go to http://www.ab.com/
.
– Allen-Bradley logo at the top of the page
– Visit ab.com
for additional information statement under Resources
• Click Rockwell Automation at the top right to go to
http://www.rockwellautomation.com/
.
• Click these to see additional diagnostics Web pages.
– Diagnostics – Diagnostic overview, Network Settings,
Ethernet Statistics, I/O Connections, Diagnostic messaging
– Configuration - Identity, Network, Services
– Browse chassis
Work with the Diagnostics
Pages
To work with the Diagnostics options, follow these procedures.
1. From the Home page, click Diagnostics or Expand to see the following
diagnostics options from the panel at the left.
• Diagnostic overview
• Network settings
• Ethernet statistics
•I/O connections
• Diagnostic messaging

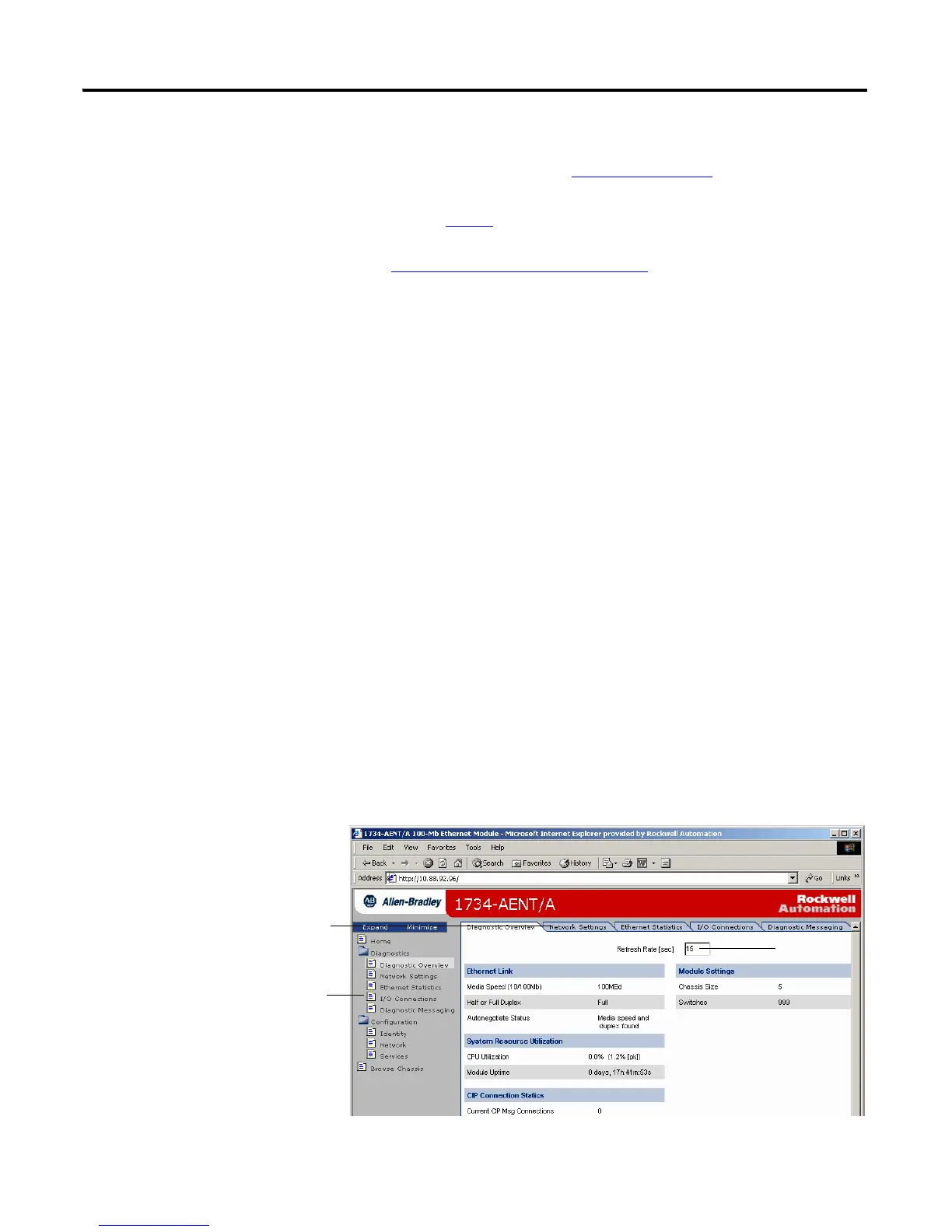

2. From from the top of the page, as shown in the figure, if desired, type a
refresh rate, noting that the default is 15 seconds.
3. From the panel at the left or tabs at the top of the page, as shown in the
figure, click one of the diagnostics options to see the corresponding
page.
Click tabs to see the
corresponding page.
Click from this panel
to see the
corresponding page.
Type a
refresh rate.
