Allen-Bradley Rockwell Automation 1734-AENT User Manual

Publication 1734-UM011D-EN-P - May 2011
68 Adapter Web Pages

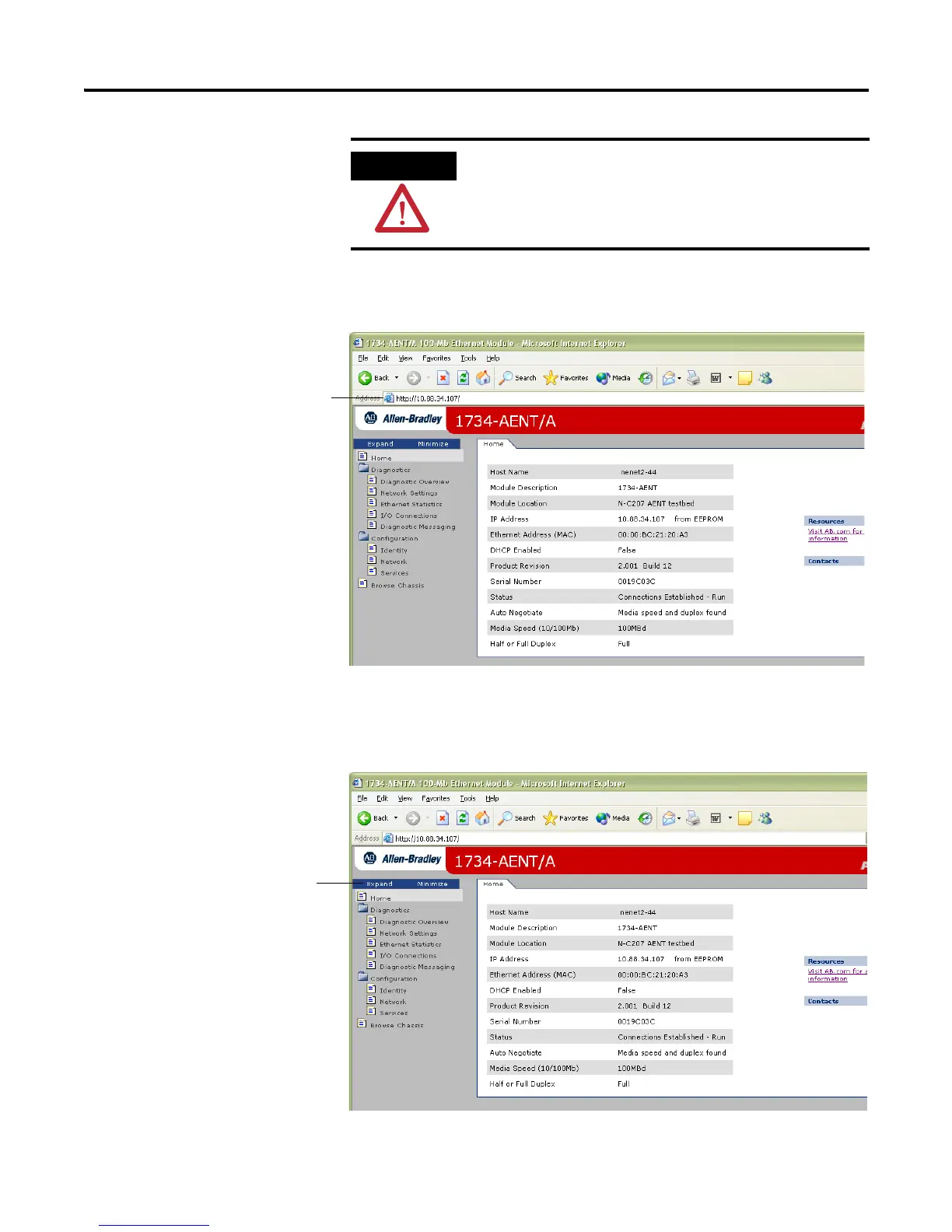

1. From a browser such as Netscape or Microsoft Internet Explorer, enter
the adapter IP address to see the Home page.
2. From the Home page, click Expand to expand options, as in the figure,
or Minimize to see Diagnostics, Configuration, and Browse Chassis
options without the expansion.
ATTENTION
You must use Series C POINT I/O modules with the 1734-AENT
adapter. Series A or B POINT I/O modules will not work with
this adapter.
Enter the adapter IP
address to see the
Home page.
Click Expand to
expand options.

Allen-Bradley Rockwell Automation 1734-AENT Specifications

General

Model	1734-AENT
Category	Network Hardware
Type	EtherNet/IP Adapter
Ethernet Ports	2
IP Addressing	Static or DHCP
Network Address	Configurable via software
Mounting	DIN rail
Number of Ports	2
Port Type	RJ45
Communication Protocol	EtherNet/IP
Manufacturer	Rockwell Automation
Power Supply	24V DC
Enclosure	Open-style
