Allen-Bradley Rockwell Automation 1734-AENT User Manual

Publication 1734-UM011D-EN-P - May 2011
Configure the Adapter for Direct Connection and Rack Optimization in RSLogix 5000 Software 47
Create the Example
Application

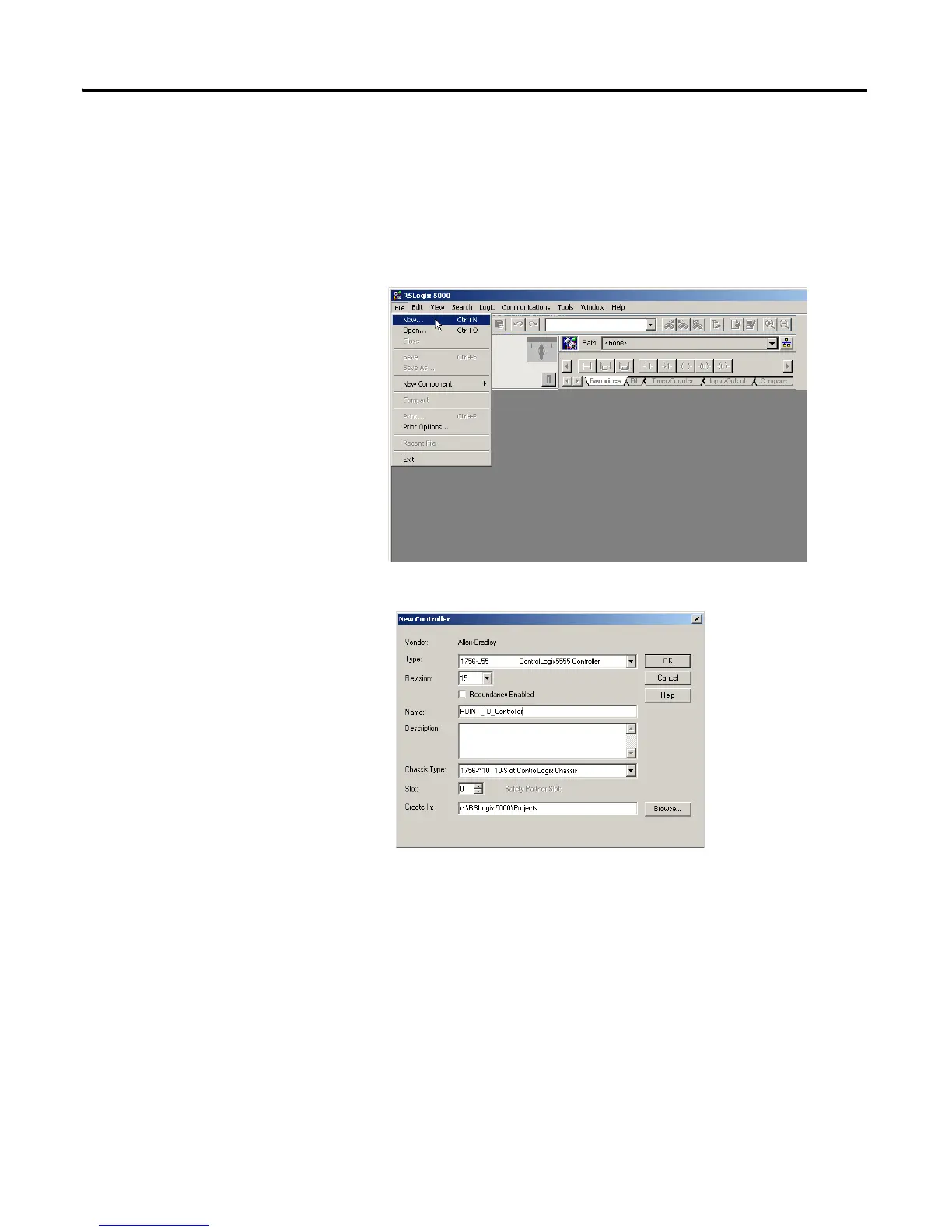

Perform the following steps to create the example application:
1. Start the RSLogix 5000 Enterprise Series software.
You see the RSLogix 5000 main dialog.
2. From the File menu, select New.
The New Controller dialog opens.
3. Enter an appropriate Name for the Controller, for example,
POINT_IO_Controller.
4. Specify the following.
• Revision
• Chassis Type
•Slot number
• Description (optional)
5. Complete the Create In entry by selecting the folder where you want to
save the RSLogix 5000 file.

Allen-Bradley Rockwell Automation 1734-AENT Specifications

General

Model	1734-AENT
Category	Network Hardware
Type	EtherNet/IP Adapter
Ethernet Ports	2
IP Addressing	Static or DHCP
Network Address	Configurable via software
Mounting	DIN rail
Number of Ports	2
Port Type	RJ45
Communication Protocol	EtherNet/IP
Manufacturer	Rockwell Automation
Power Supply	24V DC
Enclosure	Open-style
