50 Configure the Adapter for Direct Connection and Rack Optimization in RSLogix 5000 Software

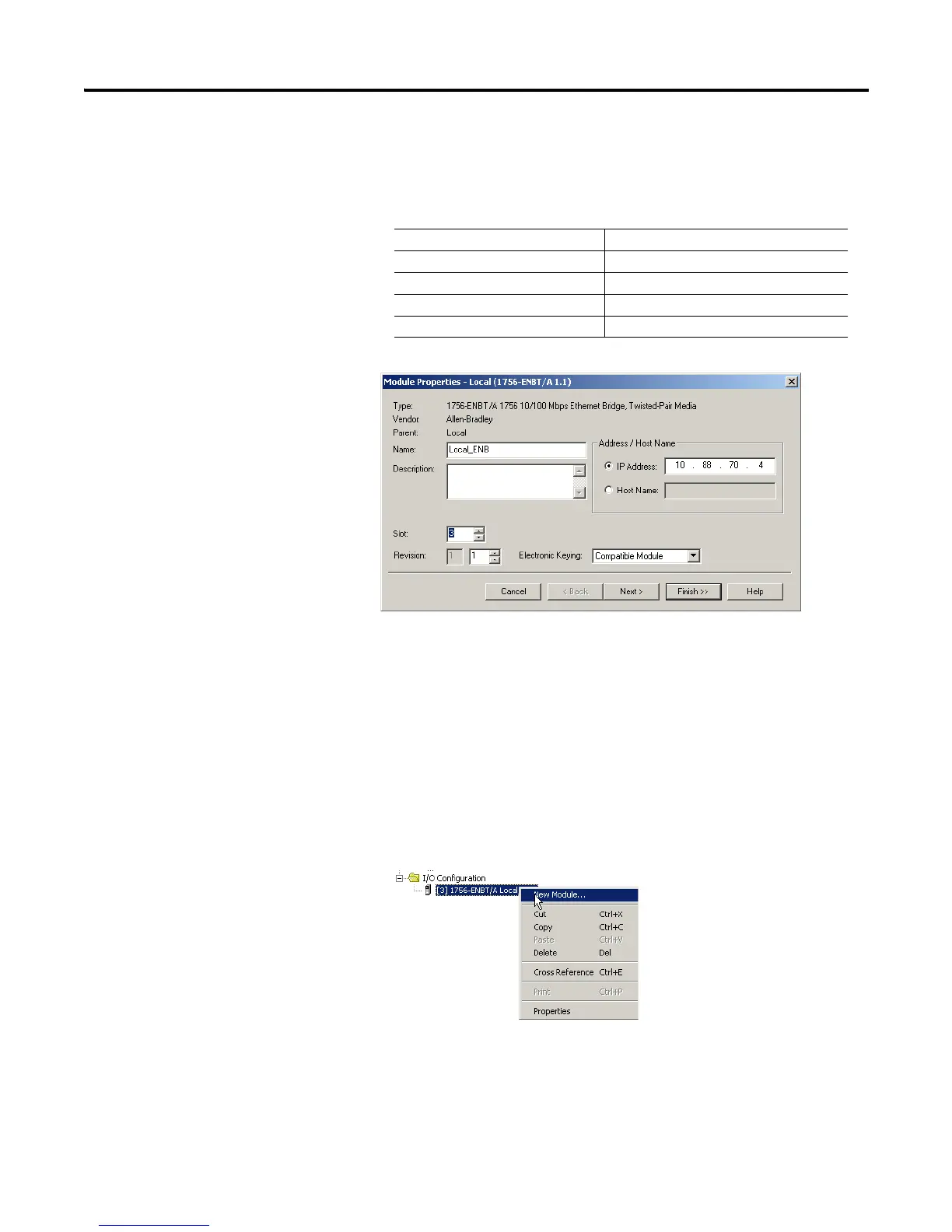

The Module Properties dialog opens.
6. Enter values for Name, IP Address, Slot, Electronic Keying, and
Revision, noting we used the following values:
7. Click Finish to accept the configuration.
Add the POINT I/O Adapter to the I/O Configuration
Next, you must add the 1734-AENT adapter as a child of the local
1756-ENBT module.
1. In the Project dialog, right-click the local 1756-ENBT module under the
I/O Configuration folder, and select New Module from the dialog.
Name Local_ENB
IP Address 10.88.70.4
Slot 3
Electronic Keying Compatible Module
Revision 1.1
