36 Configure the Adapter for Direct Connection in RSLogix 5000 Software
Add the Digital Output Module

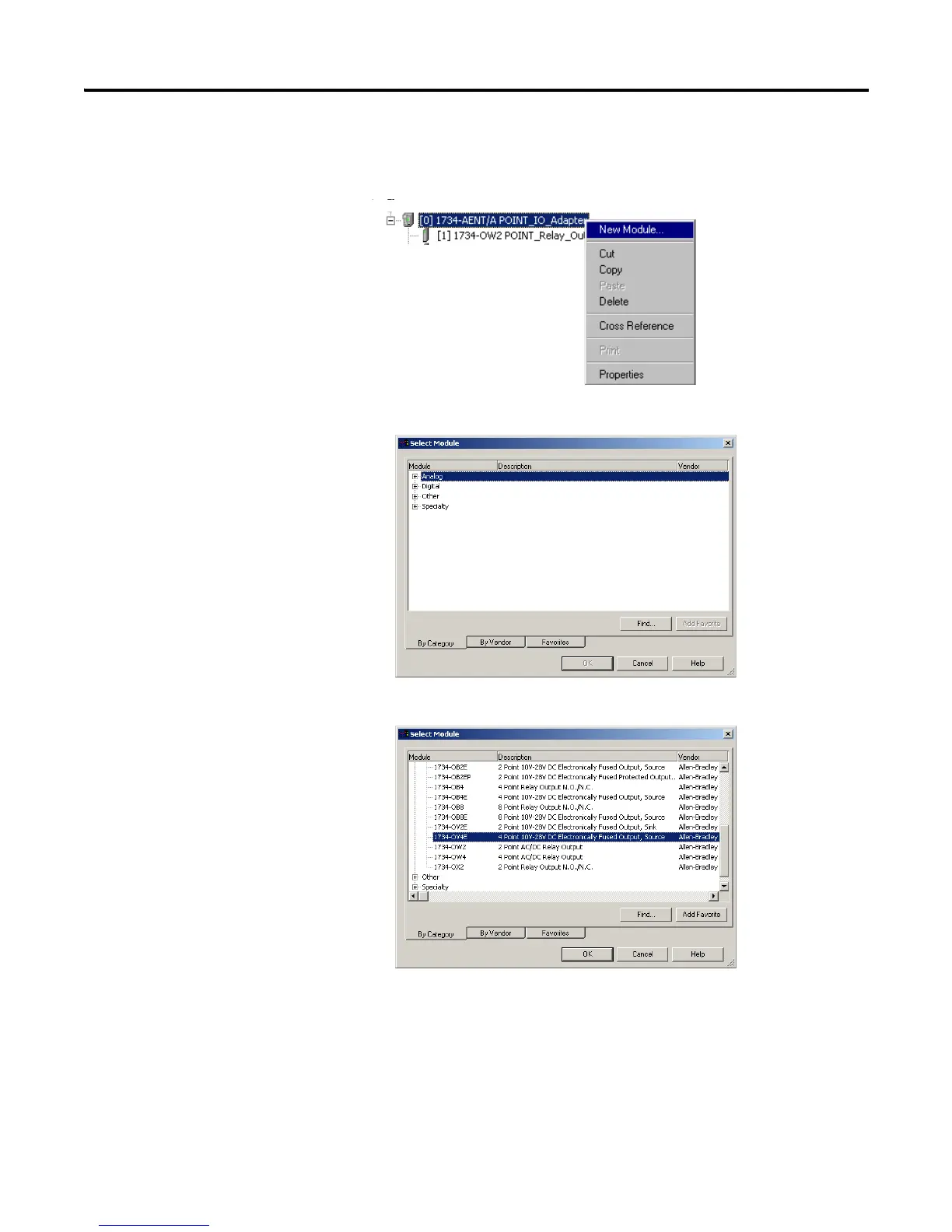

1. Right-click the 1734-AENT adapter, and select New Module.
The Select Module dialog opens.
2. Expand Digital to see the list of Digital modules..
3. Select the 1734-OV4E digital output module from the list.
4. Click OK.

Allen-Bradley Rockwell Automation 1734-AENT Specifications

General

Model	1734-AENT
Category	Network Hardware
Type	EtherNet/IP Adapter
Ethernet Ports	2
IP Addressing	Static or DHCP
Network Address	Configurable via software
Mounting	DIN rail
Number of Ports	2
Port Type	RJ45
Communication Protocol	EtherNet/IP
Manufacturer	Rockwell Automation
Power Supply	24V DC
Enclosure	Open-style
