Publication 1734-UM011D-EN-P - May 2011

Configure the Adapter for Direct Connection in RSLogix 5000 Software 41

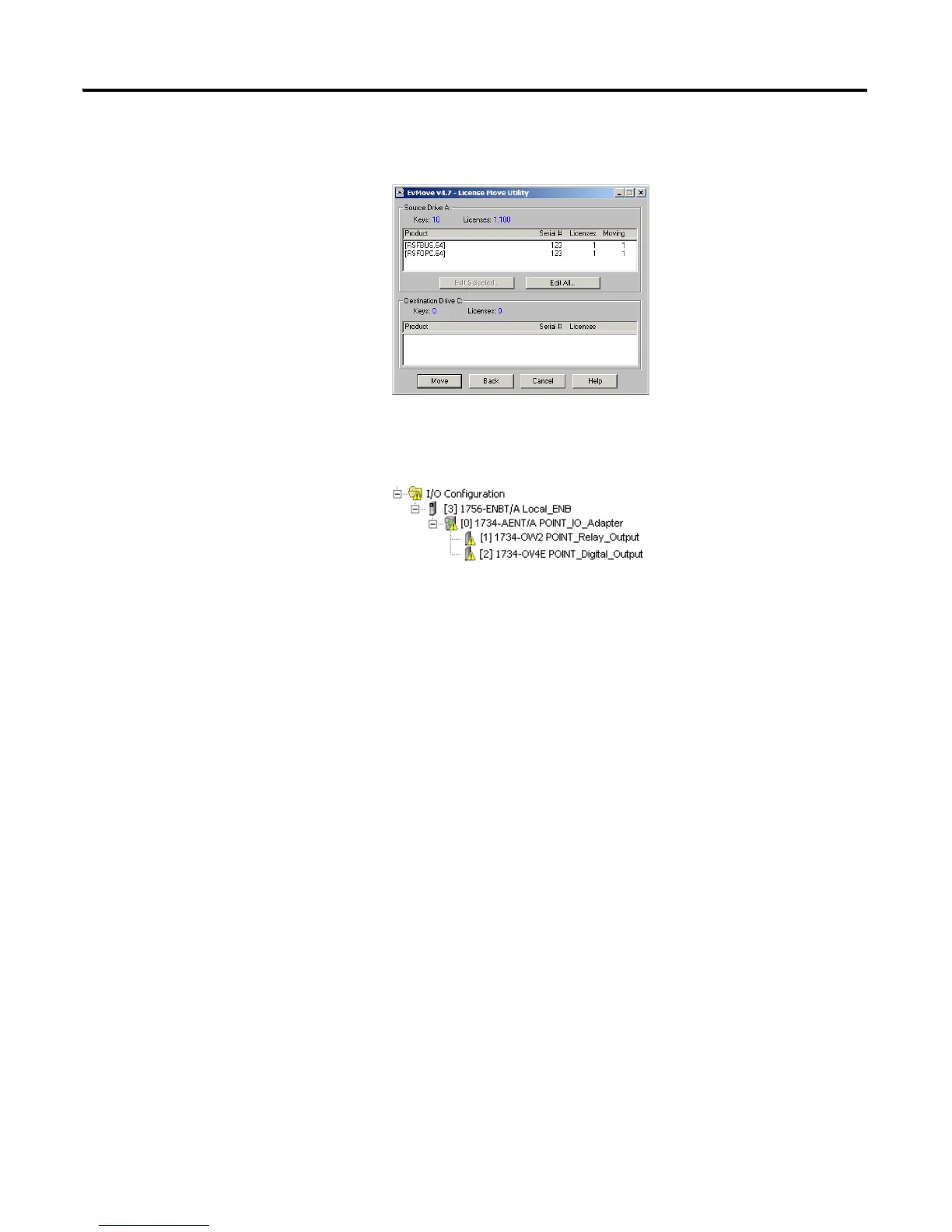

5. From the Download dialog, choose Download to see the RSLogix 5000

software dialog.

6. Notice that the 1756-ENBT Bridge is now online.

If yellow triangles are present, see the following section.

Verify the Module Chassis

Size

You have now built the I/O tree in RSLogix 5000 software, and the

RSLogix 5000 software used the chassis size from the 1734-AENT General

tab.

Now you need to download this new chassis size value into the 1734-AENT

adapter hardware. This procedure synchronizes the chassis size value from the

RSLogix 5000 software into the 1734-AENT adapter hardware.

1. Verify that RSLogix 5000 is online.

2. Right-click the 1734-AENT adapter under I/O Configuration in the

Project dialog.

3. Select Properties.

4. Click the Connection tab.
