Configure the Adapter for Direct Connection and Rack Optimization in RSLogix 5000 Software 53
7. Verify that the requested packet interval (RPI) is appropriate for your
system.
You use this value for the rack-optimized connection to the I/O
modules.
8. Click OK.
The 1734-AENT adapter appears in the Ethernet folder.

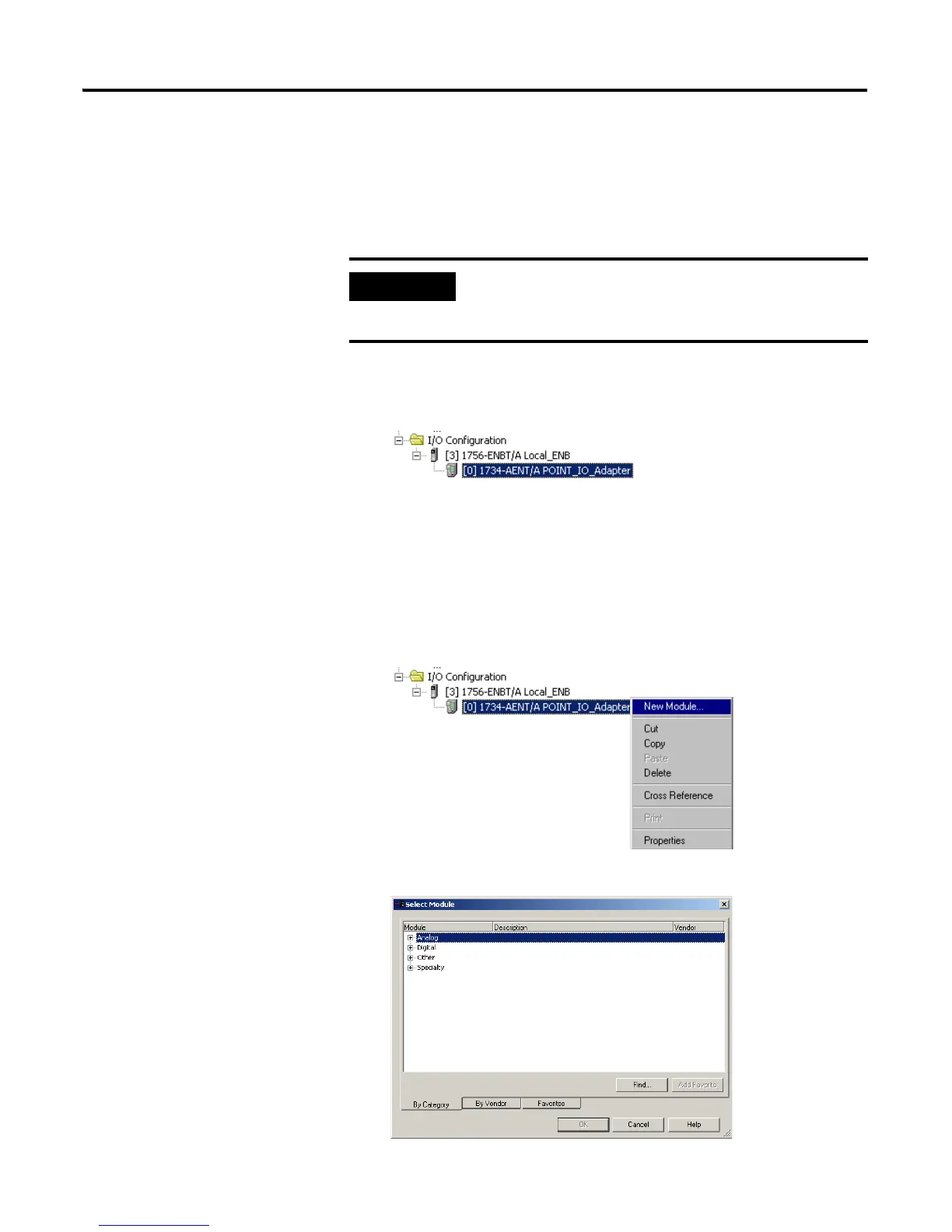

Add the POINT I/O Module and Configure for Direction
Connection
1. Highlight the 1734-AENT adapter under the I/O Configuration folder,
and select New Module.
The Select Module dialog opens.
IMPORTANT
To avoid overloading the 1734-AENT adapter, we
recommend that you set RPI no less than 10 ms for rack
connections and 50 ms for direct connections.

Allen-Bradley Rockwell Automation 1734-AENT Specifications

General

Model	1734-AENT
Category	Network Hardware
Type	EtherNet/IP Adapter
Ethernet Ports	2
IP Addressing	Static or DHCP
Network Address	Configurable via software
Mounting	DIN rail
Number of Ports	2
Port Type	RJ45
Communication Protocol	EtherNet/IP
Manufacturer	Rockwell Automation
Power Supply	24V DC
Enclosure	Open-style
