Allen-Bradley Rockwell Automation 1734-AENT User Manual

Publication 1734-UM011D-EN-P - May 2011

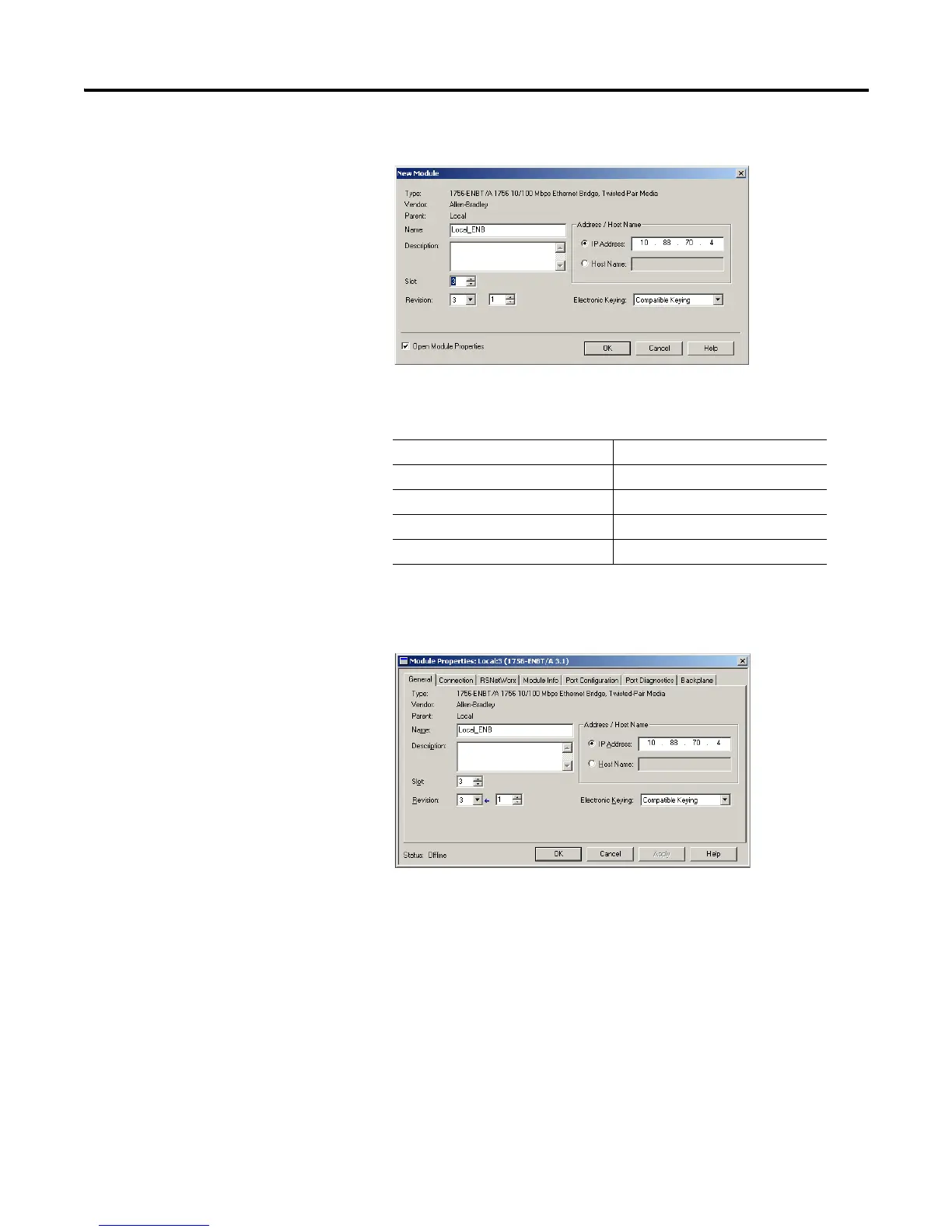

30 Configure the Adapter for Direct Connection in RSLogix 5000 Software
The New Module dialog opens.
6. Enter values for Name, IP Address, Slot, Electronic Keying, and
Revision, noting that we used the following values:
7. Click OK to accept the configuration.
The Module Properties dialog opens.
Add the POINT I/O Adapter to the I/O Configuration
Next, you must add the 1734-AENT adapter as a child of the local
1756-ENBT module.
1. In the Project dialog, right-click the local 1756-ENBT module under the
I/O Configuration folder, and select New Module from the dialog.
Name Local_ENB
IP Address 10.88.70.4
Slot 3
Electronic Keying Compatible Keying
Revision 3.1

Allen-Bradley Rockwell Automation 1734-AENT Specifications

General

Model	1734-AENT
Category	Network Hardware
Type	EtherNet/IP Adapter
Ethernet Ports	2
IP Addressing	Static or DHCP
Network Address	Configurable via software
Mounting	DIN rail
Number of Ports	2
Port Type	RJ45
Communication Protocol	EtherNet/IP
Manufacturer	Rockwell Automation
Power Supply	24V DC
Enclosure	Open-style
