Allen-Bradley Rockwell Automation 1734-AENT User Manual

Publication 1734-UM011D-EN-P - May 2011
Install the Adapter 13
Mounting Dimensions

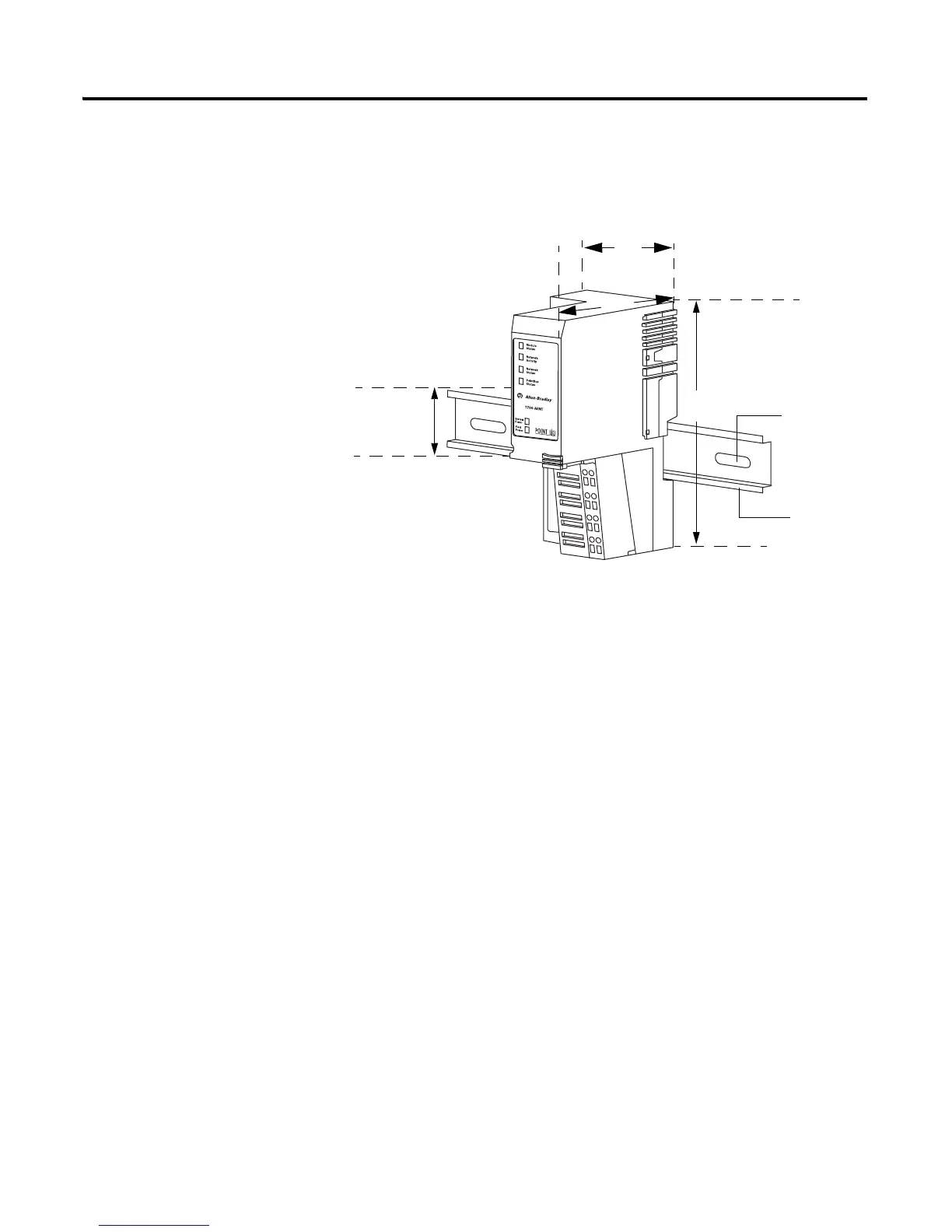

Refer to the figure for mounting dimensions.
millimeters
(inches)
A = DIN rail
B = Secure DIN rail approximately every 200 mm (7.8 in.)
133.4
(5.25)
76.5
(3.0)
43520
36.51
(1.44)
54.9
(2.16)
1734-AENT
76.2H x 54.9W x 133.4D
(3.0H x 2.16W x 5.25D)
B
A

Allen-Bradley Rockwell Automation 1734-AENT Specifications

General

Model	1734-AENT
Category	Network Hardware
Type	EtherNet/IP Adapter
Ethernet Ports	2
IP Addressing	Static or DHCP
Network Address	Configurable via software
Mounting	DIN rail
Number of Ports	2
Port Type	RJ45
Communication Protocol	EtherNet/IP
Manufacturer	Rockwell Automation
Power Supply	24V DC
Enclosure	Open-style
