Allen-Bradley Rockwell Automation 1734-AENT User Manual

Publication 1734-UM011D-EN-P - May 2011
Configure the Adapter for Direct Connection in RSLogix 5000 Software 39
Create the Ladder Program
Next create the example ladder program to test the I/O.

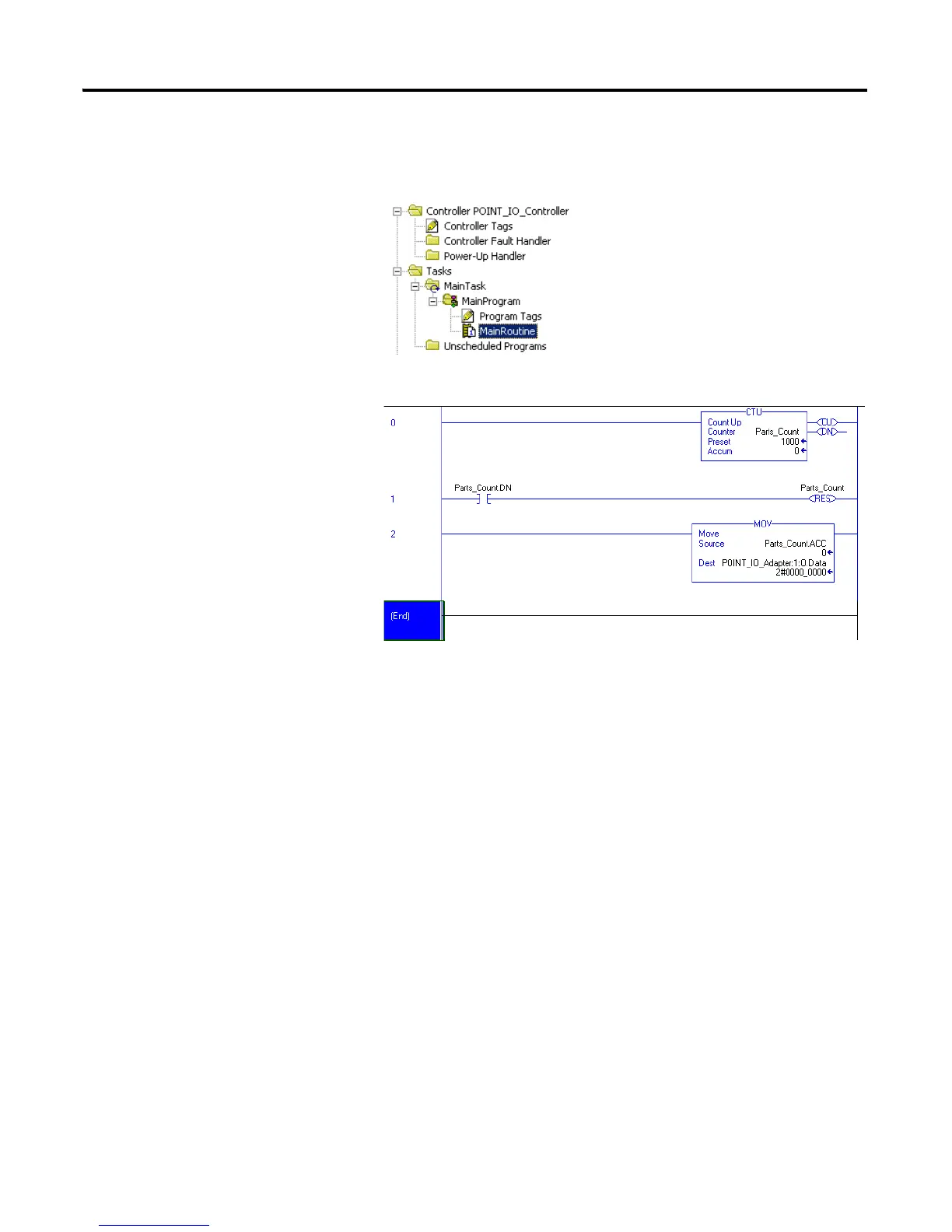

1. Double-click Main Routine under the Main Program folder.
2. Enter the following ladder program using the tags previously created.
3. Save the program.
Download the Program to
the Controller
Follow this procedure to download the program you just saved to the
ControlLogix controller.

Allen-Bradley Rockwell Automation 1734-AENT Specifications

General

Model	1734-AENT
Category	Network Hardware
Type	EtherNet/IP Adapter
Ethernet Ports	2
IP Addressing	Static or DHCP
Network Address	Configurable via software
Mounting	DIN rail
Number of Ports	2
Port Type	RJ45
Communication Protocol	EtherNet/IP
Manufacturer	Rockwell Automation
Power Supply	24V DC
Enclosure	Open-style
