38 Configure the Adapter for Direct Connection in RSLogix 5000 Software
Edit the Controller Tags
When you add modules to the I/O configuration the system creates tags for
those modules to use in the application program.
For the example application you need to add one more controller tags.

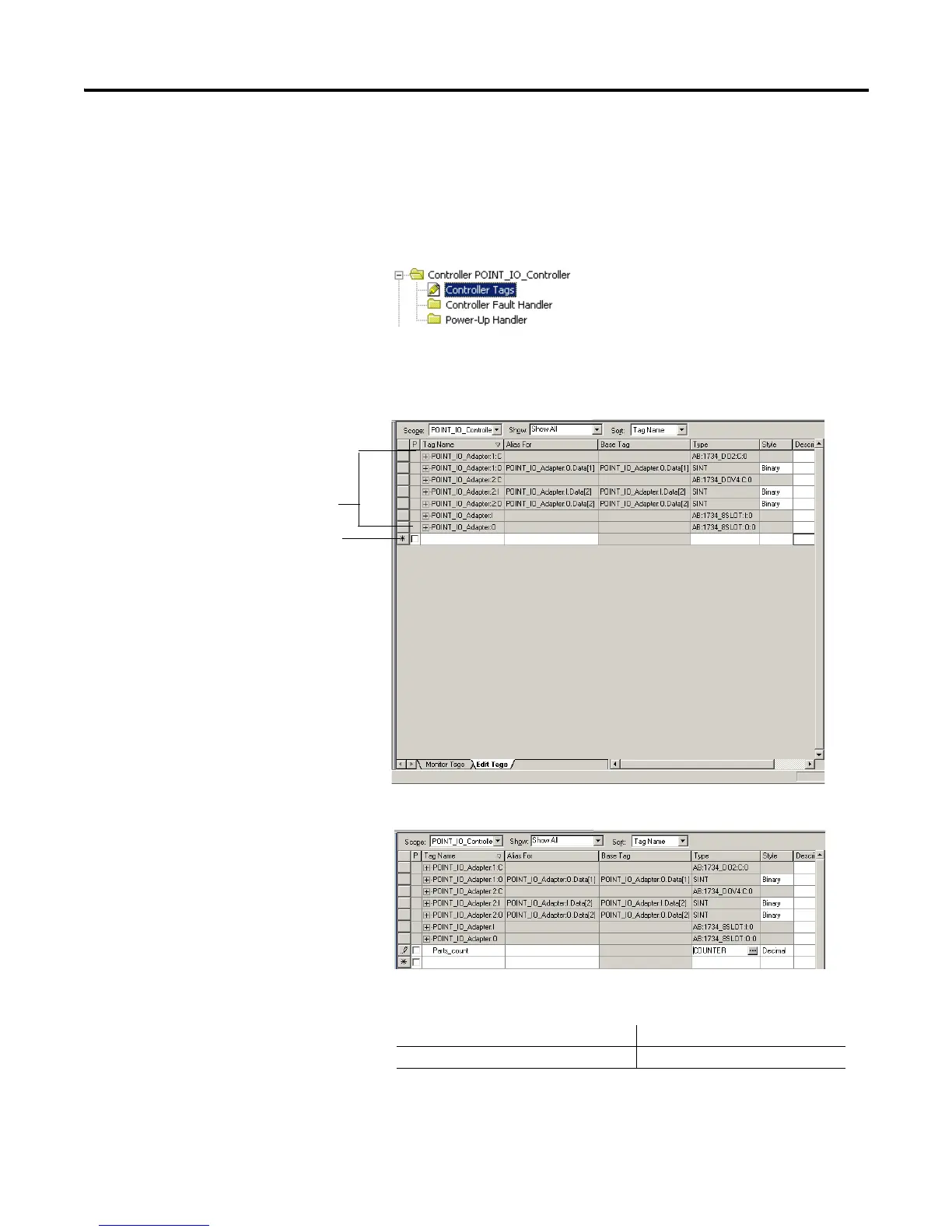

1. Double-click the Controller Tags folder in the project dialog.
The Controller Tags dialog opens. You see the tags created for the
1734-AENT adapter and digital I/O modules.
2. Click the Edit Tags tab at the bottom of the Controller Tags dialog.
3. Create the following tag:
4. Close the Controller Tags dialog.
Enter the new tag here
Tags created by the
system
Tag Type
Parts_Count Counter

Allen-Bradley Rockwell Automation 1734-AENT Specifications

General

Model	1734-AENT
Category	Network Hardware
Type	EtherNet/IP Adapter
Ethernet Ports	2
IP Addressing	Static or DHCP
Network Address	Configurable via software
Mounting	DIN rail
Number of Ports	2
Port Type	RJ45
Communication Protocol	EtherNet/IP
Manufacturer	Rockwell Automation
Power Supply	24V DC
Enclosure	Open-style
