Configure the Adapter for Direct Connection in RSLogix 5000 Software 37

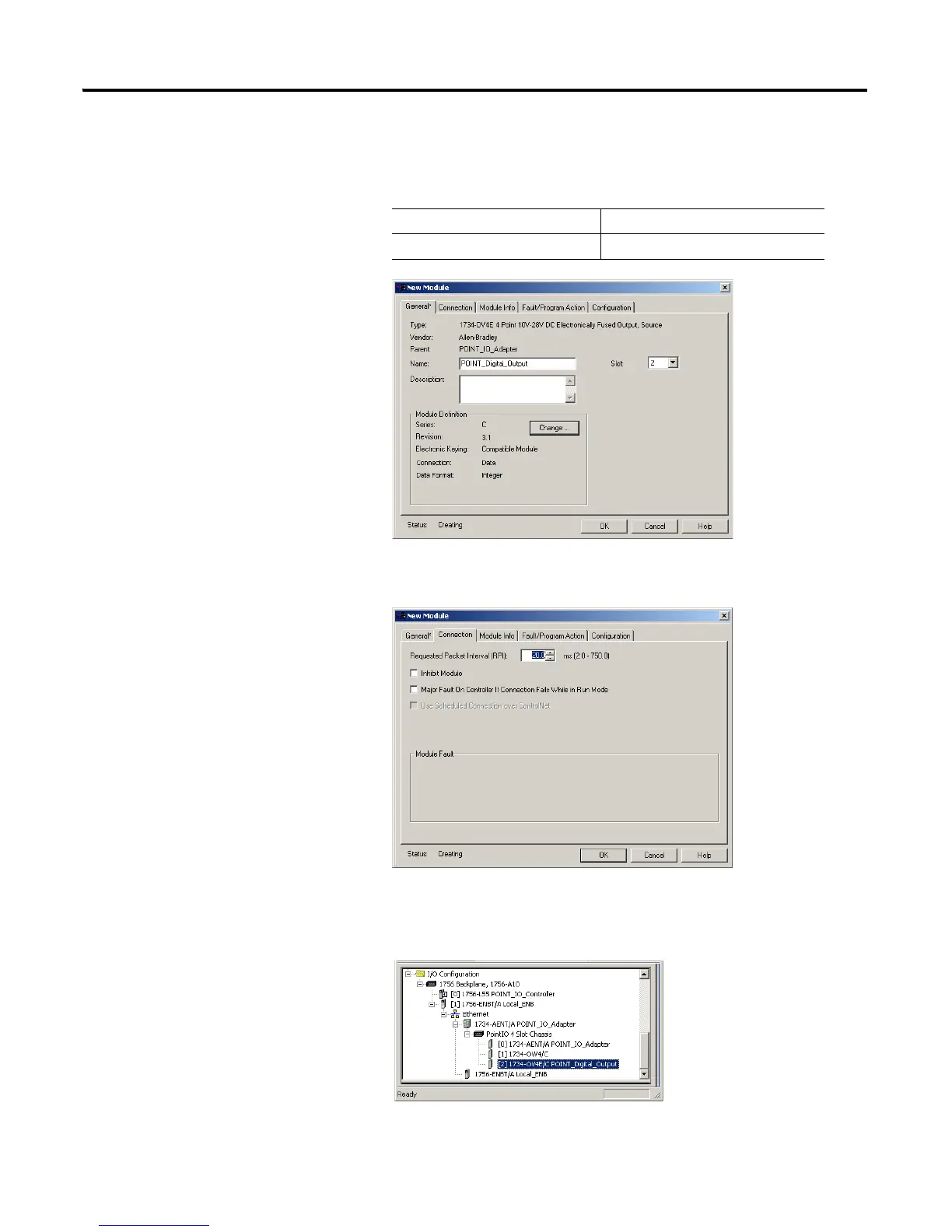

The New Module dialog opens.
5. Enter values for Name and Slot, noting we used the following.
6. On the Connection tab, enter 10 ms as the RPI for the 1734-OV4E
module.
7. Click OK.
The I/O Configuration in the Project dialog should look similar to the
following.
Name POINT_Digital_Output
Slot 2
