Allen-Bradley Rockwell Automation 1734-AENT User Manual

Publication 1734-UM011D-EN-P - May 2011
74 Adapter Web Pages

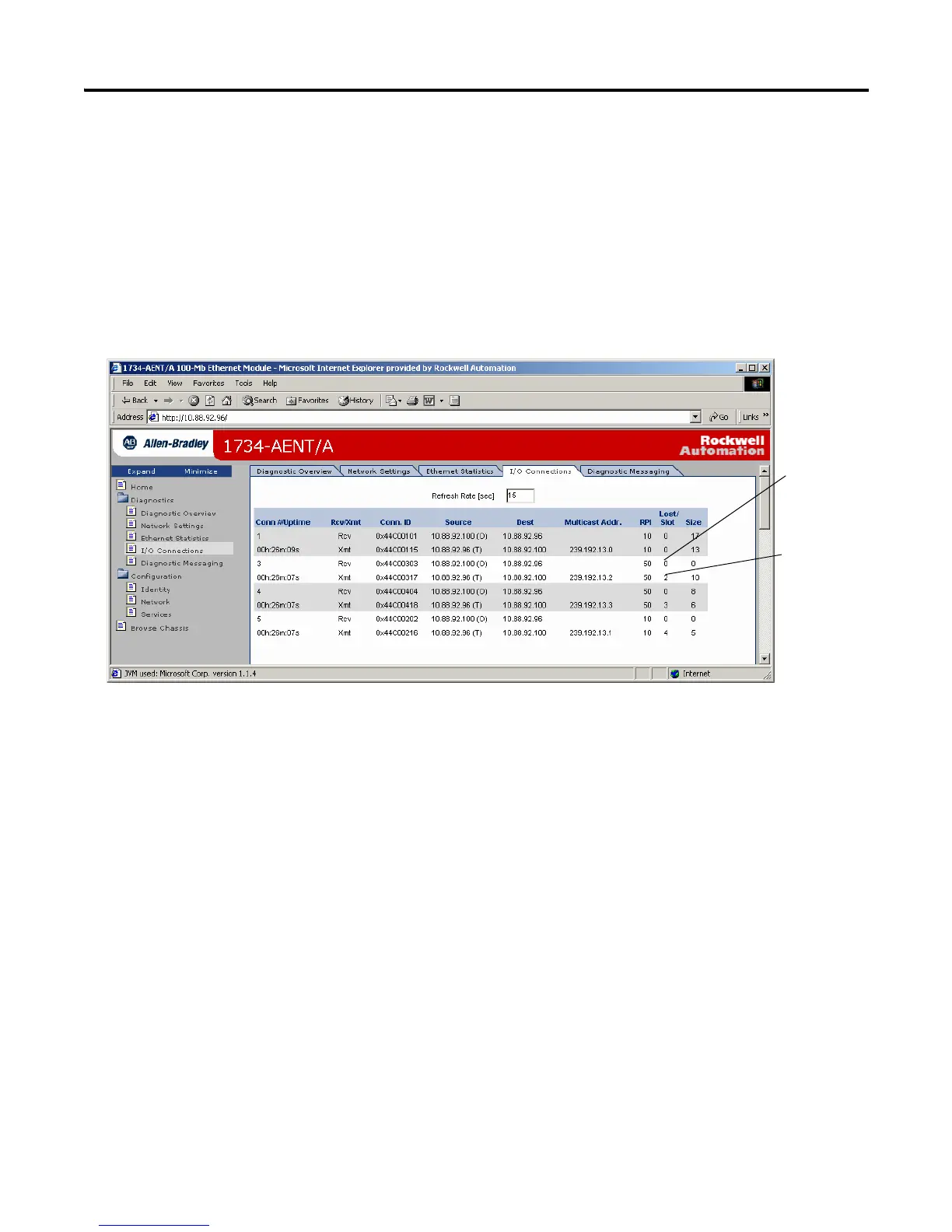

Use the I/O Connections Page
To use the I/O Connections page to view CIP I/O (Class 1) connection
information, follow this procedure.
1. From the Web page, click the I/O Connections tab at the top of the
page or panel on the left.
The I/O Connections tab opens.
2. From the I/O Connections page, view the following:
• Connection Number
•Uptime
• Receive and Transmit (Rcv/Xmt)
• Connection ID
• Source IP Address with an indication of the following
– (O) for originator
– (T) for target
• Destination IP Address
• Multicast Address
• Requested Packet Interval (RPI)
• Lost/Slot that shows the number of lost packets and the slot number
for the connection, with a slot value of 0 indicating that this is a
rack-optimized connection
• Size of data in bytes
The value for
Slot shows the
slot number of
the I/O module
this connection
is controlling.
The top value
in this column
representing
Lost shows
the number of
packets from
the source
missing.

Allen-Bradley Rockwell Automation 1734-AENT Specifications

General

Model	1734-AENT
Category	Network Hardware
Type	EtherNet/IP Adapter
Ethernet Ports	2
IP Addressing	Static or DHCP
Network Address	Configurable via software
Mounting	DIN rail
Number of Ports	2
Port Type	RJ45
Communication Protocol	EtherNet/IP
Manufacturer	Rockwell Automation
Power Supply	24V DC
Enclosure	Open-style
