Configure the Adapter for Direct Connection in RSLogix 5000 Software 43

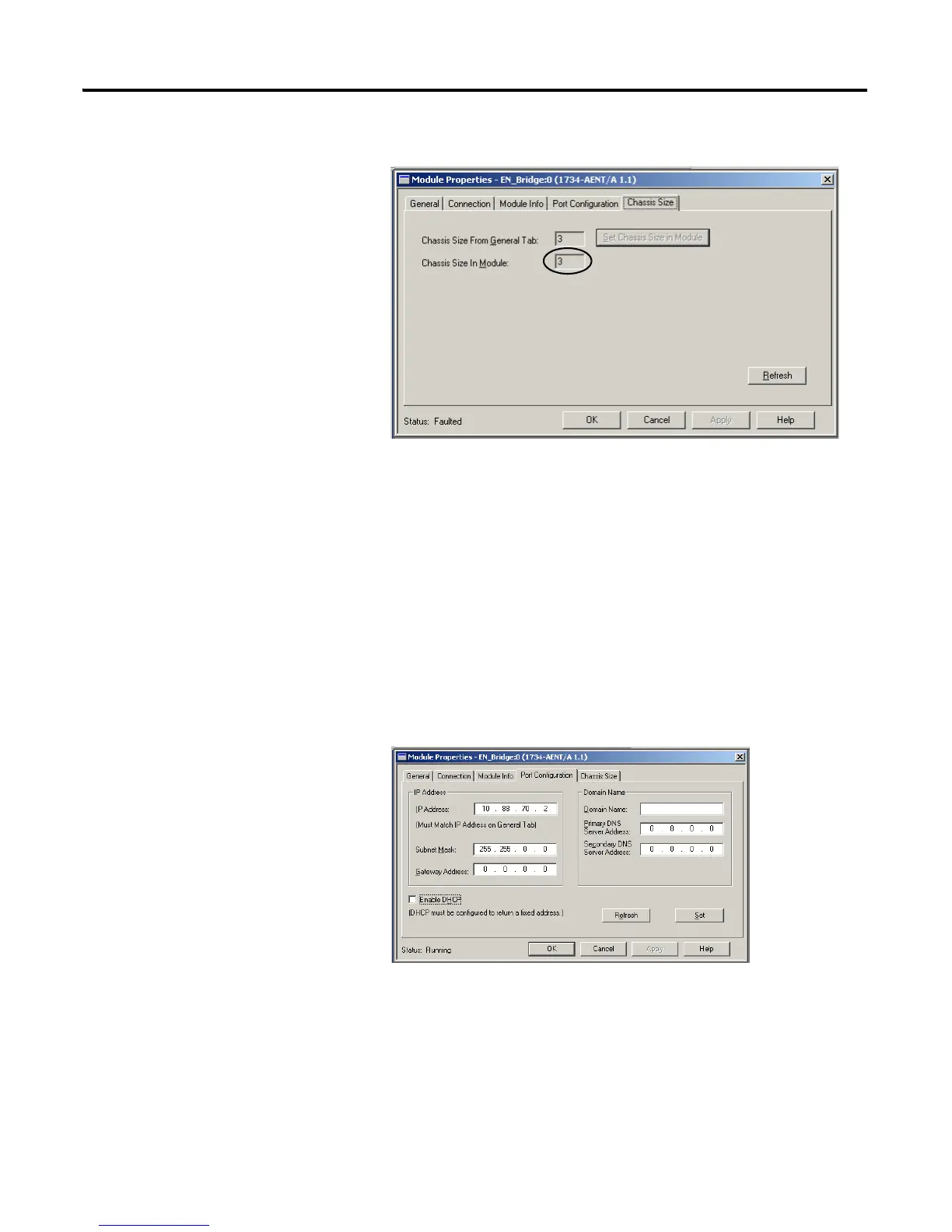

Notice the chassis size in the module is modified to 3.
9. Click OK.
At this point, your POINTBus status LED should be solid green. All
the yellow triangles in your I/O configuration should be gone.
Configure the Adapter with
Fixed IP Address
To configure the 1734-AENT adapter with a fixed IP address to prevent the
adapter from ceasing to communicate with the ControlLogix controller:
1. Click the Port Configuration tab in the 1734-AENT adapter properties
dialog.
2. Uncheck the Enable DHCP box.
3. Click the Set button.

Allen-Bradley Rockwell Automation 1734-AENT Specifications

General

Model	1734-AENT
Category	Network Hardware
Type	EtherNet/IP Adapter
Ethernet Ports	2
IP Addressing	Static or DHCP
Network Address	Configurable via software
Mounting	DIN rail
Number of Ports	2
Port Type	RJ45
Communication Protocol	EtherNet/IP
Manufacturer	Rockwell Automation
Power Supply	24V DC
Enclosure	Open-style
