Publication 1734-UM011D-EN-P - May 2011
Configure the Adapter for Direct Connection and Rack Optimization in RSLogix 5000 Software 49

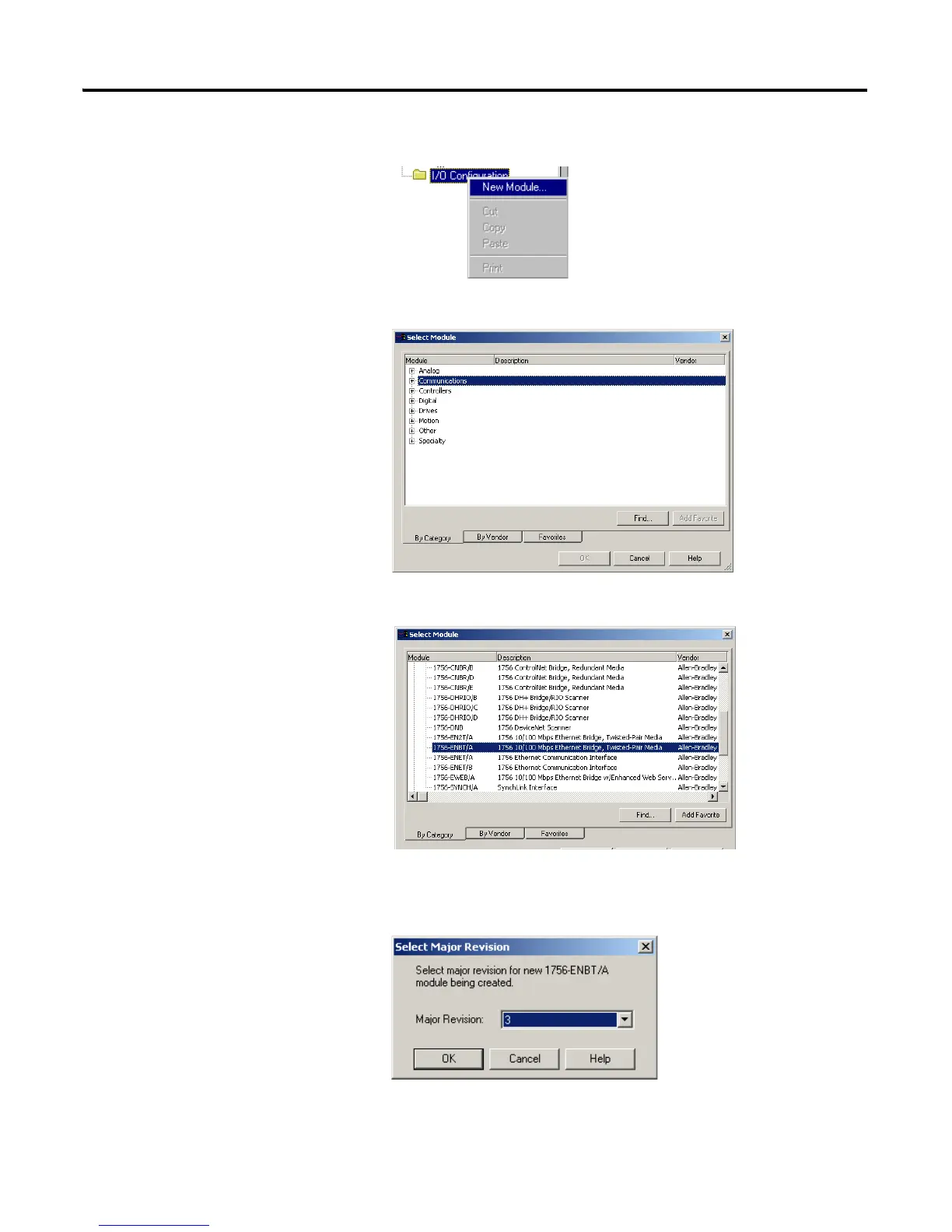

2. Click New Module.
The Select Module dialog opens.
3. Expand Communications to see the list of Communications modules.
4. Select the 1756-ENBT EtherNet/IP Bridge, and click OK.
The Select Major Revision dialog opens.
5. Select the value for Major Revision, and click OK.
