Adapter Web Pages 79

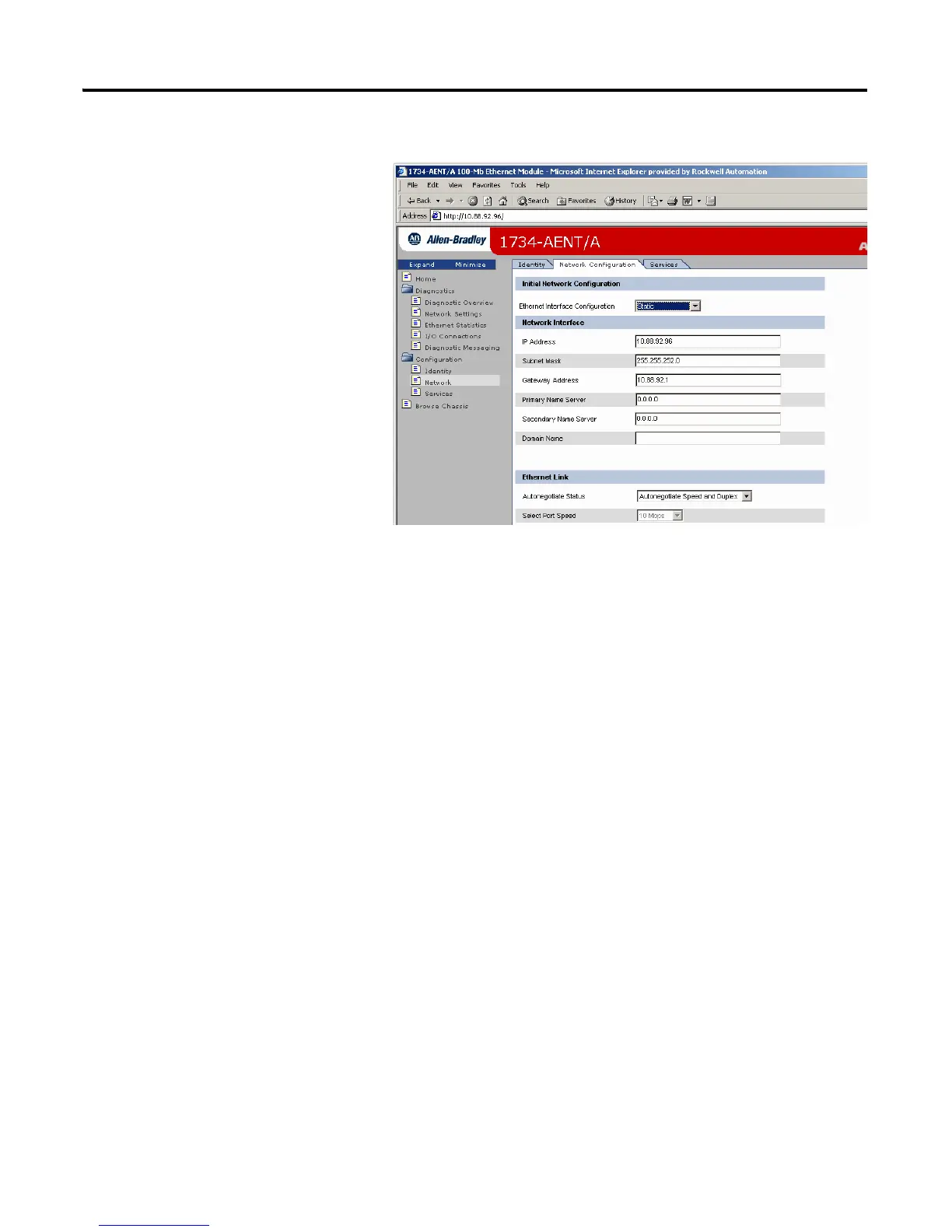

You see the Network Configuration page.
2. From the Network Configuration tab, complete these entries, noting
that values for Network Interface are disabled when DHCP is Dynamic
DHCP and port speed and duplex mode are disabled when
Autonegotiate Speed and Duplex is selected.
• For Initial Network Configuration
Ethernet Interface Configuration
– Static
– Dynamic DHCP
• For Network Interface, select from these choices.
– IP Address
– Subnet Mask
– Gateway Address
– Primary Name Server
– Secondary Name Server
– Domain Name
• For Ethernet Link, select from these choices.
Autonegotiate Status
– Autonegotiate Speed and Duplex
– Force Speed and Duplex
Select Port Speed – 10 megabits, 100 megabits
Select Duplex Mode – Half Duplex, Full Duplex
3. Click Apply Changes to save the modified values.

Allen-Bradley Rockwell Automation 1734-AENT Specifications

General

Model	1734-AENT
Category	Network Hardware
Type	EtherNet/IP Adapter
Ethernet Ports	2
IP Addressing	Static or DHCP
Network Address	Configurable via software
Mounting	DIN rail
Number of Ports	2
Port Type	RJ45
Communication Protocol	EtherNet/IP
Manufacturer	Rockwell Automation
Power Supply	24V DC
Enclosure	Open-style
