GS9790M Series Switch Installation Guide
57
4. Next attach the cable tray brackets (Figure 28).

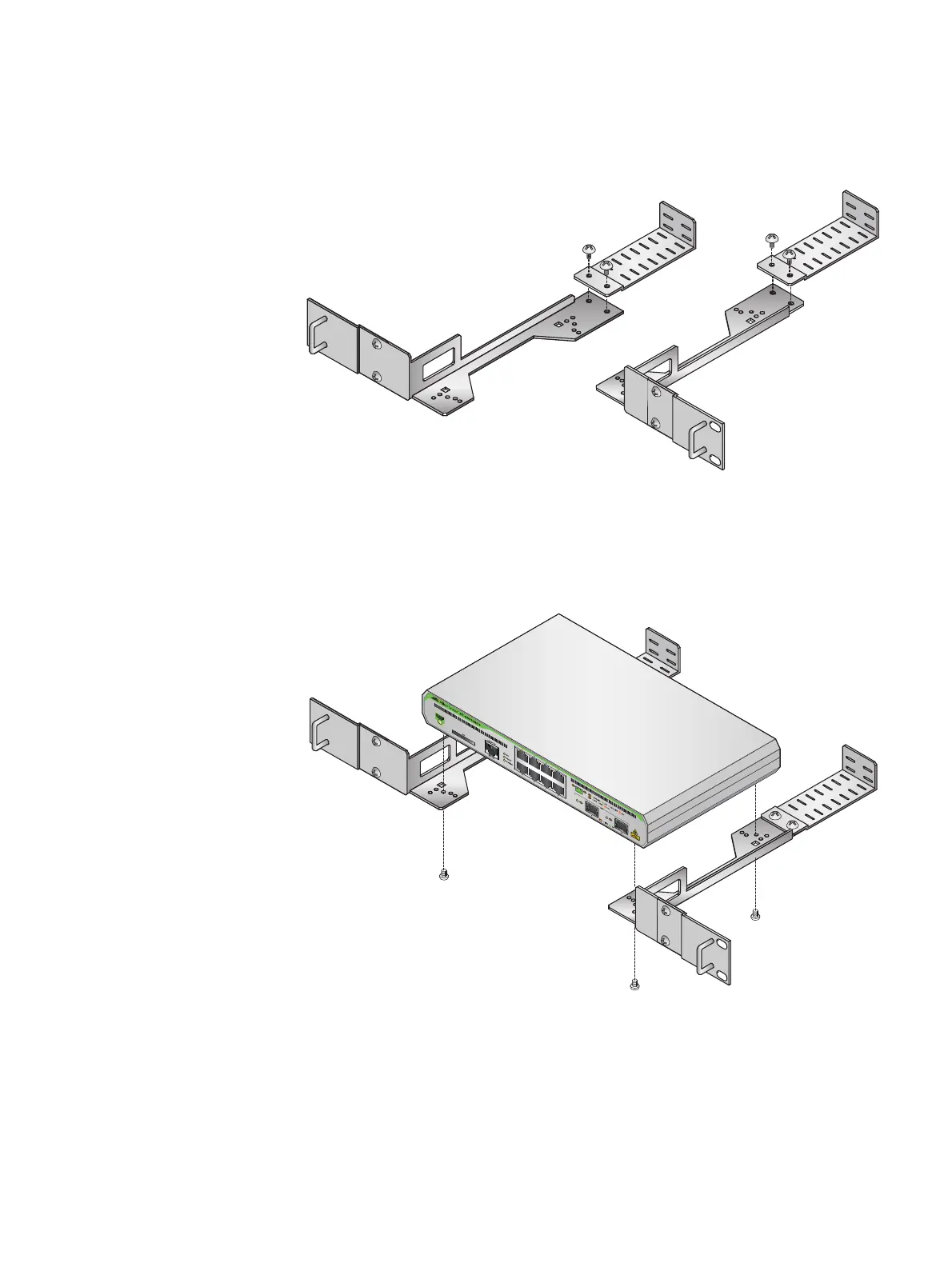

FIGURE 28. ATTACHING CABLE TRAY BRACKETS
5. Mount the GS970M/10 switch on the brackets (Figure 29). Screw it in
with the screws from the rubber feet which you removed earlier (Figure
25 on page 55).
FIGURE 29. MOUNTING A GS970M/10 SWITCH IN THE BRACKETS
