Installing a GS970M/28PS switch in an equipment rack
These instructions show you how to install a GS970M/28PS switch in an
equipment rack. A rack mount kit is included with your GS970M/28PS
switch.
To install a GS970M/28PS switch in a 19-inch equipment rack, follow
these steps:
1. If rubber feet are attached to the base of the switch, remove them
(
Figure 25 on page 55).
2. Attach two rack mount brackets to the sides of the switch using the six
provided bracket screws (Figure 36).

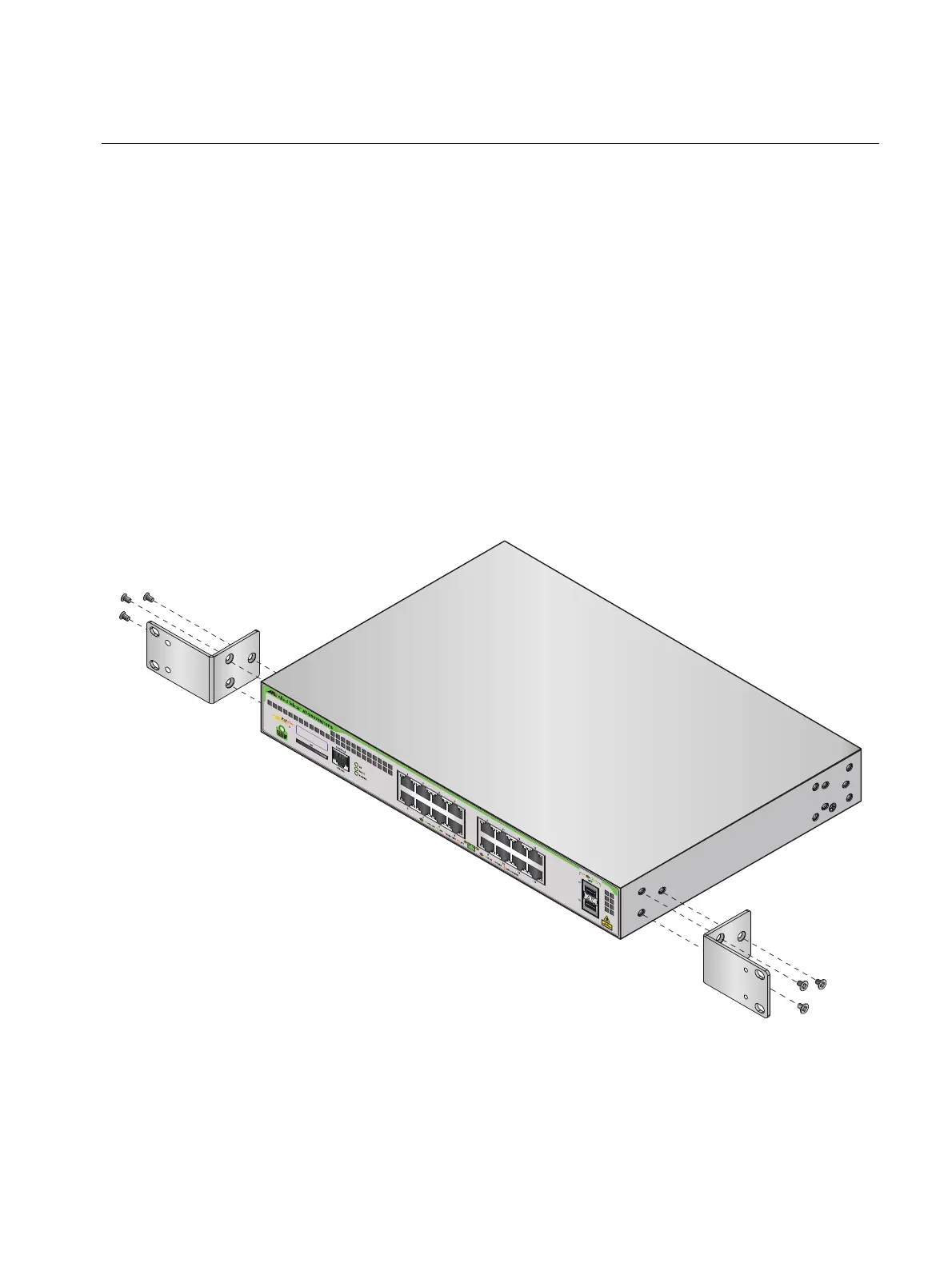

FIGURE 36. ATTACHING RACK MOUNT BRACKETS TO THE GS970M/28PS
SWITCH
