Allied Telesis CentreCOM GS970M Series - Figure 30. Mounting Ags970 M;10 Switch in the Rack; Figure 31: Securing Cables to the Cable Tray

Chapter : Chapter 2: Installation
58
6. Mount the GS970M/10 switch in a 19-inch equipment rack using the
provided spacer bracket mounts with four equipment rack screws
(Figure 30).

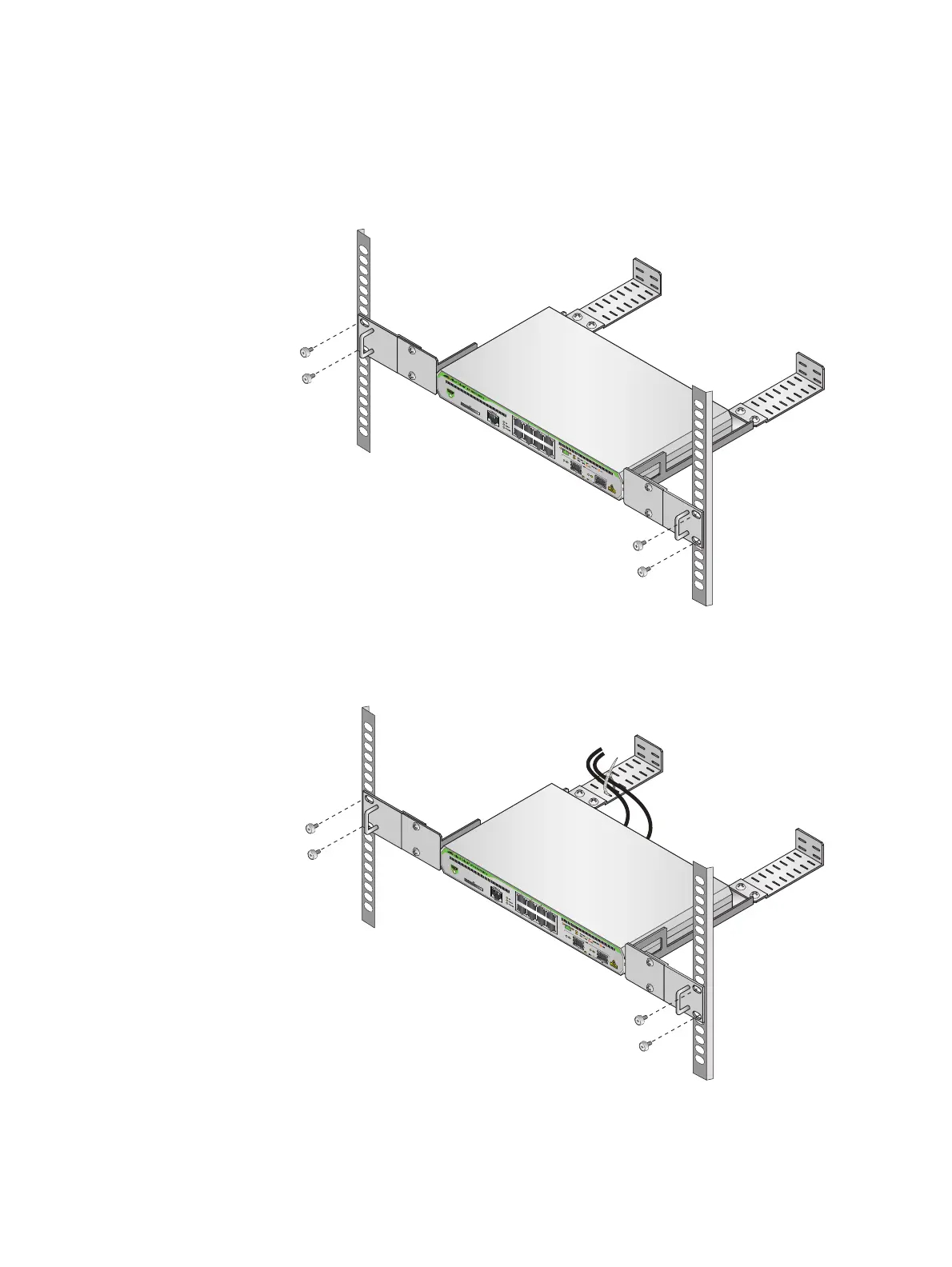

FIGURE 30. MOUNTING A GS970M/10 SWITCH IN THE RACK
7. Secure cables to the cable tray (Figure 31).
F
IGURE 31. SECURING CABLES TO THE CABLE TRAY
8.
9. Go to “Cabling the switch” on page 69
