GS9790M Series Switch Installation Guide
79
3. Position the SFP transceiver with the label facing up.
4. Gently slide the transceiver into the SFP slot until it clicks into place as
shown in Figure 50.

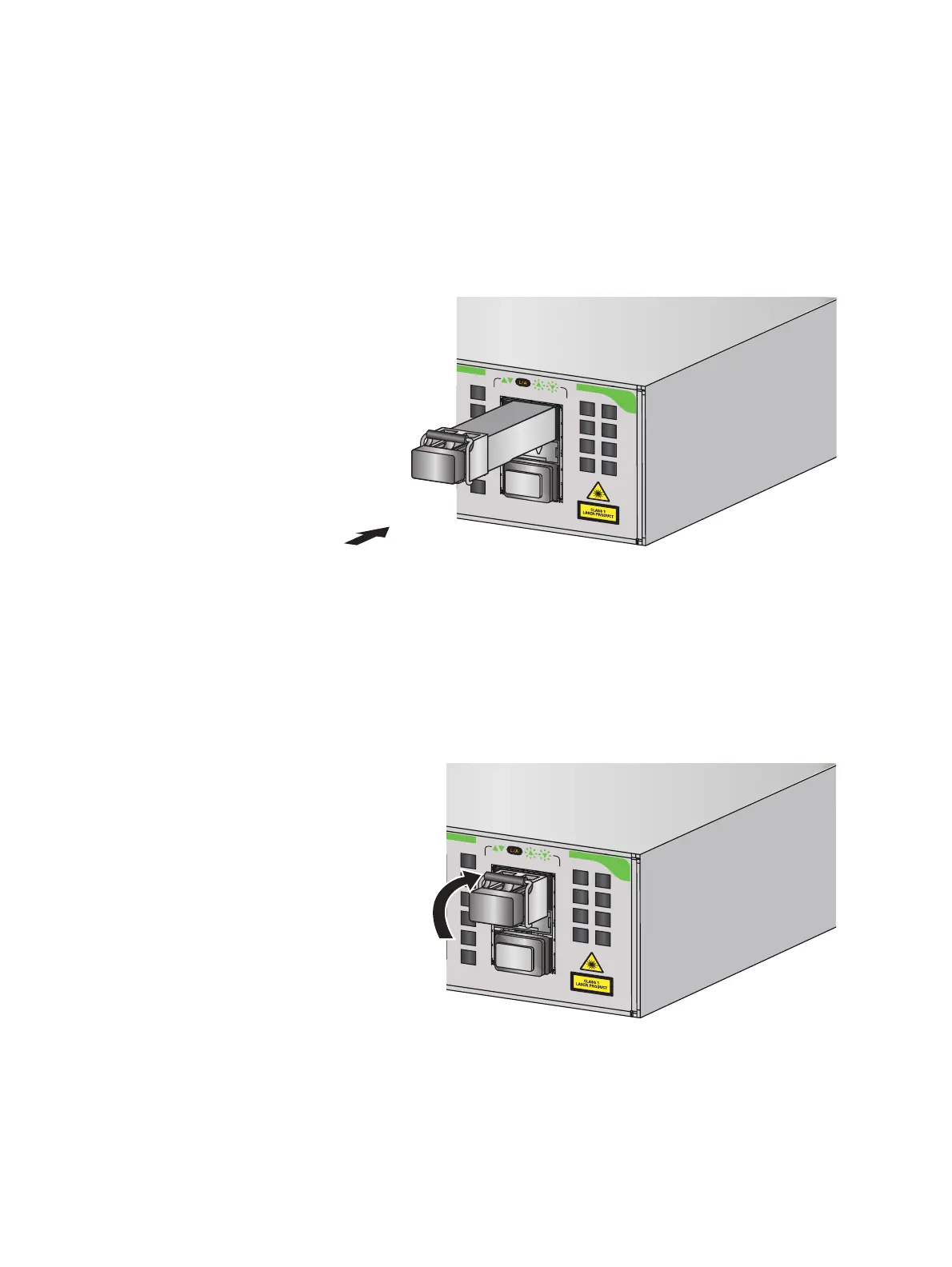

FIGURE 50. INSERTING AN SFP TRANSCEIVER INTO AN SFP SLOT
5. Verify that the handle on the transceiver is in the upright position, as
shown in
Figure 51. This secures the transceiver and prevents it from
being dislodged from the slot.
FIGURE 51. POSITIONING THE SFP HANDLE IN THE UPRIGHT POSITION
SFP
S
FP
SFP Transceiver
Handle
