Allied Telesis CentreCOM GS970M Series User Manual

Chapter : Chapter 2: Installation
60
3. Mount the GS970M/10PS switch in a 19-inch equipment rack using
four equipment rack screws (supplied with the equipment rack)
(Figure 33).

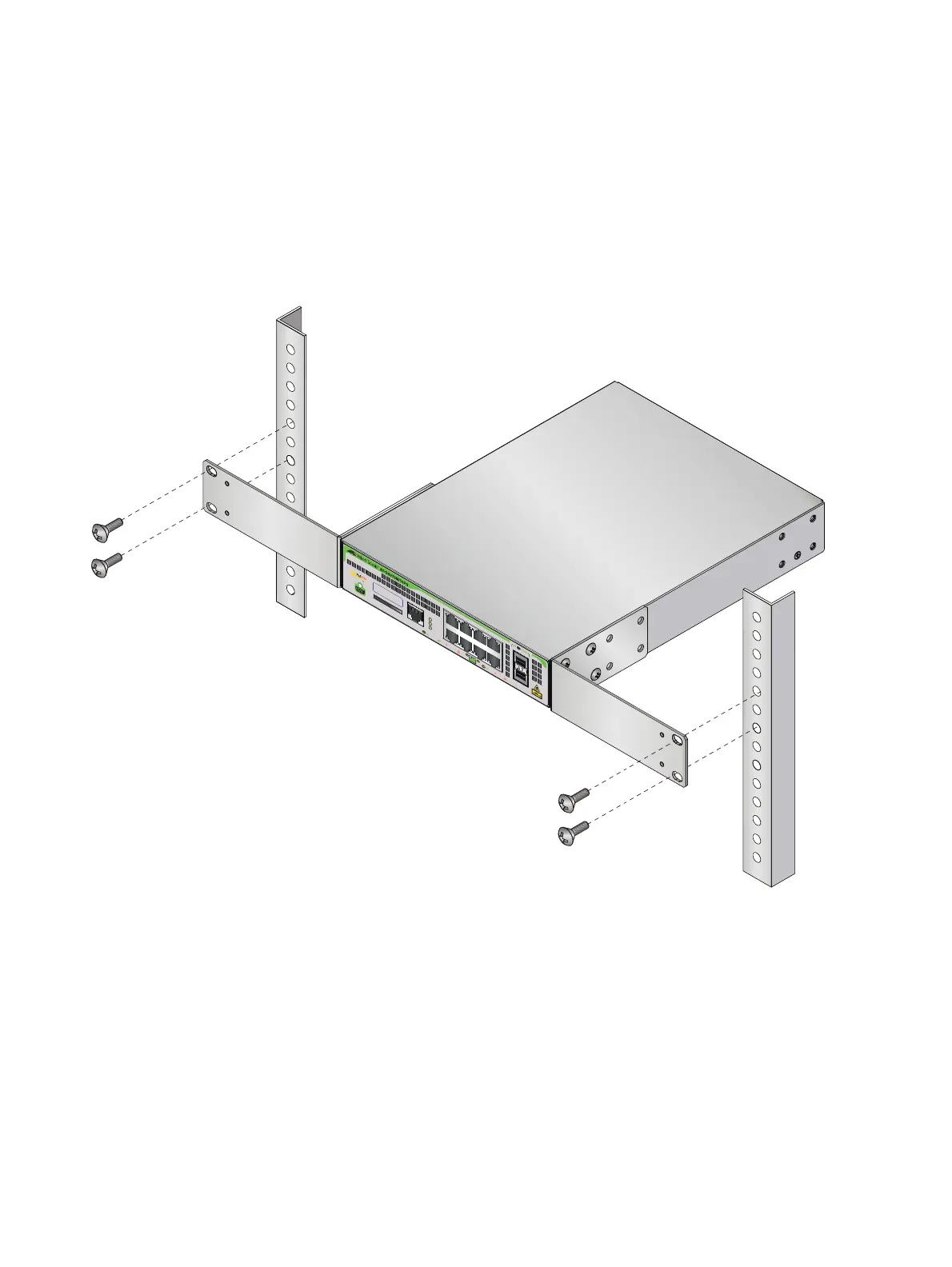

FIGURE 33. MOUNTING A GS970M/10PS SWITCH IN AN EQUIPMENT RACK
4. Go to “Cabling the switch” on page 69
